Запчасти Case 850 (394) - D38092 DOZER LIFT SECTION, (CS&S # HP1030), D52443 DOZER LIFT SECTION (CS&S # SY1030) (07) - HYDRAULIC SYSTEM

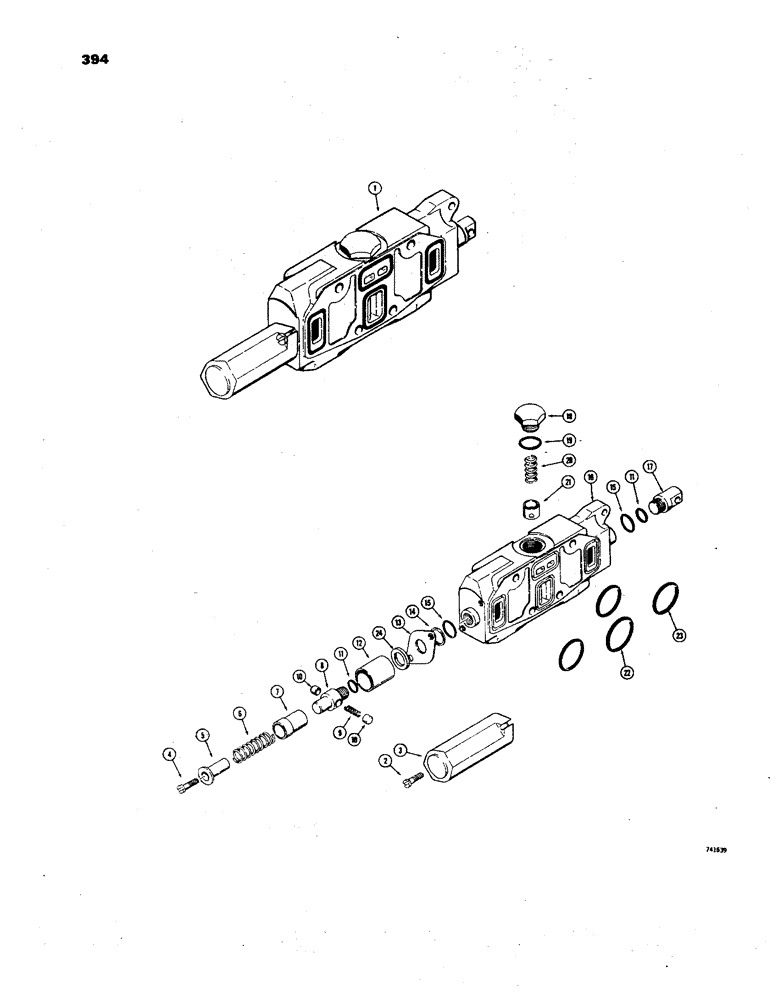

Схема запчастей Case 850 - (394) - D38092 DOZER LIFT SECTION, (CS&S # HP1030), D52443 DOZER LIFT SECTION (CS&S # SY1030) (07) - HYDRAULIC SYSTEM
20
17
9
10
7
6
8
1
19
24
23
22
12
16
11
2
11
4
13
14
21
18
5
15
15
10
3

Артикул

Название

Примечание

Количество

1

D38092

LIFT SECTION - dozer control valve, CS & S No. HP1030, Includes: Ref. 2 - 24

1шт.

1

D52443

VALVE

LIFT SECTION - dozer control valve, CS & S No. SY1030, Includes: Ref. 2 - 24

1шт.

D52479 spacer is used only in D52443 lift section.

1шт.

2

71-514

SCREW,Slotted Fil Hd, 5/16"-18 x 7/8"

FHMS - 5/16" - 18 NC x 7/8"

2шт.

3

D32459

CAP

- valve section

1шт.

4

D39711

SCREW - fillister head, special

1шт.

5

D32452

RETAINER - spring, inner

1шт.

6

D32453

SPRING

- centering

1шт.

7

D32454

RETAINER

- spring, outer

1шт.

8

D32455

RETAINER

- poppet

1шт.

9

D32450

SPRING

- poppet

1шт.

10

D32226

SPOOL

POPPET - detent

2шт.

11

D38813

O-RING

SEAL - "O" ring, 1/2" I.D. x 11/16" O.D.

2шт.

12

D32225

SLEEVE - poppet

1шт.

13

D32456

PLATE

- retaining

1шт.

14

D32457

RING

- backup

1шт.

15

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring, 1" I.D. x 1-1/4" O.D.

2шт.

16

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - valve section

1шт.

17

D32223

LUG

- spool

1шт.

18

39007

CAP

- check valve

1шт.

19

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O" ring, 1" I.D. x 1-3/8" O.D.

1шт.

20

R15308

VALVE SPRING

SPRING - check valve

1шт.

21

D45694

SPOOL

POPPET - check valve

1шт.

22

L32985

GASKET

- quad ring, 1-13/16" I.D. x 2" O.D.

1шт.

23

L35522

O-RING

SEAL - quad ring, 1-9/16" I.D. x 1-3/4" O.D.

3шт.

24

D52479

SPACER - stop

1шт.

D52479 spacer is used only in D52443 lift section.

1шт.

Выбрано товаров: 27
