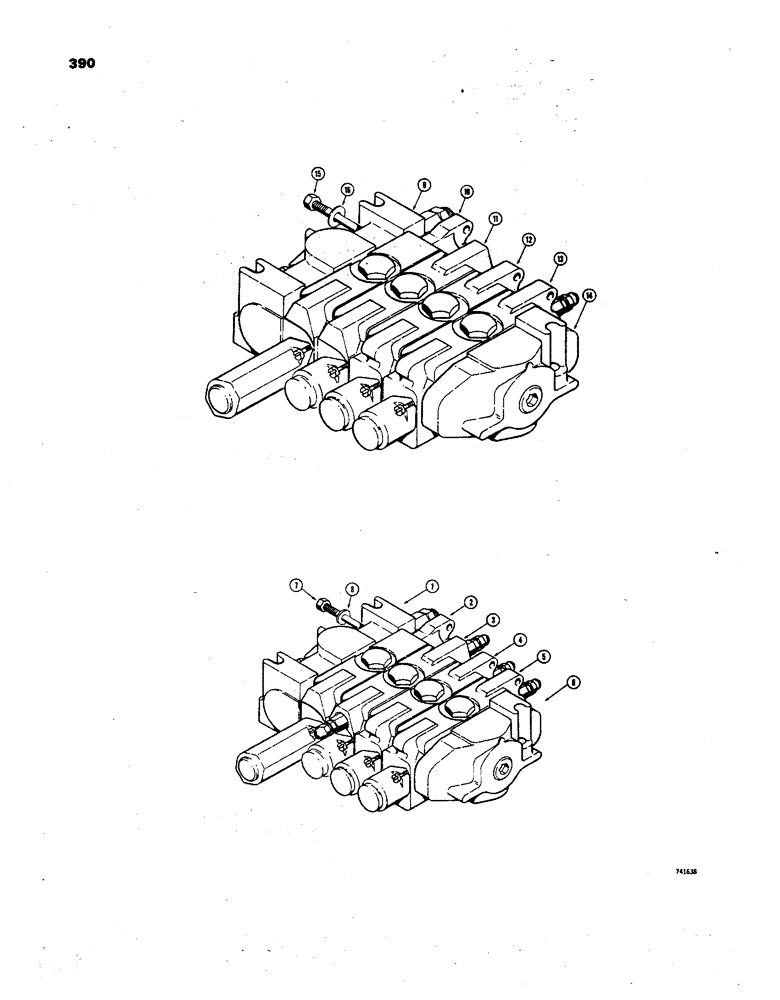

Запчасти Case 850 (390) - R33071 TILT DOZER/DUAL PULL BEHIND VALVE (4 SPOOL) (07) - HYDRAULIC SYSTEM

R33071

VALVE

- dozer control, Includes: Ref. 1 - 8

1шт.

1

D41796

VALVE

INLET SECTION - valve, CS & S #AA-100 (Parts list Figure 392)

1шт.

2

D66213

KNIFE SECTION

LIFT SECTION - valve, CS & S #WT1030 (Parts list Figure 396)

1шт.

3

D66222

TILT SECTION - valve, CS & S #WU1030-1 (Parts list Figure 416)

1шт.

4

D66221

X

DUAL PULL BEHIND SECTION - valve, CS & S #WV1030 (Parts list Figure 410)

1шт.

5

D66221

X

DUAL PULL BEHIND SECTION - valve, CS & S #WV1030 (Parts list Figure 410)

1шт.

6

D38360

VALVE

OUTLET SECTION - valve, CS & S #HL1030 (Parts list Figure 392)

1шт.

7

D36476

STUD

ASSEMBLY - valve

4шт.

8

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

R30686

control, R30686 angle tilt pitch dozer/ripper (4 spool), Includes: Ref. 9 - 16

1шт.

9

D41796

VALVE

INLET SECTION - valve, CS & S #AA100 (Parts list Figure 392), R30686 angle tilt pitch dozer/ripper (4 spool)

1шт.

10

D66213

KNIFE SECTION

LIFT SECTION - valve, CS & S #WT1030 (Parts list Figure 396), R30686 angle tilt pitch dozer/ripper (4 spool)

1шт.

11

D66212

VALVE

TILT SECTION - valve, CS & S #WM1030 (Parts list Figure 412), R30686 angle pitch dozer/ripper (4 spool)

1шт.

12

D66212

VALVE

ANGLE AND PITCH SECTION - valve, CS & S #WM1030 (Parts list Figure 412), R30686 tilt dozer/ripper (4 spool)

1шт.

13

D66221

X

RIPPER SECTION - valve, CS & S #WV1030 (Parts list Figure 410), R30686 angle tilt pitch dozer/ (4 spool)

1шт.

14

D38360

VALVE

OUTLET SECTION - valve, CS & S HL1030 (Parts list Figure 392), R30686 angle tilt pitch dozer/ripper (4 spool)

1шт.

15

D36476

STUD

ASSEMBLY - valve, R30686 angle tilt pitch dozer/ripper (4 spool)

4шт.

16

195-33

WASHER,1/2"

- plain (), R30686 angle tilt pitch dozer/ripper (4 spool) 1/2"

4шт.
