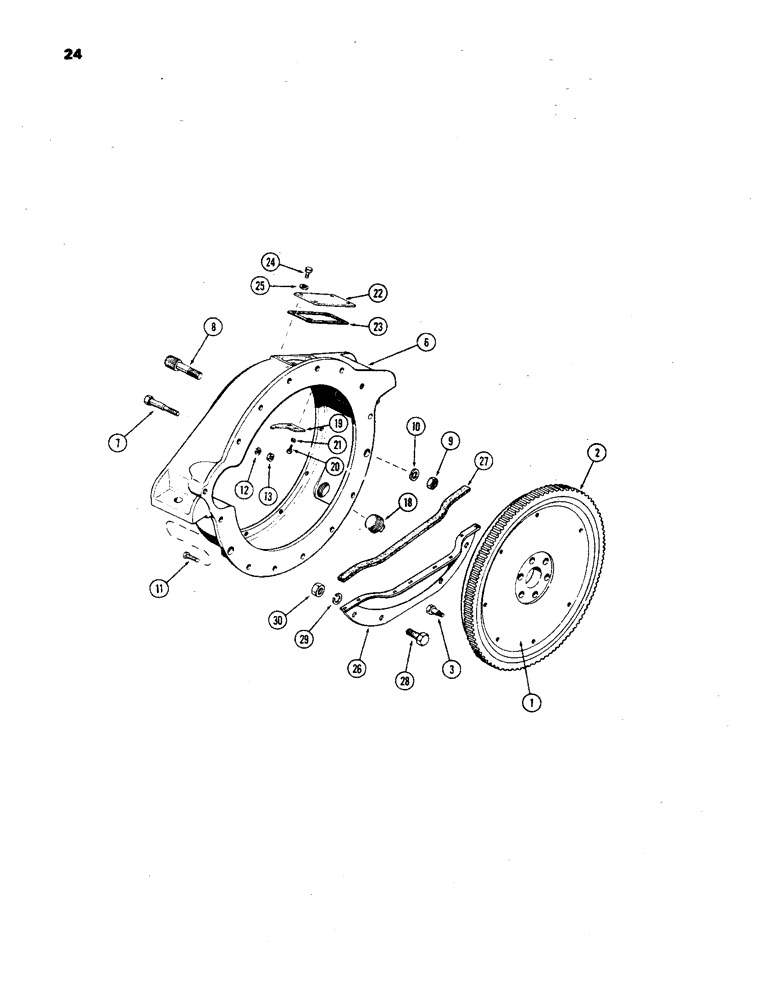

Запчасти Case 850 (024) - FLYWHEEL AND HOUSING, (301B) DIESEL ENGINE (01) - ENGINE

1

A60508

FLYWHEEL

ASSY., Includes: Ref. 2

1шт.

2

A27920

GEAR

- ring, flywheel (137 teeth)

1шт.

3

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

- flywheel (5/8 x 1-1/2" N.F. hex.)

6шт.

6

A21040

HOUSING

- flywheel

1шт.

7

A61040

STEP BOLT

BOLT - dowel, housing to block, 1/2" N.C. x 3"

1шт.

7

A61041

STEP BOLT

BOLT - dowel, housing to block, 1/2" N.C. x 2-7/16"

1шт.

8

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

- 3/4 x 3" N.C., 12 pt. hd.

2шт.

9

25-1012

NUT,3/4"-10, G5

2шт.

10

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

11

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

1шт.

11

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

3шт.

11

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2 x 2-1/2" N.C. hex.

2шт.

12

92-8

LOCK WASHER,1/2"

8шт.

13

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.

18

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - housing, 1-1/4" P.T., sq. hd.

1шт.

19

A22586

INDICATOR

POINTER - flywheel timing

1шт.

20

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Pointer Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

22

A22584

COVER

PLATE - flywheel housing hand hole

1шт.

23

A22585

GASKET

- hand hole plate

1шт.

24

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Plate Hex, 5/16"-18 x 5/8", G5, Full Thd

4шт.

25

92-5

LOCK WASHER,5/16"

4шт.

26

A64462

GUARD

SHIELD - dust, flywheel housing (Replaces A57143)

1шт.

27

A57144

GASKET

- dust shield

1шт.

28

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

Shield Hex, 1/2"-13 x 1 3/8", G5, Full Thd

4шт.

29

92-8

LOCK WASHER,1/2"

5шт.

30

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.
