Запчасти Case 850 (388) - D48101 TILT DOZER/DUAL PULL BEHIND VALVE (4 SPOOL), D48101 ANGLE TILT RIPPER VALVE (4 SPOOL) (07) - HYDRAULIC SYSTEM

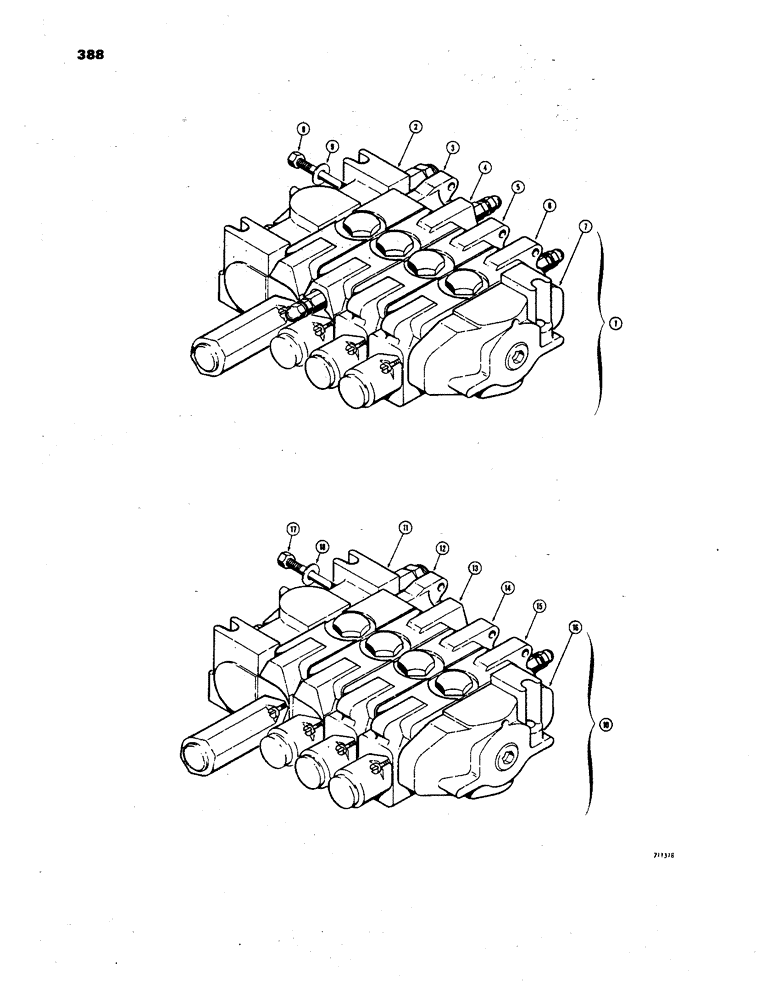

Схема запчастей Case 850 - (388) - D48101 TILT DOZER/DUAL PULL BEHIND VALVE (4 SPOOL), D48101 ANGLE TILT RIPPER VALVE (4 SPOOL) (07) - HYDRAULIC SYSTEM
13
17
12
5
3
14
7
16
18
8
2
10
4
1
9
15
11
6

Артикул

Название

Примечание

Количество

1

D48101

VALVE

- dozer control, Includes: Ref. 2 - 9

1шт.

2

D41796

VALVE

INLET SECTION - valve, CS & S #AA100 (Parts list Figure 392)

1шт.

3

D38092

LIFT SECTION - valve, CS & S #HP1030 (Parts list Figure 394) Use D52443 for service

1шт.

3

D52443

VALVE

LIFT SECTION - valve, CS & S #SY1030 (Parts list Figure 394)

1шт.

4

D42432

NO LONGER SERVICED

TILT SECTION - valve, CS & S #A35-XDA1372-3-2 (Parts list Figure 414)

1шт.

5

D32123

KNIFE SECTION

ANGLE OR DUAL PULL BEHIND - valve, CS & S #A35-80 (Parts list Figure 406)

1шт.

6

D41533

VALVE

RIPPER SECTION - valve, CS & S #A35-XDA1384 (Parts list Figure 408)

1шт.

7

D38360

VALVE

OUTLET SECTION - valve, CS & S #1030 (Parts list Figure 392)

1шт.

8

D36476

STUD

ASSEMBLY - valve

4шт.

9

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

10

R24120

VALVE - dozer control, 4 spool, angle tilt pitch ripper, Includes: Ref. 11 - 18

1шт.

11

D41796

VALVE

INLET SECTION - valve, CS & S# AA-100 (Parts list Figure 392), R24120 angle tilt pitch dozer/ripper (4 spool)

1шт.

12

D52443

VALVE

LIFT SECTION - valve, CS & S #SY-1030 (Parts list Figure 394), R24120 angle tilt pitch dozer/ripper (4 spool)

1шт.

13

D32123

KNIFE SECTION

TILT SECTION - valve, CS & S #A35-80 (Parts list Figure 406), R24120 angle pitch dozer/ripper (4 spool)

1шт.

14

D32123

KNIFE SECTION

ANGLE AND PITCH SECTION - valve, CS & S #A35-80 (Parts list Figure 406), R24120 tilt dozer/ripper (4 spool)

1шт.

15

D41533

VALVE

RIPPER SECTION - valve, CS & S #A35-XDA-1384 (Parts list Figure 408), R24120 angle tilt pitch dozer/ (4 spool)

1шт.

16

D38360

VALVE

OUTLET SECTION - valve, CS & S #HL-1030 (Parts list Figure 392), R24120 angle tilt pitch dozer/ripper (4 spool)

1шт.

17

D36476

STUD

ASSEMBLY - valve, R24120 angle tilt pitch dozer/ripper (4 spool)

4шт.

18

195-33

WASHER,1/2"

- plain (), R24120 angle tilt pitch dozer/ripper (4 spool) 1/2"

4шт.

Выбрано товаров: 19
