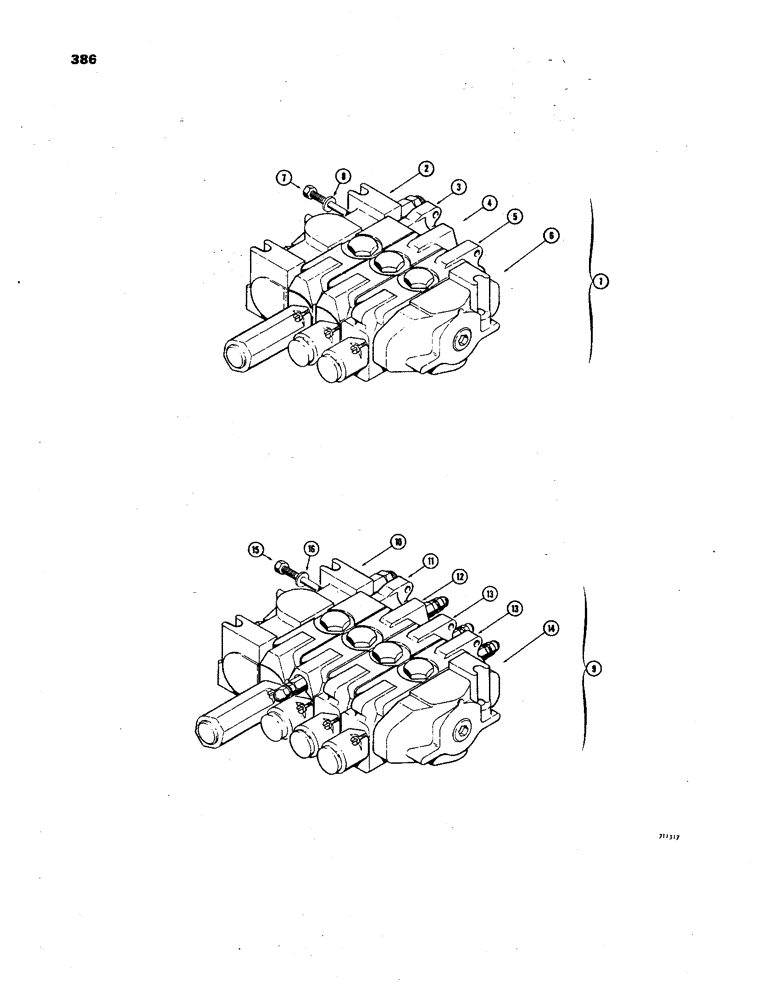

Запчасти Case 850 (386) - R24119 ANGLE TILT PITCH DOZER VALVE (3 SPOOL) (07) - HYDRAULIC SYSTEM

1

R24119

VALVE

- dozer control, 3 spool, Includes: Ref. 2 - 8

1шт.

2

D41796

VALVE

INLET SECTION - valve, CS & S #AA100 (Parts list Figure 392)

1шт.

3

D52443

VALVE

LIFT SECTION - valve, CS & S #SY1030 (Parts list Figure 394)

1шт.

4

D32123

KNIFE SECTION

TILT SECTION - valve, CS & S #A35-80 (Parts list Figure 406)

1шт.

5

D32123

KNIFE SECTION

ANGLE AND PITCH SECTION - valve, CS & S #A35-80 (Parts list Figure 406)

1шт.

6

D38360

VALVE

OUTLET SECTION - valve, CS & S #HL1030 (Parts list Figure 392

1шт.

7

R20429

STUD

ASSEMBLY - valve

4шт.

8

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

9

R24130

VALVE

- dozer control, 4 spool, dual pull behind, Includes: Ref. 10 - 16

1шт.

10

D41796

VALVE

INLET SECTION - CS & S #AA-100 (Parts list Figure 392), R24130 tilt dozer/dual pull behind valve (4 spool)

1шт.

11

D52443

VALVE

LIFT SECTION - CS & S #SY1030 (Parts list Figure 394), R24130 tilt dozer/dual pull behind valve (4 spool)

1шт.

12

D42432

NO LONGER SERVICED

TILT SECTION - CS & S #XDA-137-3-2 (Parts list Figure 414), R24130 tilt dozer/dual pull behind valve (4 spool)

1шт.

13

D41533

VALVE

DUAL PULL BEHIND SECTION - valve, CS & S #XDA-1384 (Parts list Figure 408), R24130 tilt dozer/ valve (4 spool)

2шт.

14

D38360

VALVE

OUTLET SECTION - valve, CS & S #HL-1030 (Parts list Figure 392), R24130 tilt dozer/dual pull behine valve (4 spool)

1шт.

15

R20429

STUD

ASSEMBLY - valve, R24130 tilt dozer/dual pull behind (4 spool)

4шт.

16

195-33

WASHER,1/2"

- plain (), R24130 tilt dozer/dual pull behind valve (4 spool) 1/2"

4шт.
