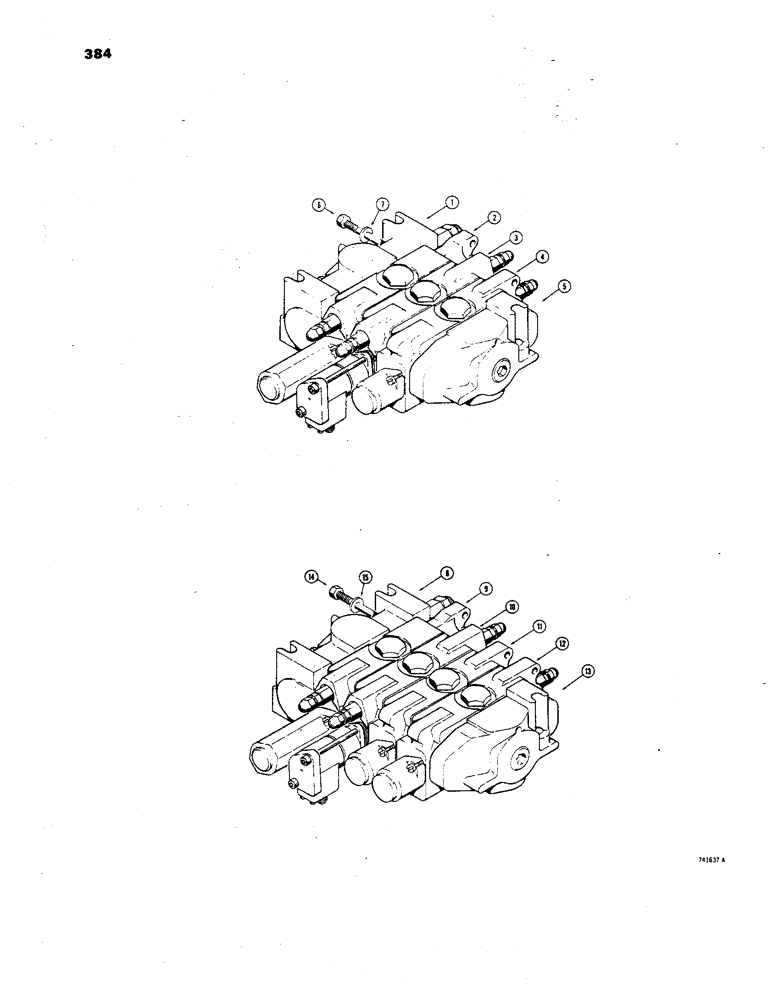

Запчасти Case 850 (384) - R33068 LOADER/RIPPER OR 4-IN-1 BUCKET VALVE (3 SPOOL) (07) - HYDRAULIC SYSTEM

R33068

VALVE

- loader control, Includes: Ref. 1 - 7

1шт.

1

D41796

VALVE

INLET SECTION - valve, CS & S #AA-100 (Parts list Figure 392)

1шт.

2

D66224

KNIFE SECTION

LIFT SECTION - valve, CS & S #WN1030 (Parts list Figure 400)

1шт.

3

D66223

X

DUMP SECTION - valve, CS & S WU1030-2 (Parts list Figure 404)

1шт.

4

D66221

X

RIPPER OR 4-IN-1 BUCKET SECTION - valve, CS & S #WV1030-1 (Parts list Figure 410)

1шт.

5

D38360

VALVE

OUTLET SECTION - valve, CS & S #1030 (Parts list Figure 392)

1шт.

6

R20429

STUD

ASSEMBLY - valve

4шт.

7

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

R33069

VALVE - loader control, ripper 4-in-1 bucket (4 spool), Includes: Ref. 8 - 15

1шт.

8

D41796

VALVE

INLET SECTION - valve, CS & S #AA100 (Parts list Figure 392), R33069 loader/ ripper 4-in-1 bucket (4 spool)

1шт.

9

D66224

KNIFE SECTION

LIFT SECTION - valve, CS & S #WN1030 (Parts list Figure 400), R33069 loader/ ripper 4-in-1 bucket (4 spool)

1шт.

10

D66223

X

DUMP SECTION - valve, CS & S #WU1030-2 (Parts list Figure 404), R33069 loader/ ripper 4-in-1 bucket (4 spool)

1шт.

11

D66212

VALVE

SECTION - valve, CS & S #WM1030 (Parts list Figure 412), R33069 loader/ ripper 4-in-1 bucket (4 spool)

1шт.

12

D66221

X

RIPPER SECTION - valve, CS & S #WV1030-1 (Parts list Figure 410), R33069 loader/ 4-in-1 bucket (4 spool)

1шт.

13

D38360

VALVE

OUTLET SECTION - valve, CS & S #1030 (Parts list Figure 392), R33069 loader/ ripper 4-in-1 bucket (4 spool)

1шт.

14

D36476

STUD

ASSEMBLY - valve, R33069 loader/ ripper 4-in-1 bucket (4 spool)

4шт.

15

195-33

WASHER,1/2"

- plain (), R33069 loader/ ripper 4-in-1 bucket valve(4 spool) 1/2"

4шт.
