Запчасти Case 850 (382) - R33070 TILT DOZER/RIPPER VALVE (3 SPOOL), R33072 ANGLE TILT PITCH DOZER VALVE ( 3 SPOOL) (07) - HYDRAULIC SYSTEM

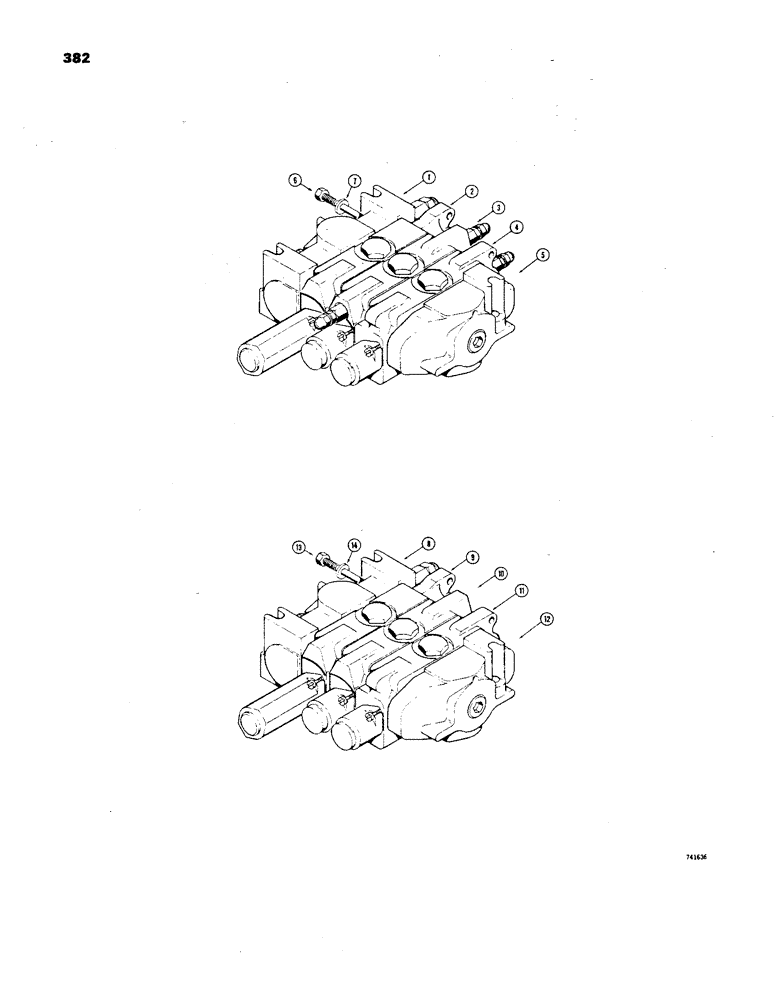

Схема запчастей Case 850 - (382) - R33070 TILT DOZER/RIPPER VALVE (3 SPOOL), R33072 ANGLE TILT PITCH DOZER VALVE ( 3 SPOOL) (07) - HYDRAULIC SYSTEM
6
9
14
1
11
4
7
13
12
2
5
10
8
3

Артикул

Название

Примечание

Количество

R33070

VALVE

- dozer control, Includes: Ref. 1 - 7

1шт.

1

D41796

VALVE

INLET SECTION - valve, CS & S #AA-100 (Parts list Figure 392)

1шт.

2

D66213

KNIFE SECTION

LIFT SECTION - valve, CS & S #WT1030 (Parts list Figure 396)

1шт.

3

D66222

TILT SECTION - valve, CS & S WU1030-1 (Parts list Figure 416)

1шт.

4

D66221

X

RIPPER SECTION - vlave, CS & S #WV1030-1 (Parts list Figure 410)

1шт.

5

D38360

VALVE

OUTLET SECTION - valve, CS & S #HL1030 (Parts list Figure 392)

1шт.

6

R20429

STUD

ASSEMBLY - valve

4шт.

7

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

R33072

VALVE

- dozer control, angel tilt pitch (3 spool), Includes: Ref. 8 - 14

1шт.

8

D41796

VALVE

INLET SECTION - CS & S #AA100 (Parts list Figure 392), R33072 angle tilt pitch dozer valve (3 spool)

1шт.

9

D66213

KNIFE SECTION

LIFT SECTION - CS & S #WT1030 (Parts list Figure 396), R33072 angle tilt pitch dozer valve (3 spool)

1шт.

10

D66212

VALVE

SECTION - CS & S #WM1030 (Parts list Figure 412), R33072 angle tilt pitch dozer valve (3 spool)

1шт.

11

D66212

VALVE

SECTION - valve, CS & S #WM1030 (Parts list figure 410), R33072 angle tilt pitch dozer valve (3 spool)

1шт.

12

D38360

VALVE

OUTLET SECTION - CS & S HL1030 (Parts list Figure 392), R33072 angle tilt pitch dozer valve (3 spool)

1шт.

13

R20429

STUD

ASSEMBLY - R33072 angle tilt pitch dozer valve (3 spool)

4шт.

14

195-33

WASHER,1/2"

- plain (), R33072 angle tilt pitch dozer valve (3 spool) 1/2"

4шт.

Выбрано товаров: 16
