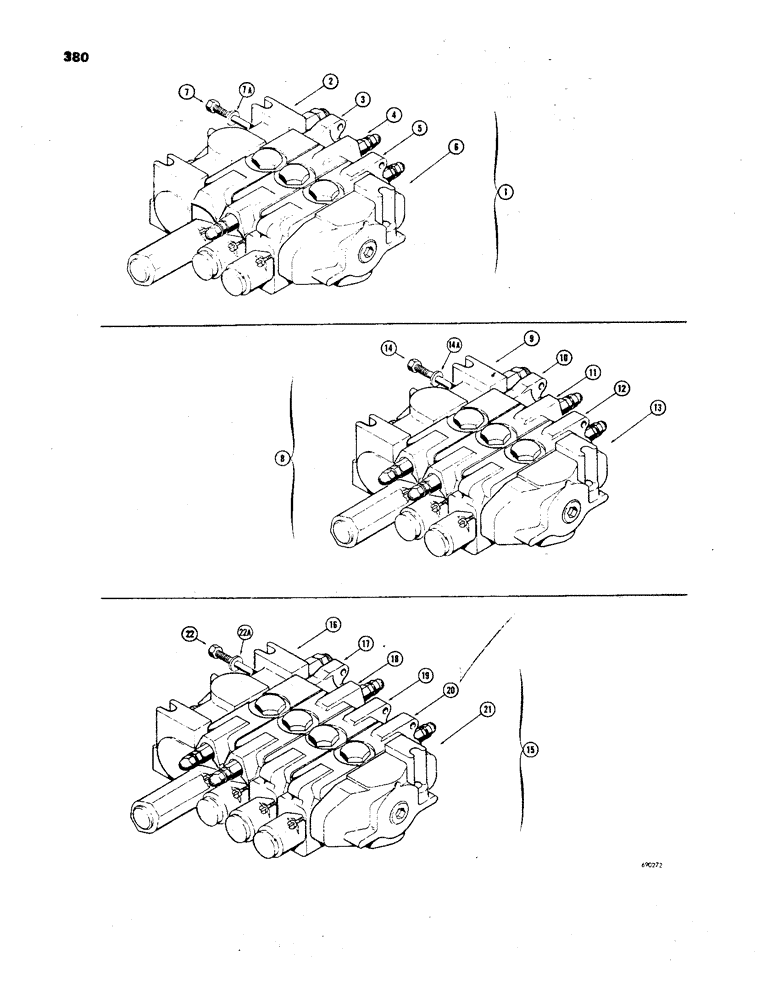

Запчасти Case 850 (380) - D39779 TILT DOZER/RIPPER VALVE (3 SPOOL), D48102 ANGLE TILT DOZER VALVE ( 3 SPOOL) (07) - HYDRAULIC SYSTEM

1

D39779

VALVE

- dozer control, 3 spool, Includes: Ref. 2 - 7A

1шт.

1

D48102

VALVE

- dozer control, 3 spool

1шт.

2

D41796

VALVE

INLET SECTION - valve, CS & S #AA100 (Parts list Figure 392)

1шт.

3

D38092

LIFT SECTION - valve, CS & S #HP1030 (Service with D52443 section (Parts list Figure 394)

1шт.

3

D52443

VALVE

LIFT SECTION - valve, CS & S #SY1030 (Parts list Figure 394)

1шт.

4

D42432

NO LONGER SERVICED

ANGLE OR TILT SECTION - valve, CS & S #A35-XDA1372- 3-2 (Parts list Figure 414)

1шт.

5

D41533

VALVE

RIPPER SECTION - valve, CS & S #A35-XDA1384 (Parts list Figure 408)

1шт.

6

D38360

VALVE

OUTLET SECTION - valve, CS & S #HL1030 (Parts list Figure 392)

1шт.

7

R20429

STUD

ASSEMBLY - valve

4шт.

7a

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

8

D39778

LOCK VALVE

VALVE - loader control, 3 spool, ripper or 4-in-1 bucket, Includes: Ref. 9 - 14A

1шт.

9

D41796

VALVE

INLET SECTION - valve, CS & S #AA100 (Parts list Figure 392), D39788 loader/ripper or 4-in-1 bucket 3 spool valve

1шт.

10

D38365

KNIFE SECTION

LIFT SECTION - valve, CS & S #HR 1030 (Parts list Figure 398), D39788 loader/ripper or 4-in-1 bucket 3 spool valve

1шт.

11

D42433

KNIFE SECTION

DUMP SECTION - valve, CS & S #A35-XDA1372-4-2 (Parts list Figure 402), D39788 loader/ripper or 4-in-1 bucket 3 spool valve

1шт.

12

D41533

VALVE

4-IN-1 BUCKET OR RIPPER SECTION - valve CS & S #ADA1384 (Parts list Figure 408) If used as 4-in-1 Bucket section, use D32123 section, D39788 3 spool valve

1шт.

13

D38360

VALVE

OUTLET SECTION - valve, CS & S #HL1030 (Parts list Figure 392), D39788 loader/ripper or 4-in-1 bucket 3 spool valve

1шт.

14

R20429

STUD

ASSEMBLY - valve, D39788 loader/ripper or 4-in-1 bucket 3 spool valve

4шт.

14a

195-33

WASHER,1/2"

- plain (), D39788 loader/ripper or 4-in-1 bucket 3 spool valve 1/2"

4шт.

15

D39780

VALVE - D39780 loader/ripper or 4-in-1 bucket 4 spool valve, Includes: Ref. 16 - 22A

1шт.

16

D41796

VALVE

INLET SECTION - valve, CS & S #AA100 (Parts list Figure 392), D39780 loader/ripper or 4-in-1 bucket 4 spool valve

1шт.

17

D38365

KNIFE SECTION

LIFT SECTION - valve, CS & S #HR1030 (Parts list Figure 398), D39780 loader/ripper or 4-in-1 bucket 4 spool valve

1шт.

18

D42433

KNIFE SECTION

DUMP SECTION - valve, CS & S #A35-XDA1372-4-2 (Parts list Figure 402), D39780 loader/ripper or 4-in-1 bucket 4 spool valve

1шт.

19

D32123

KNIFE SECTION

4-IN-1 BUCKET SECTION - valve, CS & S #A35-80 (Parts list Figure 406), D39780 loader/ripper or 4 spool valve

1шт.

20

D41533

VALVE

RIPPER SECTION - valve, CS & S #A35-XDA1384 (Parts list Figure 408), D39780 loader/ or 4-in-1 bucket 4 spool valve

1шт.

21

D38360

VALVE

OUTLET SECTION - valve, CS & S #HL1030 (Parts list Figure 392), D39780 loader/ripper or 4-in-1 bucket 4 spool valve

1шт.

22

D36476

STUD

ASSEMBLY - valve, D39780 loader/ripper or 4-in-1 bucket 4 spool valve

4шт.

22a

195-33

WASHER,1/2"

- plain (), D39780 loader/ripper or 4-in-1 bucket 4 spool valve 1/2"

4шт.
