Запчасти Case 850 (376[1]) - D46850 RELIEF VALVE (07) - HYDRAULIC SYSTEM

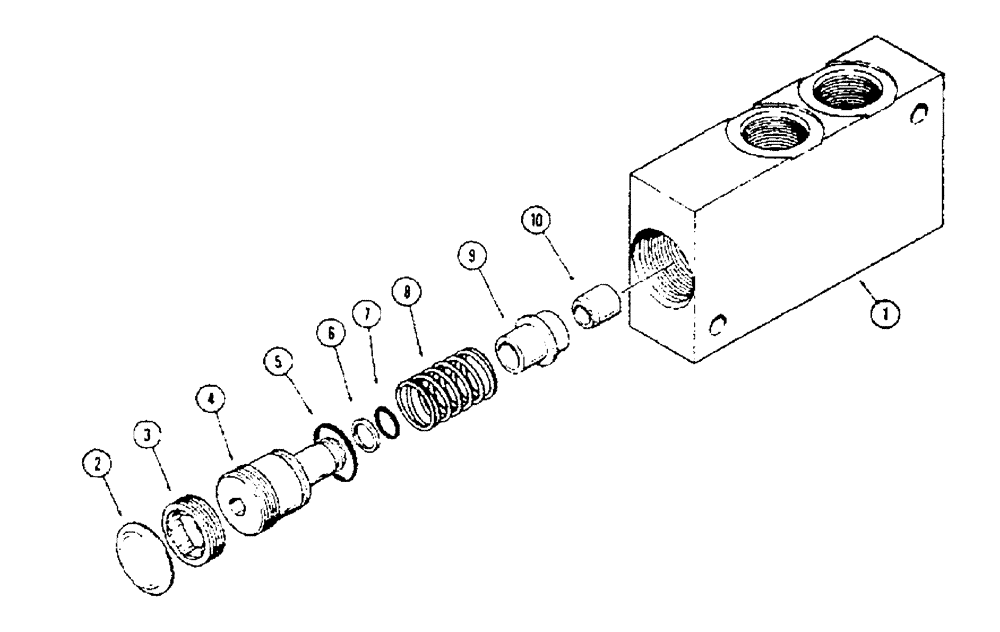

Схема запчастей Case 850 - (376[1]) - D46850 RELIEF VALVE (07) - HYDRAULIC SYSTEM
5
1
7
4
9
10
8
6
2
3

Артикул

Название

Примечание

Количество

D46850

VALVE

SPARE PART VALVE - relief, anti-rollback (Parker no. VPRD5X-1-A-310), Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

41-20

PLUG,Exp, 1 1/4"

PLUG - welch, 1-1/4"

1шт.

3

NSS

NOT SOLD SEPARAT

NUT - lock, special

1шт.

4

NSS

NOT SOLD SEPARAT

GUIDE - spring

1шт.

5

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

SEAL - "O" ring, large

1шт.

6

L31330

BACK-UP RING,109mm ID x 128.81mm OD x 12mm Thk

RING - backup

1шт.

7

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

SEAL - "O" ring, small

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING - poppet

1шт.

9

NSS

NOT SOLD SEPARAT

POPPET

1шт.

10

NSS

NOT SOLD SEPARAT

SEAT - poppet

1шт.

Выбрано товаров: 11
