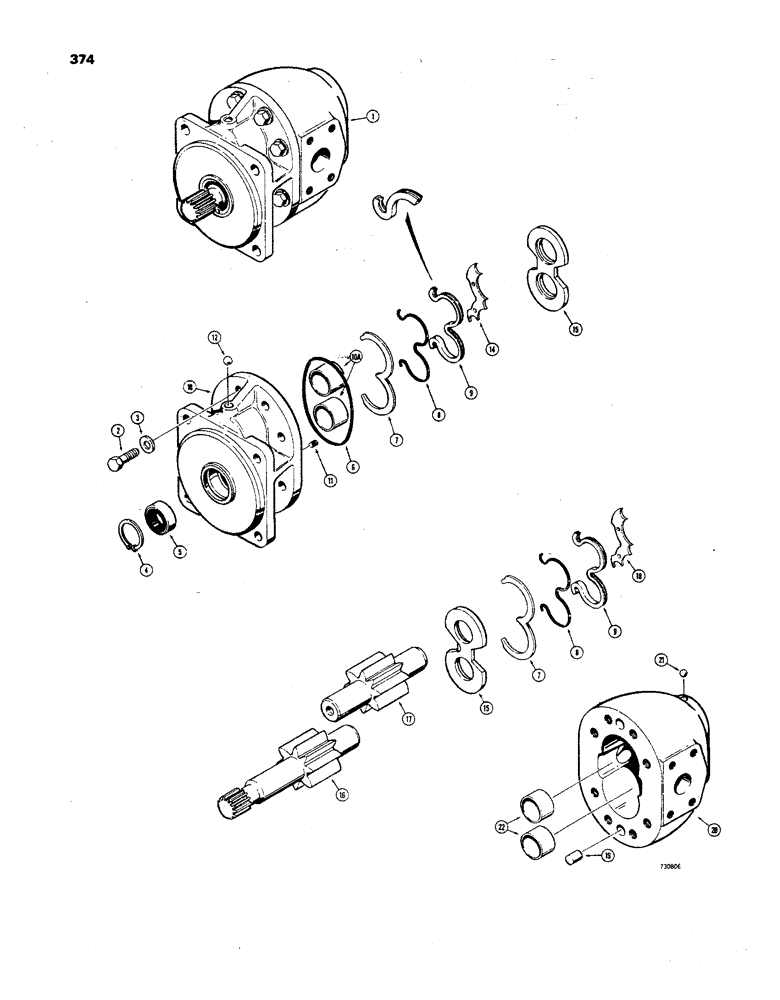

Запчасти Case 850 (374) - R30316 EQUIPMENT PUMP, TYRONE NO. 20250 C-ID-2 (07) - HYDRAULIC SYSTEM

1

R30316

PUMP

- hydraulic (Tyrone #20250C-ID-2), Includes: Ref. 2 - 22

1шт.

2

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

8шт.

3

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- special

8шт.

R30177

KIT

- pump seal, rebuild, Includes: Ref. 4 - 9

1шт.

4

D41419

RING

- snap

1шт.

5

D41418

SEAL

- drive shaft

1шт.

6

D43797

SEAL

- "O" ring, cover (For "O" ring groove less than .06" deep)

1шт.

6

L35781

O-RING,4-1/4" ID x 4-7/16" OD x 3/32"

SEAL - "O" ring, cover (For "O" ring groove deeper than .06")

1шт.

7

D44102

RING

- retaining

2шт.

8

L32845

O-RING

- "O" ring

2шт.

9

D44099

RING

- backup

2шт.

R30408

COVER ASSEMBLY - pump, front (Flange), Includes: Ref. 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

COVER - pump

1шт.

10a

L32840

BUSHING

- cover

2шт.

11

NSS

NOT SOLD SEPARAT

PLUG - pipe, hex. socket head

1шт.

12

211-7

BALL,1/4" Dia

- steel 1/4" Dia

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - "O" ring (Not shown)

1шт.

14

D44101

PLATE

- isolation, sq. edge

1шт.

15

D42856

PLATE

- pressure

2шт.

R30409

GEAR

SET - matched, drive and driven

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT AND GEAR - drive

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

18

D44100

PLATE

- isolation, round edge

1шт.

19

D41414

PIN

DOWEL -, Serial Range: body-cover

1шт.

D52492

VALVE BODY

BODY ASSEMBLY - pump, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

21

211-5

BALL,3/16" Dia

- steel, . 3/16" Dia

1шт.

22

L32840

BUSHING

- body

2шт.
