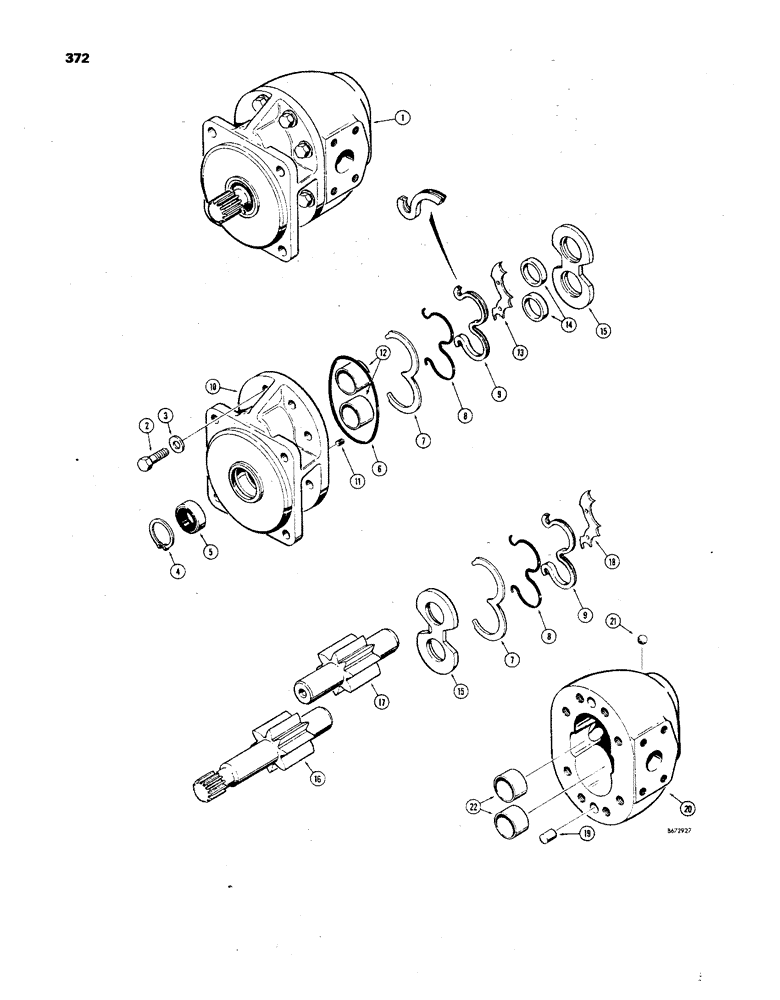

Запчасти Case 850 (372) - D42531 EQUIPMENT PUMP, TYRONE NO. 20250-CG (07) - HYDRAULIC SYSTEM

1

D42531

HYDRAULIC PUMP

PUMP - hydraulic, 35 G.P.M at 1780 R.P.M. at 2000 P.S.I. (Tyrone #20250-CG), Includes: Ref. 2 - 22

1шт.

2

113-405

X

HHCS - 1/2" - 13 NC x 1-1/4"

8шт.

3

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- special

8шт.

D41406

GASKET KIT

KIT - pump seal, rebuild, Includes: Ref. 4 - 9

1шт.

4

D41419

RING

- snap

1шт.

5

D41418

SEAL

- drive shaft

1шт.

6

D43797

SEAL

- "O" ring, cover

1шт.

7

D44102

RING

- retaining

2шт.

8

D44103

SEAL

- "O" ring, strip

2шт.

9

D44099

RING

- backup

2шт.

D41405

NO LONGER SERVICED

COVER ASSEMBLY - pump (When stock is exhausted, use D52490 cover), Includes: Ref. 9A - 12

1шт.

D52490

COVER ASSY

COVER ASSEMBLY - pump, Includes: Ref. 9A - 12

1шт.

9a

L32840

BUSHING

- cover

2шт.

10

NSS

NOT SOLD SEPARAT

COVER - pump

1шт.

11

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex. socket head (1/8" NPT)

1шт.

12

D42855

BUSHING

- D41405 cover

2шт.

12

L32840

BUSHING

- D52490 cover

2шт.

13

D44101

PLATE

- isolation, square edge

1шт.

14

D43796

SPACER

RING - steel

2шт.

15

D42856

PLATE

- pressure

2шт.

D42470

GEAR SET

SHAFT AND GEAR SET - drive and driven, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT AND GEAR - drive

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

18

D44100

PLATE

- isolation, round edge

1шт.

19

D41414

PIN

DOWEL -, Serial Range: body-cover

2шт.

D42825

BODY ASSEMBLY - pump (When stock is exhausted, use D52492 body), Includes: Ref. 20 - 22

1шт.

D52492

VALVE BODY

BODY ASSEMBLY - pump, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

21

211-5

BALL,3/16" Dia

- steel, . 3/16" Dia

1шт.

22

D42855

BUSHING

- D42825 body

2шт.

22

L32840

BUSHING

- D52492 body

2шт.
