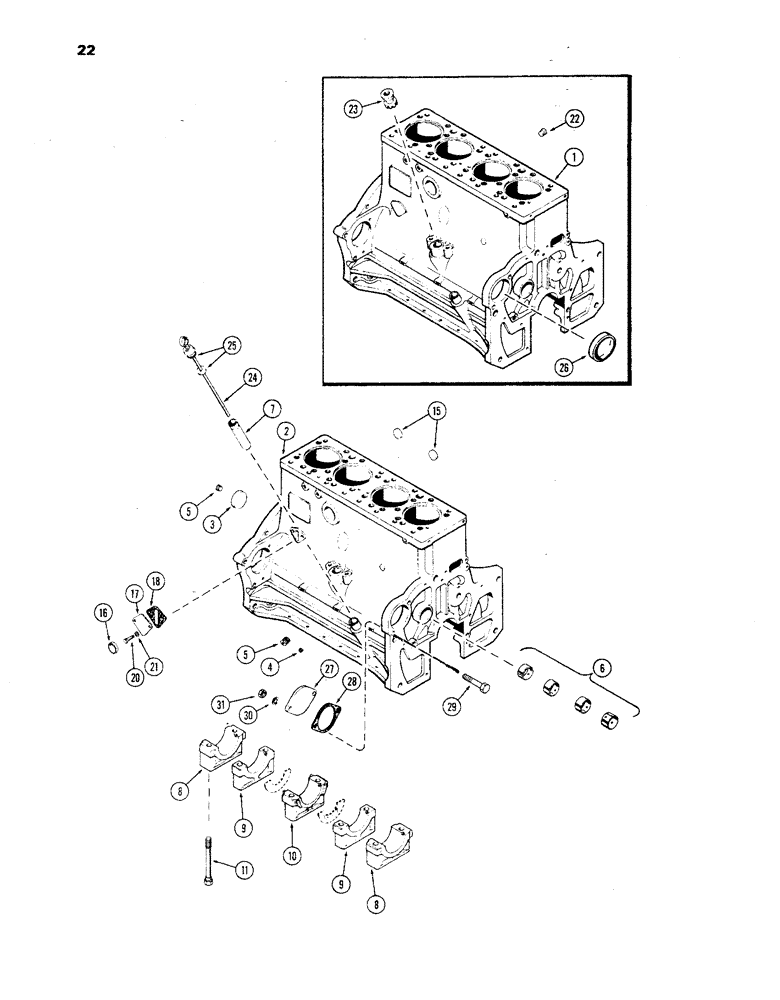

Запчасти Case 850 (022) - CYLINDER BLOCK ASSY., USED W/3 GEAR BALANCER & 106 TOOTH DRIVE GEAR, USED PRIOR TO ENG. S/N 2327745 (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A42236
BLOCK ASSY. - short (Casting No. A58503) (incl. stripped block, piston assy., conn. rods & brgs., camshaft, crankshaft & brgs. & drive gear) (Order 1-A43053 short block assy. from Figure 20 & 1-A43000 balancer kit from Figure 34), Includes: Ref. 2 - 21
1шт.
2
NLS
NO LONGER SERVICED
ASSY. - stripped (Casting No. A58506), Includes: Ref. 3 - 21
1шт.
3
A24361
PLUG
- camshaft hole (2-3/8" cup type)
1шт.
4
221-1041
PLUG
- oil gallery (1/8" P.T., sltd. hd)
3шт.
6
A23577
KIT
BUSHING KIT - camshaft
1шт.
7
A34540
TUBE
SOCKET - oil filler & dipstick
1шт.
8
A58783
BEARING CAP
CAP - main bearing, wide
2шт.
9
A58784
BEARING CAP
CAP - main bearing, narrow
2шт.
10
A58785
BEARING CAP
CAP - main bearing, thrust
1шт.
11
A58566
STEP BOLT
BOLT - bearing caps, 5/8 x 4-1/2" N.C. hex.
10шт.
15
A58568
PLUG,Cup, 1 3/8", Stainless
- water gallery (1-3/8" cup type)
2шт.
16
A58569
PLUG,Cup, 2", Stainless
- heater hole (2" cup type)
1шт.
17
G11702
COVER
- fuel pump opening
1шт.
18
G46902
GASKET
- cover
1шт.
20
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Cover Hex, 5/16"-18 x 3/4", G5, Full Thd
2шт.
21
92-5
LOCK WASHER,5/16"
2шт.
22
221-1845
DRAIN PLUG,Hex Soc, 3/4"-14, NPTF
PLUG - L.H. side (3/4" P.T., sckt. hd.)
1шт.
23
A34266
DRIVE
ASSY. - tachometer
1шт.
24
A61841
DIPSTICK
ASSY. - oil lever (Order A22589) (See figure 20), Includes: Ref. 25
1шт.
25
A42597
O-RING,0.734" ID x 1.012" OD x 0.139"
"O" RING - (3/4 x 1 x 1/8")
2шт.
26
41-1052
PLUG,Cup, 3 1/4"
- aux. pump opening (2-5/8" cup type)
1шт.
27
A58732
COVER
- pump opening (Order 41-1052 plug)
1шт.
28
A58617
GASKET
- pump opening cover
1шт.
29
13-656
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5
- cover, 3/8 x 3-1/2" N.C. hex
2шт.
30
92-6
LOCK WASHER,3/8"
2шт.
31
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex
2шт.
Выбрано товаров: 27
