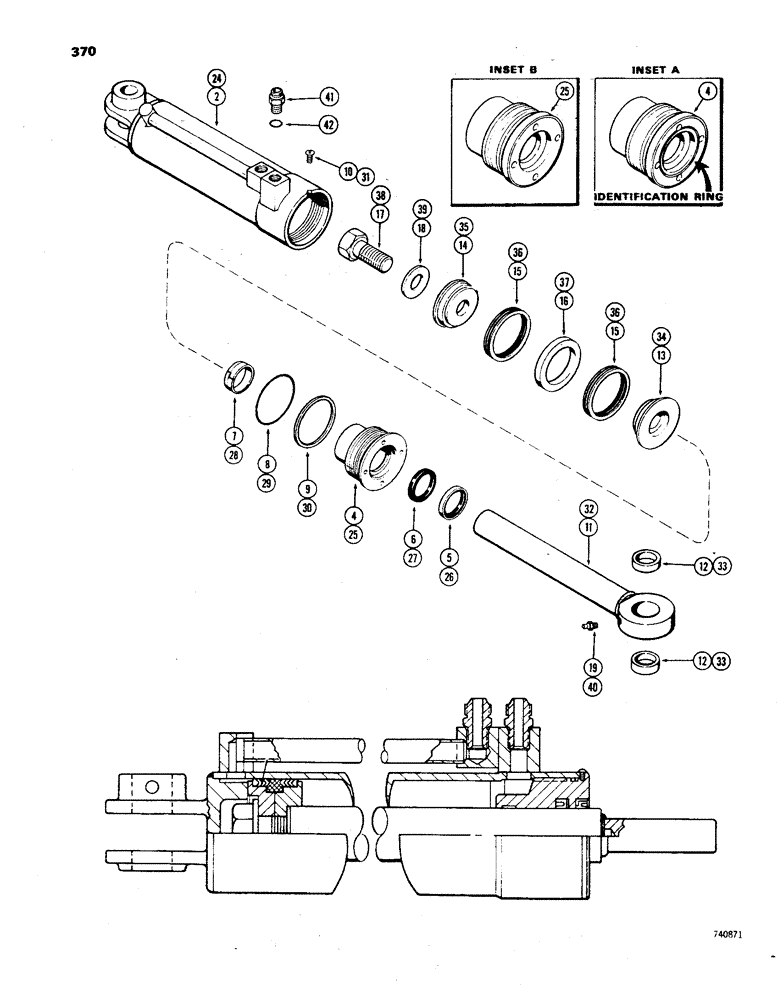

Запчасти Case 850 (370) - G33624 AND G33625 CLAM CYLINDERS, GLAND HAS IDENTIFICATION RING (07) - HYDRAULIC SYSTEM

1

G33624

CYLINDER

- clam, L.H. (4" dia. x 10" stroke) Not shown, Includes: Ref. 2 - 19

1шт.

1

G33625

HYDRAULIC CYLINDER

CYLINDER - clam, R.H. (4" dia. x 10" stroke) Not shown, Includes: Ref. 2 - 19

1шт.

2

G31965

HYD TUBE

TUBE - cylinder body, left hand

1шт.

2

G31964

HYD TUBE,18.69" L

TUBE - cylinder body, right hand

1шт.

G33640

GLAND

ASSY. - (w/identification ring) (See Inset A), Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16")

1шт.

Part of SEAL KIT, P/N G32299

1шт.

6

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16")

1шт.

Part of SEAL KIT, P/N G32299

1шт.

7

D27380

SCRAPER RING

WIPER - piston rod, inner (split type)

1шт.

Part of SEAL KIT, P/N G32299

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8")

1шт.

Part of SEAL KIT, P/N G32299

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland "O" Ring

1шт.

Part of SEAL KIT, P/N G32299

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

11

G33626

ROD

ASSY. - piston (2" dia.) (w/identification ring), Includes: Ref. 12

1шт.

12

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- piston rod

2шт.

13

G33159

PISTON

- split (rod end) (w/identification ring)

1шт.

14

D46930

PISTON

- split (bolt end)

1шт.

15

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSY. - piston ("V" type)

2шт.

Part of SEAL KIT, P/N G32299

1шт.

16

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

17

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston

1шт.

18

G32351

WASHER

- piston bolt (1-3/8 x 2-1/2 x 1/8")

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

1шт.

G32299

KIT

SEAL KIT - cylinder repair, Includes: Ref. 5 - 9 and 15

1шт.

22

G32671

CYLINDER

- clam, L.H. (4" dia. x 10" stroke) Not shown, G32671 & G32672 gland has solid outer rod wiper - no id ring, Includes: Ref. 24 - 42

1шт.

23

G32672

CYLINDER

- clam, R.H. (4" dia. x 10" stroke) Not shown, G32671 & G32672 gland has solid outer rod wiper - no id ring, Includes: Ref. 24 - 42

1шт.

24

G31964

HYD TUBE,18.69" L

TUBE - cylinder body, right hand, G32671 & G32672 clam gland has solid outer rod wiper - no id ring

1шт.

24

G31965

HYD TUBE

TUBE - cylinder body, left hand, G32671 & G32672 clam gland has solid outer rod wiper - no id ring

1шт.

G32737

GLAND

ASSY. - (w/o identification ring) (See Inset B), G32671 & G32672 clam cylinder gland has solid outer rod wiper, Includes: Ref. 25 - 30

1шт.

25

NSS

NOT SOLD SEPARAT

GLAND, G32671 & G32672 clam cylinder has solid outer rod wiper - no id ring

1шт.

26

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16"), G32671 & G32672 clam cylinder gland has solid outer rod wiper - no id ring

1шт.

Part of SEAL KIT, P/N G32299

1шт.

27

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16"), G32671 & G32672 clam cylinder gland has solid outer rod wiper - no id ring

1шт.

Part of SEAL KIT, P/N G32299

1шт.

28

D27380

SCRAPER RING

WIPER - piston rod, inner (split type), G32671 & G32672 clam cylinder gland has solid outer rod wiper - no id ring

1шт.

Part of SEAL KIT, P/N G32299

1шт.

29

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8"), G32671 & G32672 clam cylinder gland has solid outer rod wiper - no id ring

1шт.

Part of SEAL KIT, P/N G32299

1шт.

30

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland "O" Ring , G32671 & G32672 Clam cylinder gland has solid outer rod wiper - no ID ring

1шт.

Part of SEAL KIT, P/N G32299

1шт.

31

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping), G32671 & G32672 clam cylinder gland has solid outer rod wiper - no id ring

1шт.

32

G31974

ROD

ASSY. - piston (2" dia.) (w/o identification ring), G32671 & G32672 clam cylinder gland has solid outer rod wiper, Includes: Ref. 33

1шт.

33

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- piston rod, G32671 & G32672 clam cylinder gland has solid outer rod wiper - no id ring

2шт.

34

D46424

PISTON

- split (Rod end), G32671 & G32672 clam cylinder gland has solid outer rod wiper - no id ring

1шт.

35

D46930

PISTON

- split (Bolt end), G32671 & G32672 clam cylinder gland has solid outer rod wiper - no id ring

1шт.

36

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSY. - piston ("V" type), G32671 & G32672 clam cylinder gland has solid outer rod wiper - no id ring

2шт.

Part of SEAL KIT, P/N G32299

1шт.

37

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing, G32671 & G32672 clam cylinder gland has solid outer rod wiper - no id ring

1шт.

38

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston, G32671 & G32672 clam cylinder gland has solid outer rod wiper - no id ring

1шт.

39

G32351

WASHER

- piston bolt (1-3/8 x 2-1/2 x 1/8"), G32671 & G32672 clam cylinder gland has solid outer rod wiper - no id ring

1шт.

40

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.), G32671 & G32672 clam cylinder gland has solid outer rod wiper - no id ring

1шт.

41

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

CONNECTOR ASSY. - tube, G32671 & G32672 clam cylinder gland has solid outer rod wiper - no id ring, Includes: Ref. 42

2шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - connector (3/4 x 15/16 x 3/32"), G32671 & G32672 clam cylinder gland has solid outer rod wiper - no id ring

1шт.

G32299

KIT

SEAL KIT - cylinder repair, Includes: Ref. 26 - 30 and 36, G32671 & G32672 clam gland has solid outer rod wiper - no id ring

1шт.
