Запчасти Case 850 (366) - D39754 RIPPER CYLINDER, HAS SPLIT OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

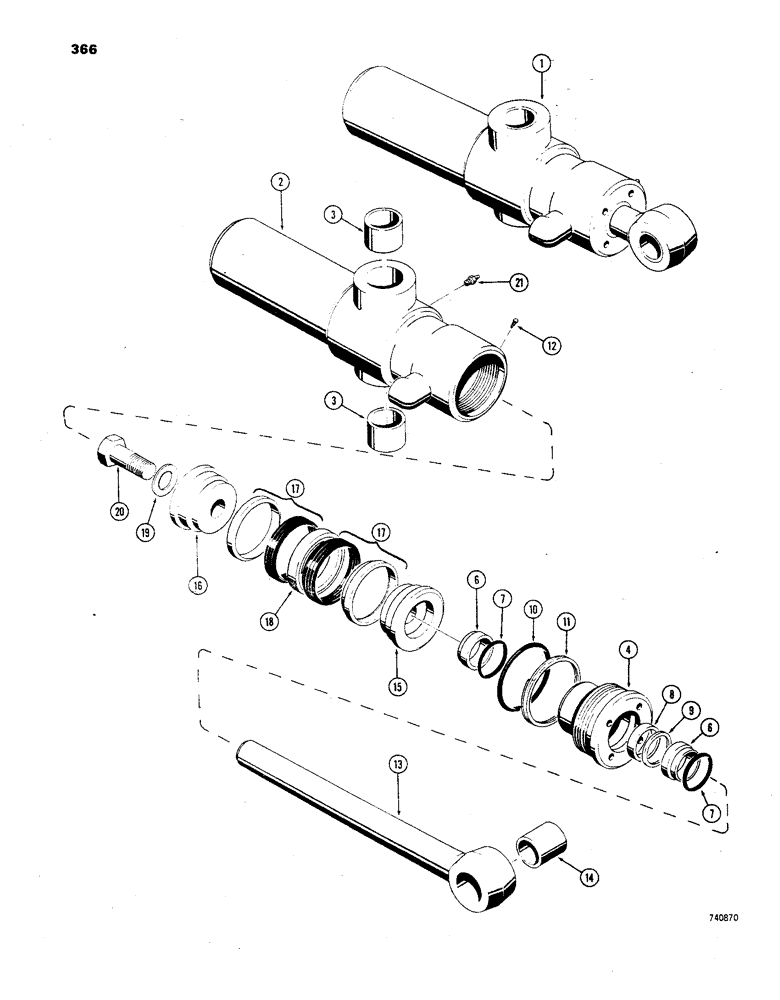

Схема запчастей Case 850 - (366) - D39754 RIPPER CYLINDER, HAS SPLIT OUTER ROD WIPER (07) - HYDRAULIC SYSTEM
8
4
9
1
7
10
11
16
3
12
15
20
3
13
7
19
21
2
14
6
17
18
17
6

Артикул

Название

Примечание

Количество

1

D39754

CYLINDER ASSY. - ripper, 4' dia. x 11" stroke (Use G32580 cylinder for service - parts list figure 364), Includes: Ref. 2 - 21

1шт.

2

D39753

TUBE

ASSY. - cylinder, Includes: Ref. 3

1шт.

3

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- tube

2шт.

4

D45072

GLAND

- Use G32738 gland assembly - parts list figure 364

1шт.

D42875

GASKET KIT

PACKING KIT - gland (Replaces D37359 & D41400), Includes: Ref. 6 - 12

1шт.

6

D27432

SHIM

- piston rod, inner & outer (split type)

2шт.

7

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O" RING - wiper (1-7/8 x 2-1/8 x 1/8")

2шт.

8

D36970

CUP

SEAL - rod (1-3/4 x 2-1/4 x 13/32")

1шт.

9

D28499

RING

- rod seal back-up

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O" ring, gland (4 x 4-1/4 x 1/8")

1шт.

11

D27382

RING

- "O" ring back-up

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

13

D43678

ROD ASSY.

- piston (1-3/4" dia.), Includes: Ref. 14

1шт.

14

D30741

BUSHING,38.33mm ID x 47.63mm OD x 50.8mm L

- rod

1шт.

15

D30743

PISTON

- split (rod end)

1шт.

16

D30744

PISTON

- split (bolt end)

1шт.

17

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSY. - piston ("V" type)

2шт.

18

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - packing, piston

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-7/64 x 1-7/8 x 9/64")

1шт.

20

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

Выбрано товаров: 21
