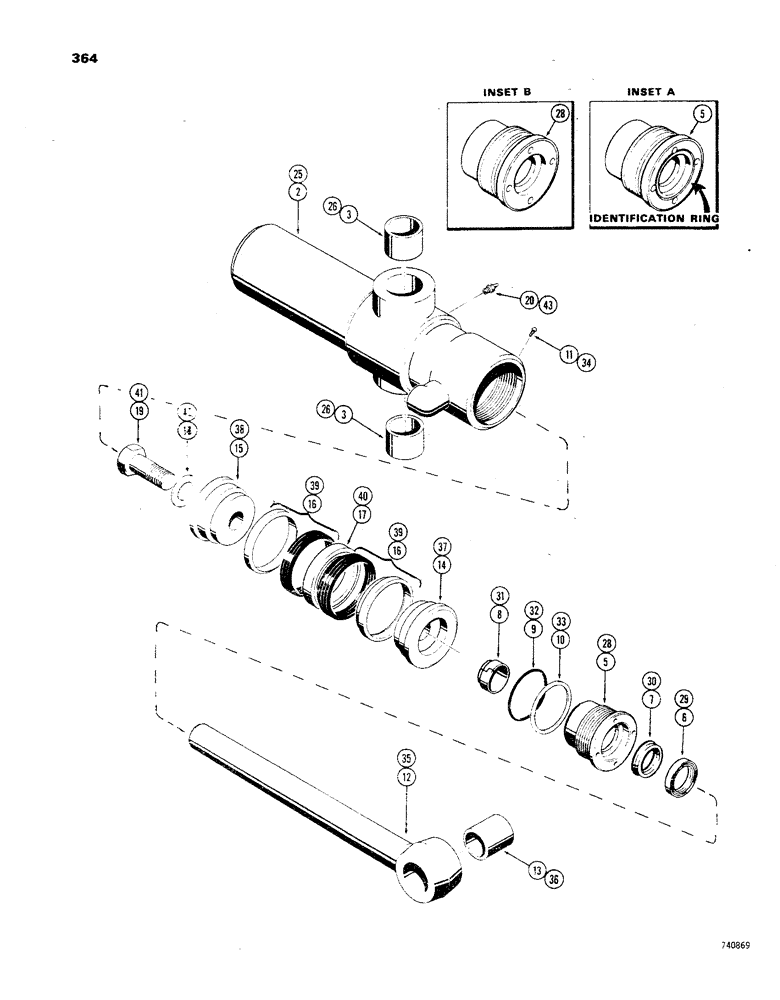

Запчасти Case 850 (364) - G33511 RIPPER CYLINDER, GLAND HAS IDENTIFICATION RING (07) - HYDRAULIC SYSTEM

1

G33511

CYLINDER

- ripper, 4" dia. x 11" stroke (Not shown), Includes: Ref. 2 - 20

1шт.

2

D39753

TUBE

ASSY. - cylinder body, Includes: Ref. 3

1шт.

3

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- tube trunnion

2шт.

G33567

GLAND

ASSY. - (w/identification ring) ( See Inset A), Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16")

1шт.

Part of SEAL KIT, P/N G32297

1шт.

7

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 7/16")

1шт.

Part of SEAL KIT, P/N G32297

1шт.

8

D27432

SHIM

- piston rod, inner (split type)

1шт.

Part of SEAL KIT, P/N G32297

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8")

1шт.

Part of SEAL KIT, P/N G32297

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland "O" Ring

1шт.

Part of SEAL KIT, P/N G32297

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

12

G33512

ROD

ASSY. - piston (1-3/4" dia.) (w/identification ring), Includes: Ref. 13

1шт.

13

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

1шт.

14

G33515

PISTON

- split (rod end) (w/identification ring)

1шт.

15

D30744

PISTON

- split (bolt end)

1шт.

16

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSY. - piston ("V" type)

2шт.

Part of SEAL KIT, P/N G32297

1шт.

17

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-1/8 x 1-7/8 x 1/8")

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G32297

SEAL

KIT - cylinder repair, Includes: Ref. 6 - 10 and 16

1шт.

24

G32580

HYDRAULIC CYLINDER

CYLINDER - 4" dia. x 11" stroke (Not shown), G32580 ripper gland has solid outer rod wiper - no id ring, Includes: Ref. 25 - 43

1шт.

25

D39753

TUBE

ASSY. - cylinder body, G32580 ripper gland has solid outer rod wiper - no id ring, Includes: Ref. 26

1шт.

26

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- tube trunnion, G32580 ripper cylinder gland has solid outer rod wiper - no id ring

2шт.

G32738

GLAND

ASSY. - (w/o identification ring) (See Inset B), G32580 ripper cylinder gland has solid outer rod wiper, Includes: Ref. 29 - 33

1шт.

28

NSS

NOT SOLD SEPARAT

GLAND, G32580 ripper cylinder has solid outer rod wiper - no id ring

1шт.

29

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16"), G32580 ripper cylinder gland has solid outer rod wiper - no id ring

1шт.

Part of SEAL KIT, P/N G32297

1шт.

30

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 7/16"), G32580 ripper cylinder gland has solid outer rod wiper - no id ring

1шт.

Part of SEAL KIT, P/N G32297

1шт.

31

D27432

SHIM

- piston rod, inner (split type), G32580 ripper cylinder gland has solid outer rod wiper - no id ring

1шт.

Part of SEAL KIT, P/N G32297

1шт.

32

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8"), G32580 ripper cylinder gland has solid outer rod wiper - no id ring

1шт.

Part of SEAL KIT, P/N G32297

1шт.

33

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland "O" Ring , G32580 Ripper cylinder gland has solid outer rod wiper - no ID ring

1шт.

Part of SEAL KIT, P/N G32297

1шт.

34

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping), G32580 ripper cylinder gland has solid outer rod wiper - no id ring

1шт.

35

D43678

ROD ASSY.

- piston (1-3/4" dia.) (w/out identification ring), G32580 ripper cylinder gland has solid outer rod wiper, Includes: Ref. 36

1шт.

36

D30741

BUSHING,38.33mm ID x 47.63mm OD x 50.8mm L

- piston rod, G32580 ripper cylinder gland has solid outer rod wiper - no id ring

1шт.

37

D30743

PISTON

- split (rod end) (w/o identification ring), G32580 ripper cylinder gland has solid outer rod wiper

1шт.

38

D30744

PISTON

- split (bolt end), G32580 ripper cylinder gland has solid outer rod wiper - no id ring

1шт.

39

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSY. - piston ("V" type), G32580 ripper cylinder gland has solid outer rod wiper - no id ring

2шт.

Part of SEAL KIT, P/N G32297

1шт.

40

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing, G32580 ripper cylinder gland has solid outer rod wiper - no id ring

1шт.

41

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-1/8 x 1-7/8 x 1/8"), G32580 ripper cylinder gland has solid outer rod wiper - no id ring

1шт.

42

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

G32580 ripper cylinder gland has solid outer rod wiper - no id ring Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

43

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , G32580 ripper cylinder gland has solid outer rod wiper - no id ring 90º, 1/8" NPT x .84" lg

1шт.

G32297

SEAL

KIT - cylinder repair, Includes: Ref. 29 - 33 and 39, G32580 ripper gland has solid outer rod wiper - no id ring

1шт.
