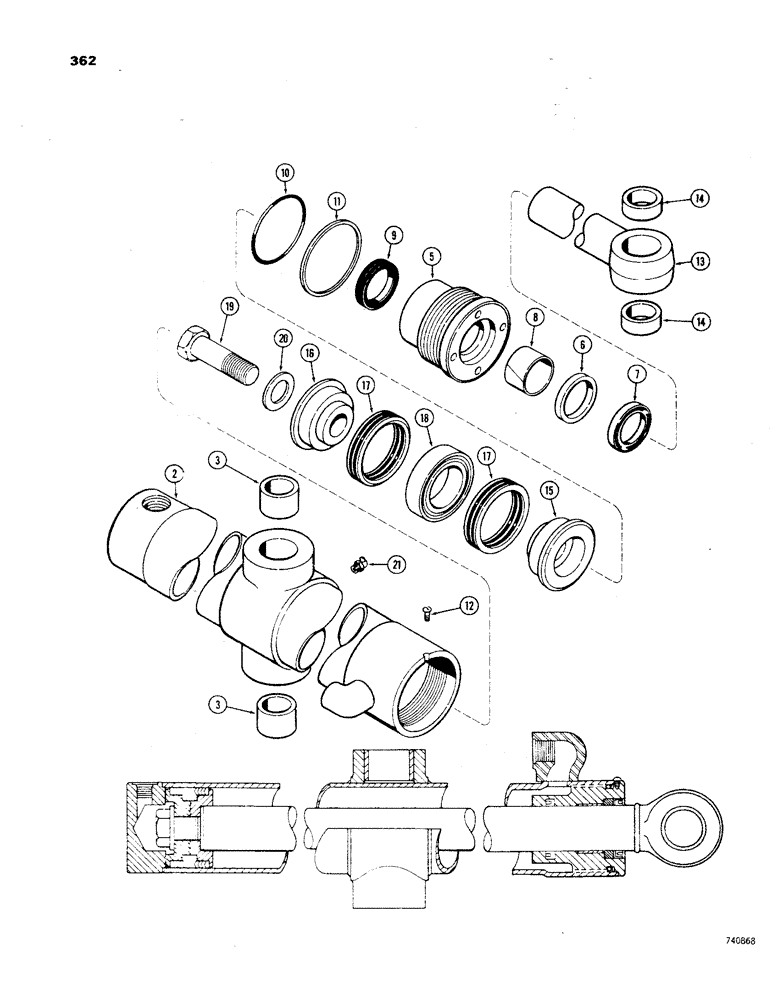

Запчасти Case 850 (362) - G33511 RIPPER CYLINDER, GLAND IS STAMPED WITH CYLINDER PART NUMBER (07) - HYDRAULIC SYSTEM

1

G33511

CYLINDER

- ripper, 4" dia. x 11" stroke (Not shown), Includes: Ref. 2 - 21

1шт.

2

D39753

TUBE

ASSY. - cylinder body, Includes: Ref. 3

1шт.

3

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- tube trunnion

2шт.

G34625

GLAND

ASSY. - (hand stamp for identification), Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16")

1шт.

Part of SEAL KIT, P/N G34626

1шт.

8

PG34621

WASHER

BEARING - center

1шт.

Part of SEAL KIT, P/N G34626

1шт.

9

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 7/16")

1шт.

Part of SEAL KIT, P/N G34626

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8")

1шт.

Part of SEAL KIT, P/N G34626

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland "O" Ring

1шт.

Part of SEAL KIT, P/N G34626

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

13

G33512

ROD

ASSY. - piston (1-3/4" dia.), Includes: Ref. 14

1шт.

14

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

15

G33515

PISTON

- split (rod end)

1шт.

16

D30744

PISTON

- split (bolt end)

1шт.

17

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSY. - piston ("V" type)

2шт.

Part of SEAL KIT, P/N G34626

1шт.

18

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-1/8 x 1-7/8 x 1/8")

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G34626

SEAL

KIT - cylinder repair, Includes: Ref. 7 - 11 and 17

1шт.
