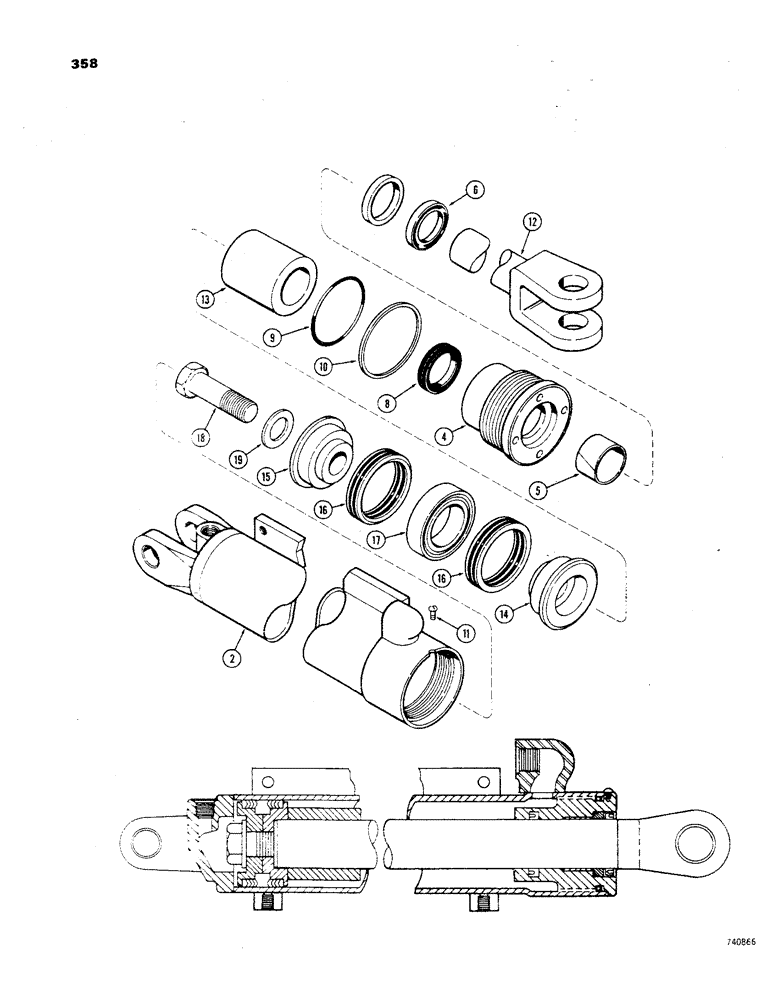

Запчасти Case 850 (358) - G33714 AND G33715 TILT & PITCH CYL., POWER ANGLE TILT PITCH DOZER, GLAND IS STAMPED W/ CYL. PART # (07) - HYDRAULIC SYSTEM

1

G33714

CYLINDER - tilt and pitch, R.H. (3-1/2" dia x 5-3/8" stroke) Not shown, Includes: Ref. 2 - 19

1шт.

1

G33715

CYLINDER - tilt and pitch, L.H. (3-1/2" dia. x 5-3/8" stroke) Not shown, Includes: Ref. 2 - 19

1шт.

2

G33728

TUBE - cylinder body, right hand 3.5" DIA x 17.59" L

1шт.

2

G33729

TUBE - cylinder body, left hand

1шт.

G34629

GLAND

ASSY. - (hand stamp for identification), Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16")

1шт.

Part of Seal Kit P/N G34630

1шт.

7

G34322

BEARING

- center

1шт.

Part of Seal Kit P/N G34630

1шт.

8

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16")

1шт.

Part of Seal Kit P/N G34630

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of Seal Kit P/N G34630

1шт.

10

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of Seal Kit P/N G34630

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

12

G33725

ROD - piston (2" dia.)

1шт.

13

G32808

SPACER - piston stop

1шт.

14

G33724

PISTON - split (rod end)

1шт.

15

D46388

PISTON

- split (bolt end)

1шт.

G33237

PACKING

ASSY. - piston, Includes: Ref. 16 and 17

1шт.

Part of Seal Kit P/N G34630

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston

1шт.

19

G32351

WASHER

- piston bolt (1-11/32 x 2-1/2 x 1/8")

1шт.

G34630

SEAL

KIT - cylinder repair, Includes: P/N G33237 and Ref. 6 - 10

1шт.
