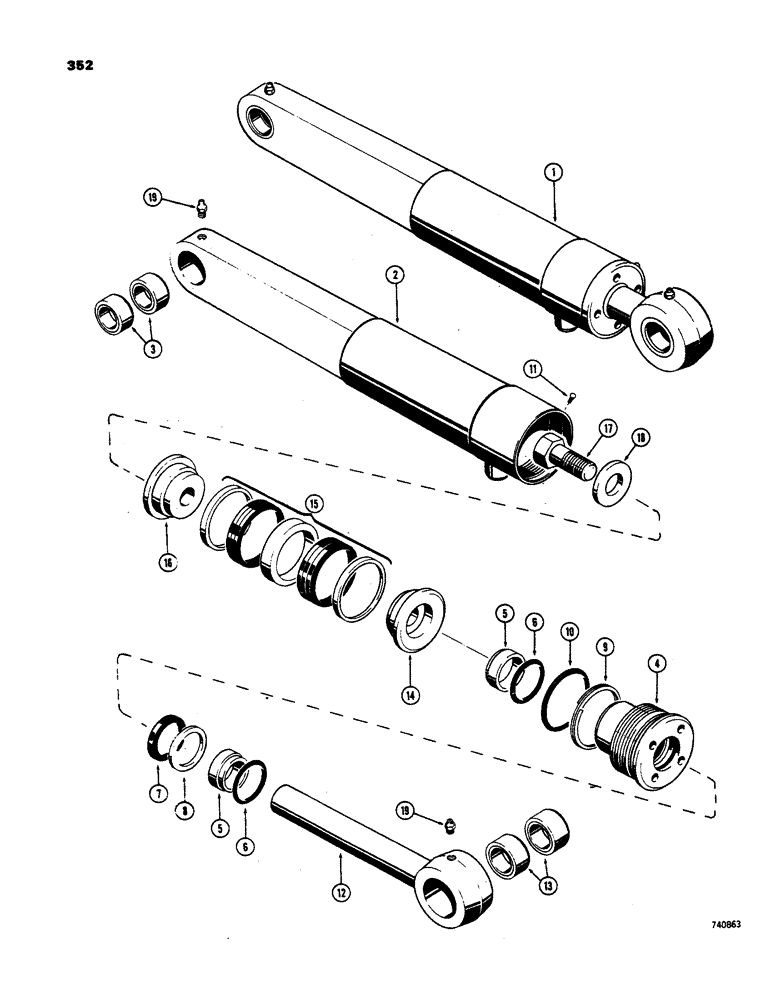

Запчасти Case 850 (352) - D32907 TILT CYLINDER - TILT DOZER, HAS SPLIT OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D32907

X

CYLINDER - tilt, 3-1/2" dia. x 4" stroke, Includes: Ref. 2 - 19

1шт.

2

D32906

TUBE ASSY. - cylinder, Includes: Ref. 3

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube

2шт.

4

D45069

GLAND

1шт.

D42873

GASKET KIT

PACKING KIT - gland repair, Includes: Ref. 5 - 11

1шт.

5

D27432

SHIM

- piston rod, inner & outer (split type)

2шт.

6

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O" RING - wiper (1-7/8 x 2-1/8 x 1/8")

2шт.

7

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 7/16")

1шт.

8

D28499

RING

- piston rod seal back-up

1шт.

9

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- gland "O" ring back-up

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

12

D32905

PISTON ROD

ROD - piston (1-3/4" dia.) Service with G33777 rod, G33520 piston and G34623 gland assembly - parts list figure 348, Includes: Ref. 13

1шт.

13

D32902

BUSHING - rod

2шт.

14

D28369

PISTON

- split (rod end)

1шт.

15

G33237

PACKING

ASSEMBLY - piston (chevron type)

1шт.

16

D28367

PISTON

- split (bolt end)

1шт.

17

26-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

HHCS - 1" - 14 NF x 2-1/2" (Grade 8)

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-1/8 x 1-7/8 x 1/8")

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

2шт.
