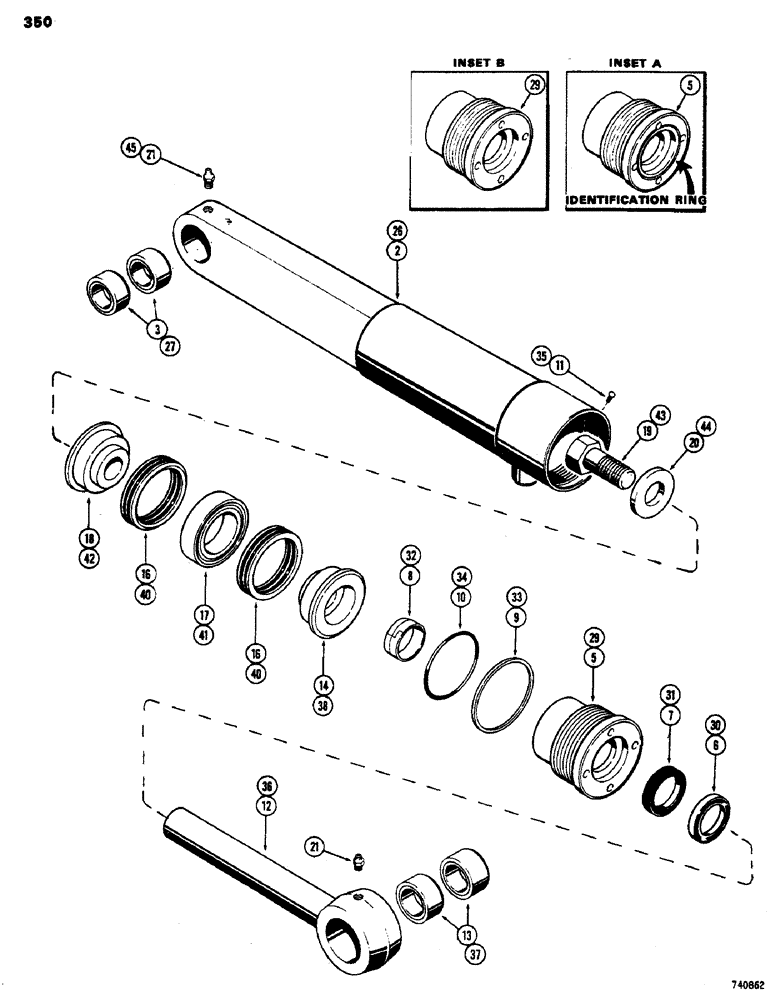

Запчасти Case 850 (350) - G33776 TILT CYLINDER - TILT DOZER, GLAND HAS IDENTIFICATION RING (07) - HYDRAULIC SYSTEM

1

G33776

CYLINDER

- tilt, 3-1/2" dia. x 4" stroke (Not shown), Includes: Ref. 2 - 21

1шт.

2

D32906

TUBE ASSY. - cylinder body, Includes: Ref. 3

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube

2шт.

4

G33568

GLAND

ASSEMBLY - Not shown, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16")

1шт.

Part of SEAL KIT, P/N G32291

1шт.

7

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 7/16")

1шт.

Part of SEAL KIT, P/N G32291

1шт.

8

D27432

SHIM

- piston rod, inner (split type)

1шт.

Part of SEAL KIT, P/N G32291

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of SEAL KIT, P/N G32291

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - (2-1/2 x 3-3/4 x 1/8")

1шт.

Part of SEAL KIT, P/N G32291

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

12

G33777

ROD

ASSY. - piston (1-3/4" dia.) (w/identification ring), Includes: Ref. 13

1шт.

13

D29325

BUSHING,38.33mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

14

G33520

PISTON

- split (rod end) (w/identification ring)

1шт.

15

G33237

PACKING

ASSEMBLY - piston (Not shown), Includes: Ref. 16 and 17

1шт.

Part of SEAL KIT, P/N G32291

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

D28367

PISTON

- split (bolt end)

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-1/8 x 1-7/8 x 1/8")

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

1шт.

G32291

CYLINDER

SEAL KIT - cylinder repair, Includes: Ref. 6 - 10 and 15

1шт.

25

G32171

CYLINDER

- 3-1/2" dia. x 4' stroke (Not shown), G32171 tilt cylinder dozer gland has solid outer rod wiper - no id ring, Includes: Ref. 26 - 45

1шт.

26

D32906

TUBE ASSY. - cylinder body, G32171 tilt dozer gland has solid outer rod wiper - no id ring, Includes: Ref. 27

1шт.

27

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube, G32171 tilt cylinder dozer gland has solid outer rod wiper - no id ring

2шт.

28

G32743

GLAND

ASSEMBLY - Not shown, G32171 tilt cylinder dozer has solid outer rod wiper - no id ring, Includes: Ref. 29 - 33

1шт.

29

NSS

NOT SOLD SEPARAT

GLAND, G32171 tilt cylinder dozer has solid outer rod wiper - no id ring

1шт.

30

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, (1-3/4 x 2-1/4 x 5/16"), G32171 tilt cylinder dozer gland has solid outer rod wiper - no id ring

1шт.

Part of SEAL KIT, P/N G32291

1шт.

31

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 7/16"), G32171 tilt cylinder dozer gland has solid outer rod wiper - no id ring

1шт.

Part of SEAL KIT, P/N G32291

1шт.

32

D27432

SHIM

- piston rod, inner (split type), G32171 tilt cylinder dozer gland has solid outer rod wiper - no id ring

1шт.

Part of SEAL KIT, P/N G32291

1шт.

33

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up, G32171 tilt cylinder dozer has solid outer rod wiper - no id ring

1шт.

Part of SEAL KIT, P/N G32291

1шт.

34

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8"), G32171 tilt cylinder dozer has solid outer rod wiper - no id ring

1шт.

Part of SEAL KIT, P/N G32291

1шт.

35

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping), G32171 tilt cylinder dozer has solid outer rod wiper - no id ring

1шт.

36

D32905

PISTON ROD

ROD - piston (1-3/4" dia.) Service with G33777 rod, G33520 piston and G34623 gland assembly - parts list figure 348, G32171 tilt cylinder dozer gland has solid outer rod wiper - no id ring, Includes: Ref. 37

1шт.

37

D32902

BUSHING - piston rod, G32171 tilt cylinder dozer gland has solid outer rod wiper - no id ring

2шт.

38

D28369

PISTON

- split (rod end) ( w/o identification ring), G32171 tilt cylinder dozer gland has solid outer rod wiper

1шт.

39

G33237

PACKING

ASSEMBLY - piston (Not shown), G32171 tilt cylinder dozer gland has solid outer rod wiper - no id ring, Includes: Ref. 40 and 41

1шт.

Part of SEAL KIT, P/N G32291

1шт.

40

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type, G32171 tilt cylinder dozer gland has solid outer rod wiper - no id ring

2шт.

41

NSS

NOT SOLD SEPARAT

RING - center bearing, G32171 tilt cylinder dozer gland has solid outer rod wiper - no id ring

1шт.

42

D28367

PISTON

- split (bolt end), G32171 tilt cylinder dozer gland has solid outer rod wiper - no id ring

1шт.

43

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

G32171 tilt cylinder dozer gland has solid outer rod wiper - no id ring Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

44

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-1/8 x 1-7/8 x 1/8"), G32171 tilt cylinder dozer gland has solid outer rod wiper - no id ring

1шт.

45

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.), G32171 tilt cylinder dozer gland has solid outer rod wiper - no id ring

2шт.

G32291

CYLINDER

SEAL KIT - repair, Includes: Ref. 30 - 34 and 39, G32171 tilt cylinder dozer gland has solid outer rod wiper - no id ring

1шт.
