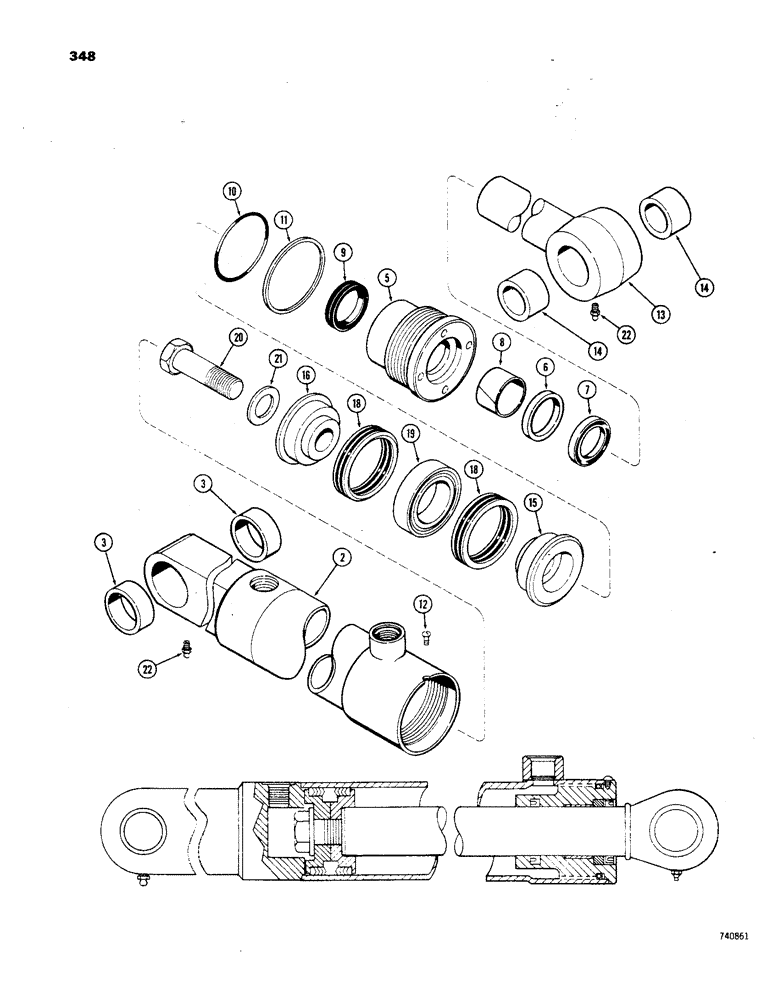

Запчасти Case 850 (348) - G33776 TILT CYLINDER - TILT DOZER, GLAND IS STAMPED WITH CYLINDER PART NUMBER (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
G33776
CYLINDER
- tilt, 3-1/2" dia. x 4" stroke (Not shown), Includes: Ref. 2 - 22
1шт.
2
D32906
TUBE ASSY. - cylinder body, Includes: Ref. 3
1шт.
3
D32865
BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L
- tube
2шт.
G34623
GLAND
ASSY. - (hand stamp for identification), Includes: Ref. 5 - 11
1шт.
5
NSS
NOT SOLD SEPARAT
GLAND
1шт.
6
G34600
RING
- center bearing
1шт.
7
D95143
WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk
WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16")
1шт.
Part of SEAL KIT, P/N G34622
1шт.
8
G34621
BUSHING
BEARING - center
1шт.
Part of SEAL KIT, P/N G34622
1шт.
9
D36970
CUP
SEAL - piston rod (1-3/4 x 2-1/4 x 7/16")
1шт.
Part of SEAL KIT, P/N G34622
1шт.
10
G15457
O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro
"O" RING - gland (3-1/2 x 3-3/4 x 1/8")
1шт.
Part of SEAL KIT, P/N G34622
1шт.
11
G32126
BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk
- gland "O" ring back-up
1шт.
Part of SEAL KIT, P/N G34622
1шт.
12
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - gland lock (#8-32 x 1/4" self tapping)
1шт.
13
G33777
ROD
ASSY. - piston (1-3/4" dia.), Includes: Ref. 14
1шт.
14
D29325
BUSHING,38.33mm ID x 53.98mm OD x 22.23mm L
- piston rod
2шт.
15
G33520
PISTON
- split (rod end)
1шт.
16
D28367
PISTON
- split (bolt end)
1шт.
G33237
PACKING
ASSY. - piston, Includes: Ref. 18 and 19
1шт.
Part of SEAL KIT, P/N G34622
1шт.
18
NSS
NOT SOLD SEPARAT
PACKING ASSY. - "V" type
2шт.
19
NSS
NOT SOLD SEPARAT
RING - center bearing
1шт.
20
28-1640
BOLT,Hex, 1" - 14 x 2-1/2", Gr 8
Piston Hex, 1"-14 x 2 1/2", G8, Full Thd
1шт.
21
G32303
WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk
- piston bolt (1-1/8 x 1-7/8 x 1/8")
1шт.
22
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease (1/8" P.T., str.)
2шт.
G34622
SEAL
KIT - cylinder repair, Includes: P/N G33237 and Ref. 7 - 11
1шт.
Выбрано товаров: 29
