Запчасти Case 850 (346) - D39582 LIFT CYL. - ANGLE DOZER, D39585 LIFT CYL - TILT DOZER, D48058 LIFT CYL. - ANGLE TILT DOZER (07) - HYDRAULIC SYSTEM

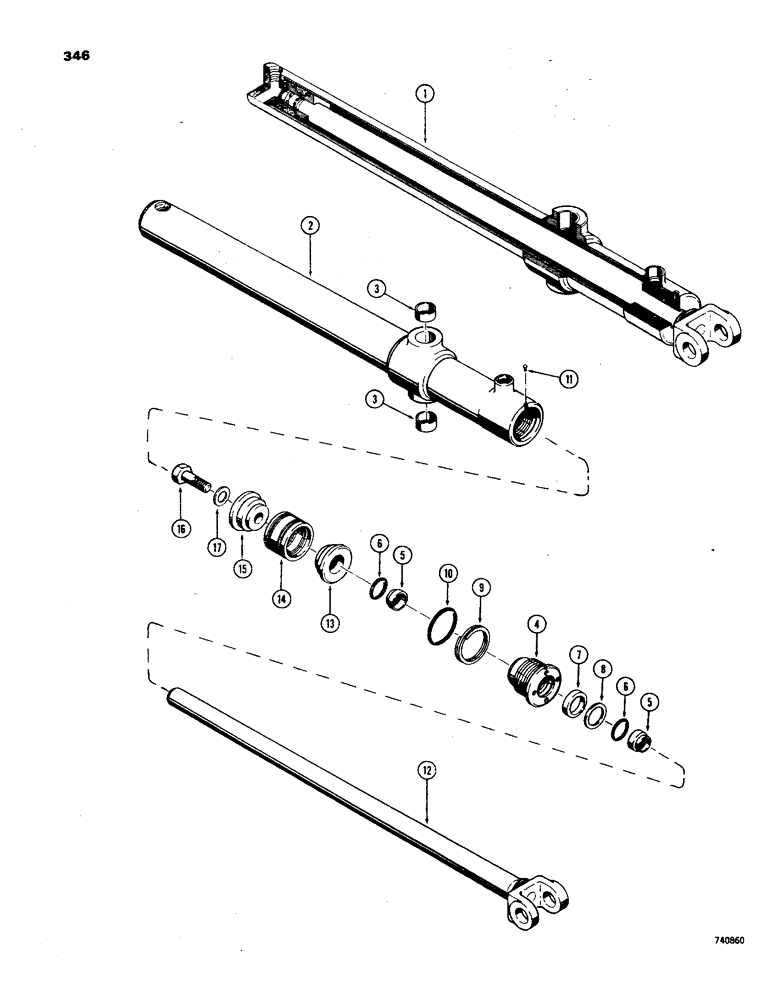

Схема запчастей Case 850 - (346) - D39582 LIFT CYL. - ANGLE DOZER, D39585 LIFT CYL - TILT DOZER, D48058 LIFT CYL. - ANGLE TILT DOZER (07) - HYDRAULIC SYSTEM
3
17
3
8
7
10
1
4
15
2
11
16
5
6
9
14
5
6
12
13

Артикул

Название

Примечание

Количество

1

D39582

NO LONGER SERVICED

CYLINDER - lift, 3" dia. x 31" stroke (Angle Dozer models), Includes: Ref. 2 - 17

2шт.

1

D39585

CYLINDER - lift, 3" dia. x 31" stroke (Tilt Dozer models), Includes: Ref. 2 - 17

2шт.

1

D48058

CYLINDER ASSY.

CYLINDER - lift, 3" dia. x 31" stroke (Angle Tilt Dozer models), Includes: Ref. 2 - 17

2шт.

2

D39755

BODY

TUBE ASSY. - (used w/D39582 cylinder) (9-3/16" from gland end to trunnion center), Includes: Ref. 3

1шт.

2

D39756

TUBE ASSY. - (used w/D39585 cylinder) (10" from gland end to trunnion center), Includes: Ref. 3

1шт.

2

D48059

TUBE

ASSY. - (used w/D48058 cylinder) (12-1/2" from gland end to trunnion center), Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube trunion

2шт.

4

D45067

GLAND

- use G32734 gland assembly for service - parts list figure 344

1шт.

D42870

GASKET KIT

KIT - packing, D45067 gland, Includes: Ref. 5 - 11

1шт.

5

D27706

WIPER SEAL

WIPER - piston rod, inner & outer (split type)

2шт.

6

D27878

O-RING,1.609" ID x 1.887" OD

"O" RING - wiper

2шт.

7

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

8

D28498

RING

- piston rod seal back-up

1шт.

9

D28049

RING

- gland "O" ring back-up

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

12

D32839

PISTON ROD

ROD - piston (1-1/2" dia.)

1шт.

13

D28365

PISTON

- split (rod end)

1шт.

14

G33151

PACKING

ASSEMBLY - piston (chevron type)

1шт.

15

D28366

PISTON

- split (bolt end)

1шт.

16

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston (3/4 x 2-1/2" N.F. hex.)

1шт.

17

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt (3/4 x 1-3/8 x 1/16")

1шт.

Выбрано товаров: 22
