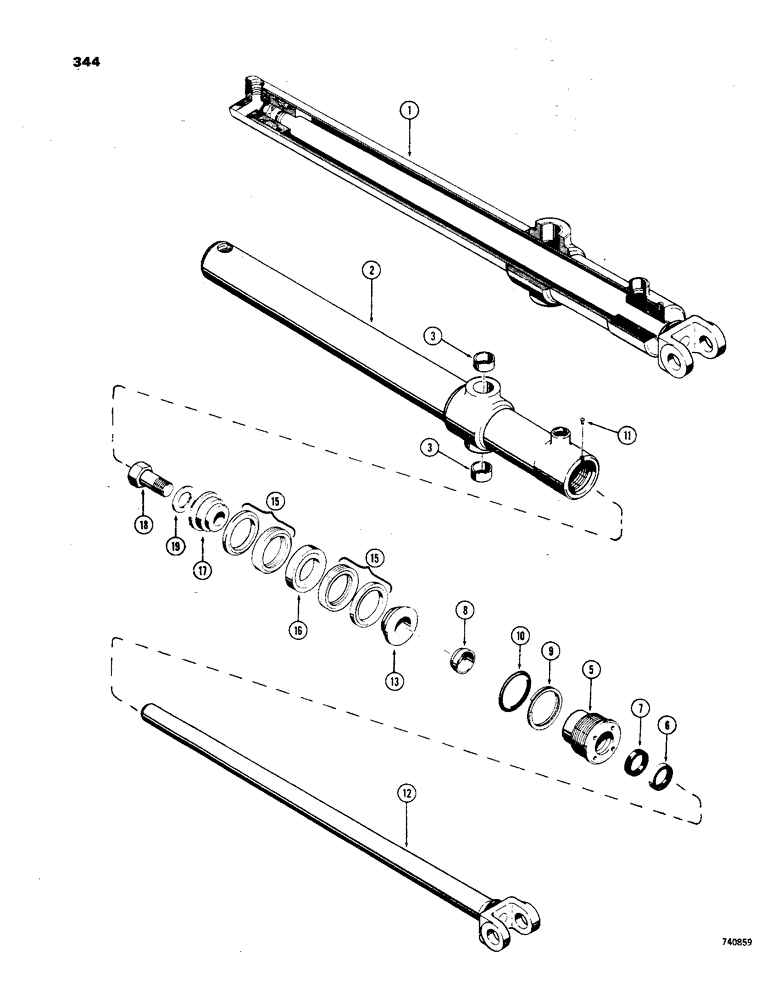

Запчасти Case 850 (344) - G32148 LIFT CYLINDER - ANGLE DOZER, G32123 LIFT CYL. - TILT DOZER (07) - HYDRAULIC SYSTEM

1

G32148

CYLINDER

- lift, 3" dia. x 31" stroke (Angle Dozer models), Includes: Ref. 2 - 19

2шт.

1

G32123

CYLINDER

- lift, 3" dia. x 31" stroke (Angle Tilt Dozer models), Includes: Ref. 2 - 19

2шт.

1

G32483

CYLINDER

- lift, 3" dia. x 31" stroke (Tilt Dozer models), Includes: Ref. 2 - 19

2шт.

2

D39755

BODY

TUBE ASSY. - (used w/G32148 cylinder) (9-3/16" gland end to trunnion center), Includes: Ref. 3

1шт.

2

D39756

TUBE ASSY. - (used w/G32483 cylinder) (12-1/2" from gland end to trunnion center), Includes: Ref. 3

1шт.

2

D48059

TUBE

ASSY. - (used w/G32123 cylinder) (10" from gland end to trunnion center), Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube trunnion

2шт.

G32734

GLAND

ASSY., Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of SEAL KIT, P/N G32292

1шт.

7

D36969

CUP

SEAL - rod (1-1/2 x 2 x 13/32")

1шт.

Part of SEAL KIT, P/N G32292

1шт.

8

D27706

WIPER SEAL

WIPER - rod, inner (split type)

1шт.

Part of SEAL KIT, P/N G32292

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of SEAL KIT, P/N G32292

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

Part of SEAL KIT, P/N G32292

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

12

D32839

PISTON ROD

ROD - piston (1-1/2" dia.) (w/o identification ring)

1шт.

13

D28365

PISTON

- split (rod end) (w/o identification ring)

1шт.

G33151

PACKING

ASSY. - piston, Includes: Ref. 15 and 16

1шт.

Part of SEAL KIT, P/N G32292

1шт.

15

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

16

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

17

D28366

PISTON

- split (bolt end)

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston retaining (3/4 x 2-1/2" N.F. hex.)

1шт.

19

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt (25/32 x 1-3/8 x 5/64")

1шт.

G32292

KIT

SEAL KIT - cylinder repair, Includes: P/N G33151 and Ref. 6 - 10

1шт.
