Запчасти Case 850 (342) - G33733 LIFT CYLINDER - TILT DOZER, G33738 LIFT CYL. - ANGLE TILT DOZER, GLAND HAS I.D. RING (07) - HYDRAULIC SYSTEM

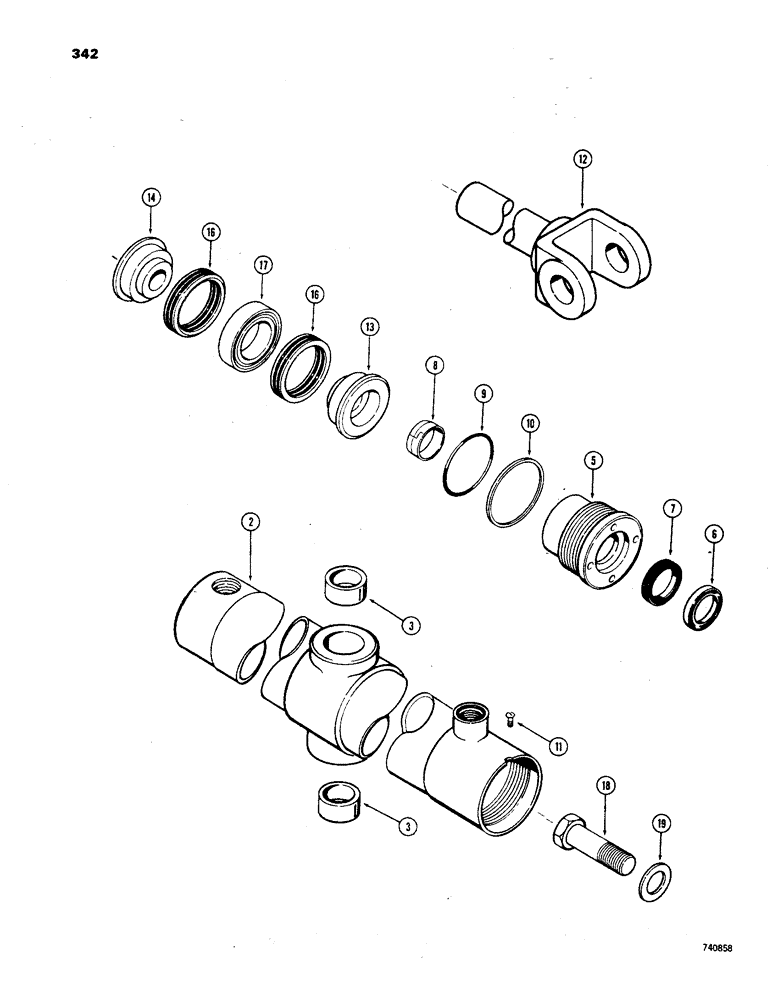

Схема запчастей Case 850 - (342) - G33733 LIFT CYLINDER - TILT DOZER, G33738 LIFT CYL. - ANGLE TILT DOZER, GLAND HAS I.D. RING (07) - HYDRAULIC SYSTEM
9
5
3
2
11
10
6
12
7
8
18
13
16
3
16
19
14
17

Артикул

Название

Примечание

Количество

1

G33733

CYLINDER

- lift, Tilt Dozer (3" dia. x 31" stroke) Not shown, Includes: Ref. 2 - 19

1шт.

1

G33738

CYLINDER

- lift, Angle Tilt Dozer (3" dia. x 31" stroke) Not shown, Includes: Ref. 2 - 19

2шт.

2

D39756

TUBE ASSY. - (used w/G33733 cylinder) (12-1/2" from gland end to trunnion center), Includes: Ref. 3

1шт.

2

D48059

TUBE

ASSY. - (used w/G33738 cylinder) (10" from gland end to trunnion center), Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube trunnion

2шт.

G33485

GLAND

ASSY. - (w/identification ring), Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of SEAL KIT, P/N G32292

1шт.

7

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

Part of SEAL KIT, P/N G32292

1шт.

8

D27706

WIPER SEAL

WIPER - piston rod, inner (split type)

1шт.

Part of SEAL KIT, P/N G32292

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

Part of SEAL KIT, P/N G32292

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of SEAL KIT, P/N G32292

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

12

G33734

ROD

- piston (1-1/2" dia.) (w/identificaiton ring)

1шт.

13

G33150

PISTON

- split (rod end) (w/identification ring)

1шт.

14

D28366

PISTON

- split (bolt end)

1шт.

G33151

PACKING

ASSY. - piston, Includes: Ref. 16 and 17

1шт.

Part of SEAL KIT, P/N G32292

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston (3/4 x 2-1/2" N.F. hex.)

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt (7/8 x 1-3/8 x 1/8")

1шт.

G32292

KIT

SEAL KIT - cylinder repair, Includes: P/N G33151 and Ref. 6 - 10

1шт.
