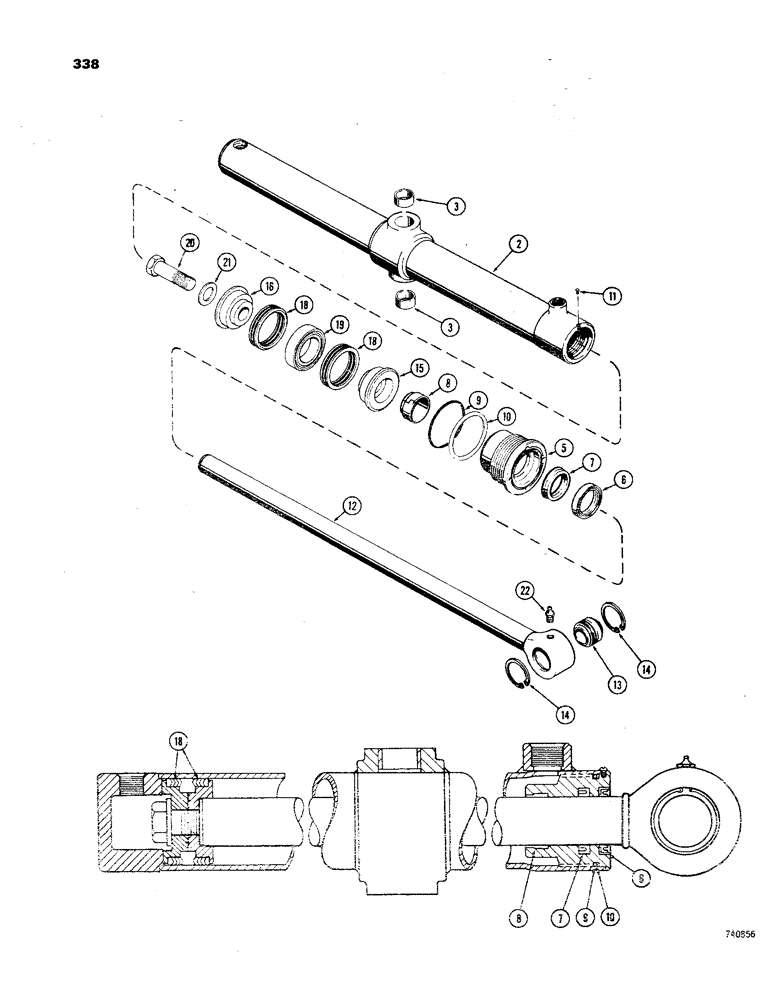

Запчасти Case 850 (338) - G33713 LIFT CYLINDER - ANGLE TILT PITCH DOZER, GLAND HAS IDENTIFICATION RING (07) - HYDRAULIC SYSTEM

1

G33713

CYLINDER - lift, 3" dia. x 30-1/2" stroke (Not shown), Includes: Ref. 2 - 22

2шт.

2

G33723

TUBE ASSY. - cylinder body, Includes: Ref. 3 37.53" L

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube trunion

2шт.

G33485

GLAND

ASSY. - (w/identification ring), Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of SEAL KIT, P/N G32292

1шт.

7

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

Part of SEAL KIT, P/N G32292

1шт.

8

D27706

WIPER SEAL

WIPER - piston rod, inner (split type)

1шт.

Part of SEAL KIT, P/N G32292

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

Part of SEAL KIT, P/N G32292

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of SEAL KIT, P/N G32292

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

12

G33721

ROD ASSY. - piston (1-1/2" dia.) (w/identification ring), Includes: Ref. 13 and 14

1шт.

13

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

- rod (self-aligning)

1шт.

14

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , bushing 2.44", Int, #244

2шт.

15

G33150

PISTON

- split (rod end)

1шт.

16

D28366

PISTON

- split (bolt end)

1шт.

G33151

PACKING

ASSY. - piston, Includes: Ref. 18 and 19

1шт.

Part of SEAL KIT, P/N G32292

1шт.

18

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

19

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

20

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston ret. (3/4 x 2-1/2" N.F. hex.)

1шт.

21

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- ret. bolt (7/8 x 1-3/8 x 9/64")

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

G32292

KIT

SEAL KIT - cylinder repair, Includes: P/N 33151 and Ref. 6 - 10

1шт.
