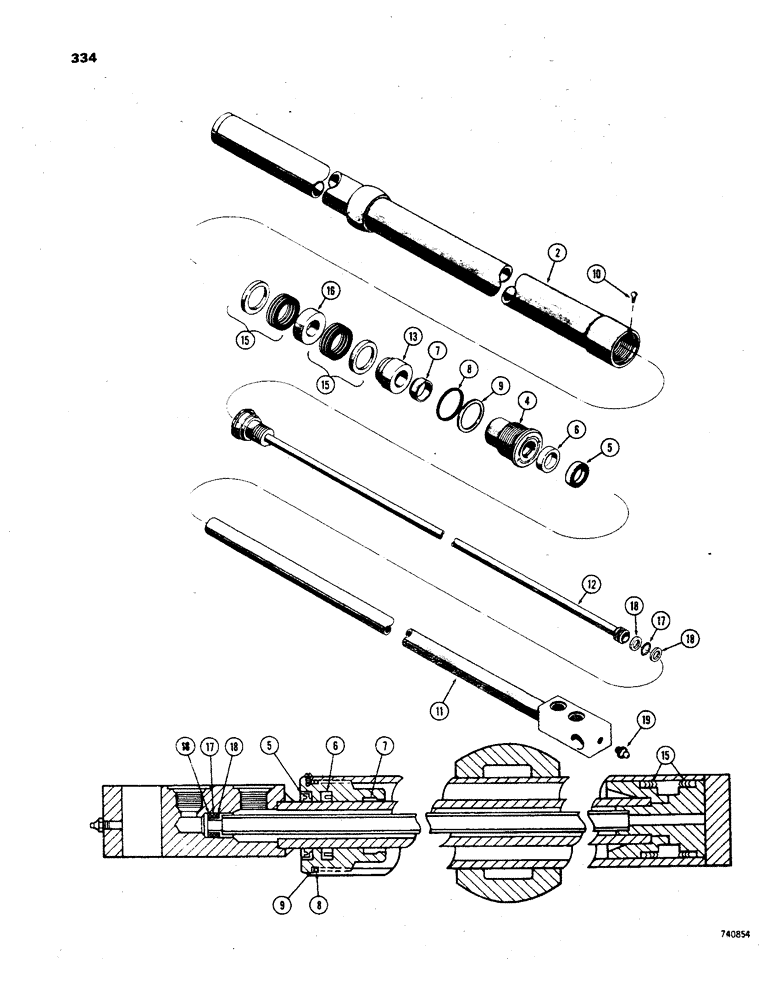

Запчасти Case 850 (334) - G33712 ANGLE CYLINDER - ANGLE TILT PITCH DOZER (07) - HYDRAULIC SYSTEM

1

G33712

CYLINDER BLOCK

CYLINDER - angle, 2-1/2" dia. x 42-1/8" stroke (Not shown), Includes: Ref. 2 - 19

1шт.

2

G32819

TUBE - cylinder body

1шт.

G33487

GLAND

ASSY., Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of SEAL KIT, P/N G32827

1шт.

6

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 13/32")

1шт.

Part of SEAL KIT, P/N G32827

1шт.

7

D27706

WIPER SEAL

WIPER - piston rod, inner

1шт.

Part of SEAL KIT, P/N G32827

1шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - gland (2-1/2 x 2-3/4 x 1/8")

1шт.

Part of SEAL KIT, P/N G32827

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- "O" ring back-up

1шт.

Part of SEAL KIT, P/N G32827

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

11

G33716

ROD ASSY.

ROD - piston, outer (1-1/2" dia.)

1шт.

12

G32817

TUBE - piston rod, inner

1шт.

13

G33720

PISTON - packing ret.

1шт.

G33193

PACKING

ASSY. - piston, Includes: Ref. 15 and 16

1шт.

Part of SEAL KIT, P/N G32827

1шт.

15

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

16

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

17

G32626

RING

"O" RING - tube (5/8 x 13/16 x 3/32")

1шт.

Part of SEAL KIT, P/N G32827

1шт.

18

G32626

RING

- "O" ring back-up

2шт.

Part of SEAL KIT, P/N G32827

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

G32827

SEAL KIT - cylinder repair, Includes: P/N G33193 and Ref. 5 - 9, 17 and 18

1шт.
