Запчасти Case 850 (330) - G32986 ANGLE CYLINDER - ANGLE DOZER, HAS SPLIT OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

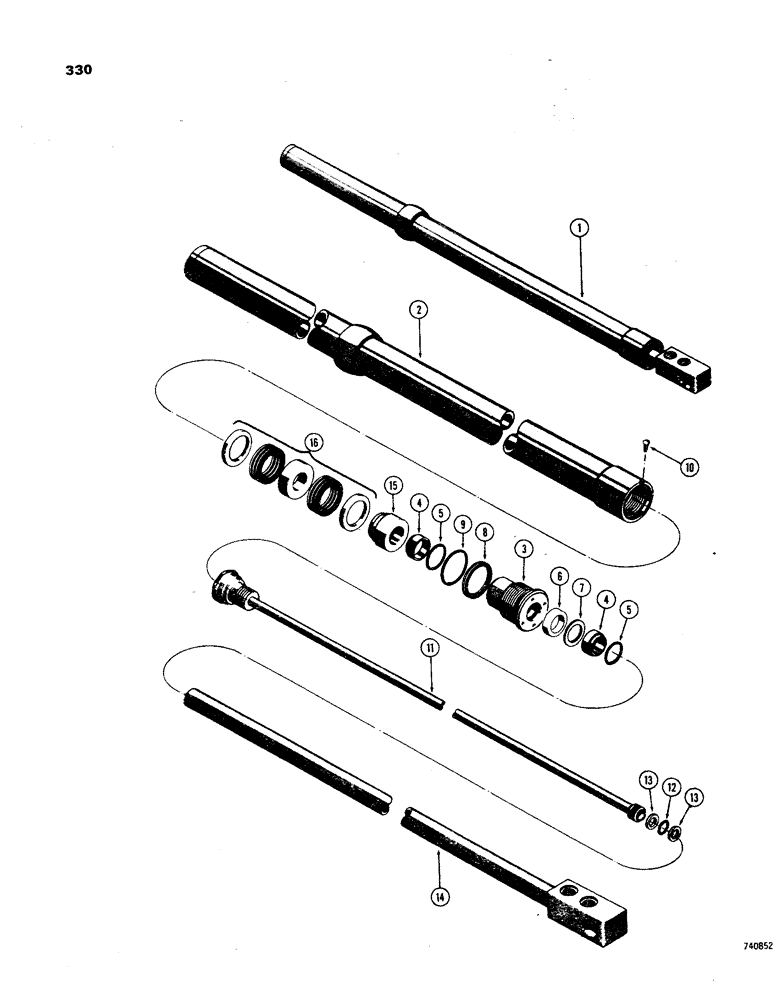

Схема запчастей Case 850 - (330) - G32986 ANGLE CYLINDER - ANGLE DOZER, HAS SPLIT OUTER ROD WIPER (07) - HYDRAULIC SYSTEM
13
1
8
5
4
14
6
13
5
7
16
4
11
9
3
10
15
2
12

Артикул

Название

Примечание

Количество

1

D32986

CYLINDER

- angle (2-1/2" dia. x 40" stroke), Includes: Ref. 2 - 16

1шт.

2

D32955

TUBE - cylinder

1шт.

3

D45066

GLAND

- packing (Use G32733 gland for service - parts list figure 328)

1шт.

D37360

KIT

SEAL KIT - gland repair, Includes: Ref. 4 - 16

1шт.

4

D27706

WIPER SEAL

WIPER - piston rod, inner & outer (split type)

2шт.

5

D27878

O-RING,1.609" ID x 1.887" OD

"O" RING - wiper (not required w/this cylinder)

2шт.

6

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

7

D28498

RING

- piston seal back-up

1шт.

8

D27856

RING

- gland "O" ring back-up

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - gland (2-1/2 x 2-3/4 x 1/8")

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

11

D34928

TUBE

- piston rod, inner

1шт.

12

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - tube, 5/8 x 13/16 x 3/32"

1шт.

13

D34938

BACK-UP RING,0.827" OD

- "O" ring back-up

2шт.

14

D32975

ROD

- piston, outer (1-1/2" dia.)

1шт.

15

D32970

PISTON

- packing

1шт.

16

G33193

PACKING

ASSEMBLY - piston, chevron type

1шт.

Выбрано товаров: 17
