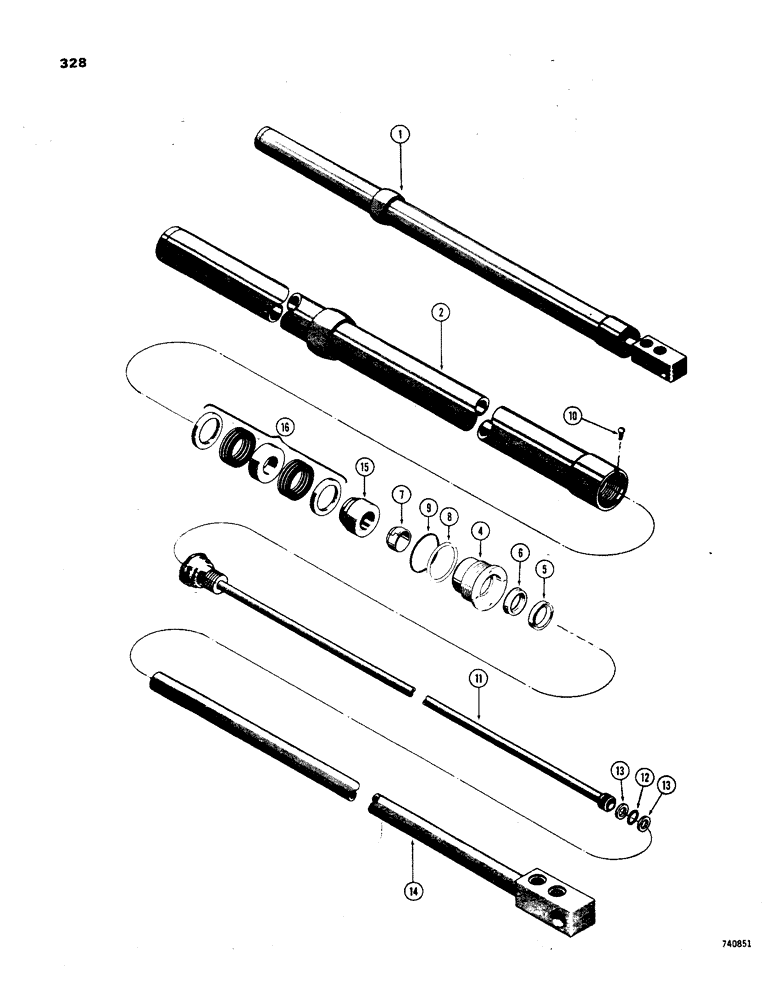

Запчасти Case 850 (328) - G32464 ANGLE CYLINDER - ANGLE DOZER, HAS SOLID OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

G32464

CYLINDER

- angle, 2-1/2" dia. x 40" stroke, Includes: Ref. 2 - 16

2шт.

2

D32955

TUBE - cylinder

1шт.

G32733

GLAND

ASSY.

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of Seal Kit P/N G32458

1шт.

6

D36969

CUP

SEAL - rod (1-1/2 x 2 x 13/32")

1шт.

Part of Seal Kit P/N G32458

1шт.

7

D27706

WIPER SEAL

WIPER - rod, inner

1шт.

Part of Seal Kit P/N G32458

1шт.

8

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- gland, "O" ring back-up

1шт.

Part of Seal Kit P/N G32458

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - gland (2-1/2 x 2-3/4 x 1/8")

1шт.

Part of Seal Kit P/N G32458

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

11

D34928

TUBE

- piston rod, inner

1шт.

12

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - tube, 5/8 x 13/16 x 3/32"

1шт.

Part of Seal Kit P/N G32458

1шт.

13

D34938

BACK-UP RING,0.827" OD

- "O" ring back-up

2шт.

Part of Seal Kit P/N G32458

1шт.

14

D32975

ROD

- piston, outer (1-1/2" dia.)

1шт.

15

D32970

PISTON

- packing

1шт.

16

G33193

PACKING

ASSEMBLY - piston

1шт.

Part of Seal Kit P/N G32458

1шт.

G32458

ASSEMBLY

KIT - seal Includes: Ref. 5 - 9, 12, 13 and 16

1шт.
