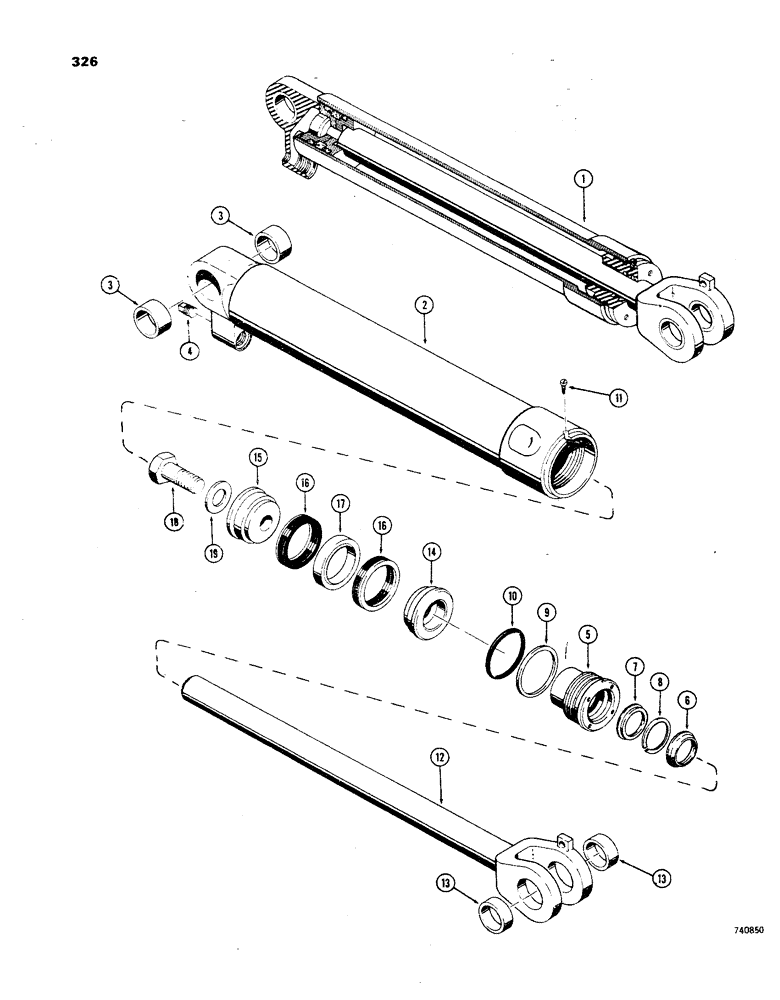

Запчасти Case 850 (326) - D49526 AND D49527 LOADER LIFT CYLINDERS, HAS SPLIT OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D49526

CYLINDER

- lift, R.H. (4-1/2" dia. x 30-1/8" stroke) Use G32690 cylinder for service - parts list Figure 324, Includes: Ref. 2 - 19

1шт.

1

D49527

CYLINDER ASSY.

CYLINDER - lift, L.H. (4-1/2" dia. x 30-1/8" stroke) Use G32689 cylinder for service - parts list Figure 324, Includes: Ref. 2 - 19

1шт.

2

D43582

BODY

TUBE ASSY. - cylinder, right hand, Includes: Ref. 3 and 4

1шт.

2

D43581

BODY

TUBE ASSY. - cylinder, left hand, Includes: Ref. 3 and 4

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

4

221-884

PLUG

- tube, 1/2" P.T. sq. hd.

1шт.

5

D49502

GLAND

ASSY. - w/bushing

1шт.

D42878

GLAND

PACKING KIT - gland repair, Includes: Ref. 6 - 19

1шт.

6

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer (2-1/4 x 2-3/4 x 5/16")

1шт.

7

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - piston rod (2-1/4 x 2-3/4 x 7/16")

1шт.

8

D39539

RING

- piston rod seal back-up

1шт.

9

D38932

BACK-UP RING

RING - gland "O" ring back-up

1шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - gland (4-1/2 x 4-3/4 x 1/8")

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

12

D41471

PISTON ROD

ROD ASSY. - piston, right hand (2-1/4" dia.), Includes: Ref. 13

1шт.

12

D39674

PISTON ROD

ROD ASSY. - piston, left hand (2-1/4" dia.), Includes: Ref. 13

1шт.

13

D33678

BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L

- rod

2шт.

14

D46425

PISTON

- split (rod end)

1шт.

15

D46931

PISTON

- split (bolt end)

1шт.

16

D47205

PACKING

ASSY. - piston ("V" type)

2шт.

17

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

18

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8, Piston

1шт.

19

G32351

WASHER

- piston bolt, 1-23/64 x 2-1/2 x 9/64"

1шт.
