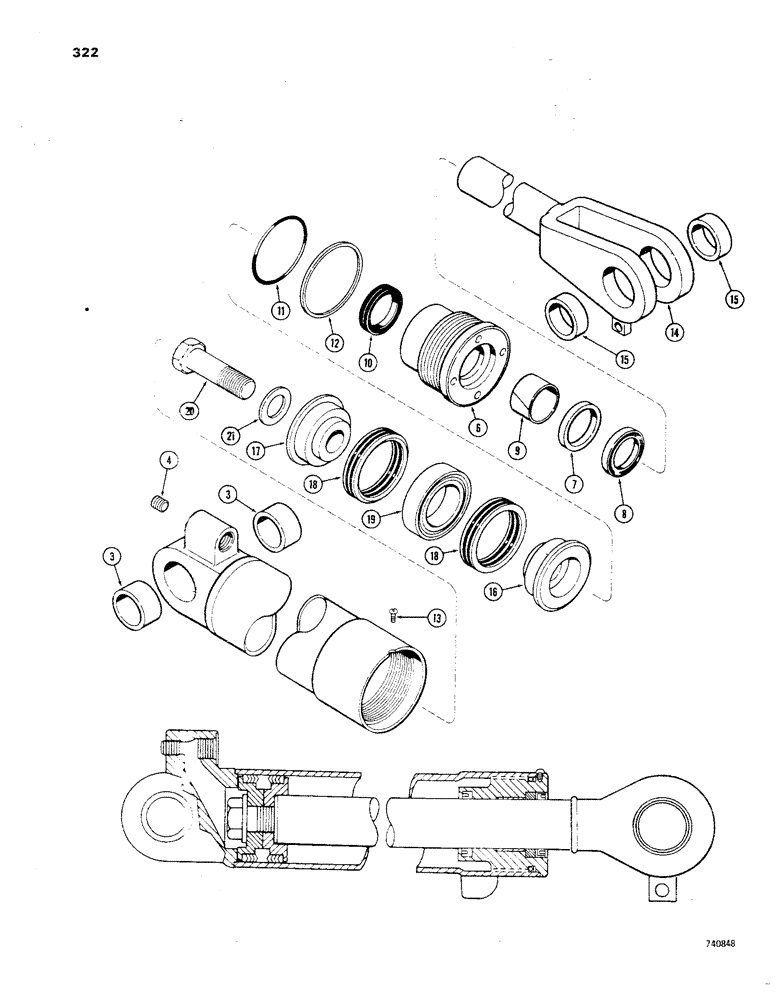

Запчасти Case 850 (322) - G32689 AND G32690 LOADER LIFT CYLINDERS, GLAND IS STAMPED W/ CYLINDER PART NUMBER (07) - HYDRAULIC SYSTEM

1

G32690

CYLINDER

- lift, R.H. (4-1/2" dia. x 30-1/8" stroke) Not shown, Includes: Ref. 2 - 21

1шт.

1

NLS

NO LONGER SERVICED

- lift, L.H. (4-1/2" dia. x 30-1/8" stroke) Not shown, Includes: Ref. 2 - 21

1шт.

2

G32876

TUBE

ASSY. - cylinder body, right hand, Includes: Ref. 3 and 4

1шт.

2

G32875

TUBE

ASSY. - cylinder body, left hand, Includes: Ref. 3 and 4

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

1шт.

4

221-844

PLUG,Hex Soc, 1/2"-14

- tube (1/2" P.T., hex. sckt. hd.)

1шт.

G34627

GLAND

ASSY. - (hand stamp for identification), Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND

1шт.

7

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

8

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer (2-1/4 x 2-3/4 x 5/16")

1шт.

Part of SEAL KIT, P/N G34628

1шт.

9

G34620

BUSHING

BEARING - center

1шт.

Part of SEAL KIT, P/N G34628

1шт.

10

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - piston rod (2-1/4 x 2-3/4 x 7/16")

1шт.

Part of SEAL KIT, P/N G34628

1шт.

11

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - gland (4-1/2 x 4-3/4 x 1/8")

1шт.

Part of SEAL KIT, P/N G34628

1шт.

12

G32284

BACK-UP RING

- gland "O" ring back-up

1шт.

Part of SEAL KIT, P/N G34628

1шт.

13

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

14

G34122

ROD

ASSY. - piston, right hand (2-1/4" dia.) (w/lug), Includes: Ref. 15

1шт.

14

G34123

ROD

ASSY. - piston, left hand (2-1/4" dia.) (w/o lug), Includes: Ref. 15

1шт.

15

D33678

BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L

- piston rod

2шт.

16

D46425

PISTON

- split (rod end)

1шт.

17

D46931

PISTON

- split (bolt end)

1шт.

18

D47205

PACKING

ASSY. - piston ("V" type)

2шт.

Part of SEAL KIT, P/N G34628

1шт.

19

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

20

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8, Piston

1шт.

21

G32351

WASHER

- piston bolt (1-3/8 x 2-1/2 x 1/8")

1шт.

G34628

SEAL

KIT - cylinder repair, Includes: Ref. 8 - 12 and 18

1шт.
