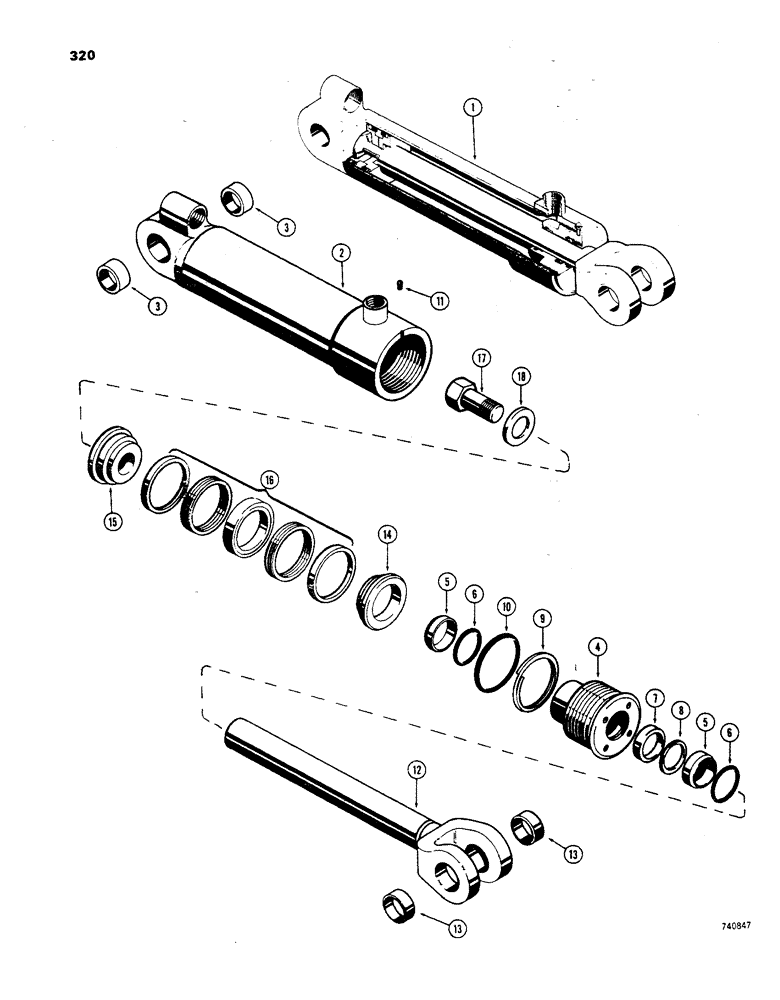

Запчасти Case 850 (320) - G39748 HYDRA-LEVELING CYLINDER, HAS SPLIT OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D39748

CYLINDER ASSY.

CYLINDER - hydra-leveling, 4" dia. x 7-1/2" stroke (Use G32628 cylinder for service - parts list Figure 316), Includes: Ref. 2 - 18

2шт.

2

D39747

BODY

TUBE ASSY. - cylinder body, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

4

D45071

GLAND

1шт.

D42876

GLAND

PACKING KIT - gland repair, Includes: Ref. 5 - 11

1шт.

5

D27380

SCRAPER RING

WIPER - piston rod, inner & outer (split type)

2шт.

6

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

"O" RING - wiper (2-1/8 x 2-3/8 x 1/8")

2шт.

7

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16")

1шт.

8

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- piston rod seal back-up

1шт.

9

D27382

RING

- gland "O" ring back-up

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8")

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

12

D39742

ROD

ASSY. - piston (2' dia.), Includes: Ref. 13

1шт.

13

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- rod

2шт.

14

D46424

PISTON

- split (rod end)

1шт.

15

D46930

PISTON

- split (bolt end)

1шт.

16

D36964

PACKING

ASSY. - piston

1шт.

17

D31642

BOLT

- piston (1-1/4 x 2-1/2" N.F. hex.)

1шт.

18

G32351

WASHER

- piston bolt (1-11/32 x 2-1/2 x 9/64")

1шт.
