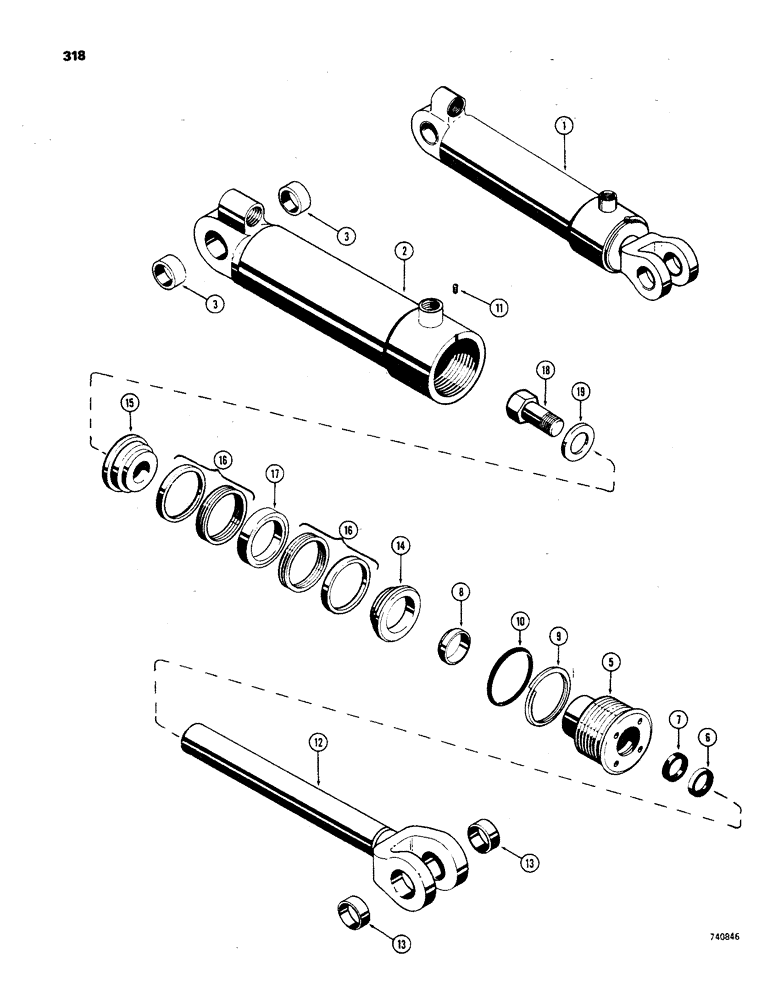

Запчасти Case 850 (318) - G32579 HYDRA-LEVELING CYLINDER, GLAND HAS SOLID OUTER ROD WIPER & SPLIT INNER ROD WIPER (07) - HYDRAULIC SYSTEM

1

G32579

CYLINDER

- hydra-leveling, 4" dia. x 7-1/2" stroke (Use G32628 cylinder for service - parts list Figure 316), Includes: Ref. 2 - 19

2шт.

2

D39747

BODY

TUBE ASSY. - cylinder body, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

G32737

GLAND

ASSY., Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16")

1шт.

Part of SEAL KIT, P/N G32299

1шт.

7

D36971

RING

SEAL - piston rod, (2 x 2-1/2 x 7/16")

1шт.

Part of SEAL KIT, P/N G32299

1шт.

8

D27380

SCRAPER RING

WIPER - piston rod, inner (split type)

1шт.

Part of SEAL KIT, P/N G32299

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland "O" Ring

1шт.

Part of SEAL KIT, P/N G32299

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O"RING - gland (4 x 4-1/4 x 1/8")

1шт.

Part of SEAL KIT, P/N G32299

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 N.C. x 1/4" self-tapping)

1шт.

12

D39742

ROD

ASSY. - piston (2" dia.), Includes: Ref. 13

1шт.

13

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- rod

2шт.

14

D46424

PISTON

- split (rod end)

1шт.

15

D46930

PISTON

- split (bolt end)

1шт.

16

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSY. - piston ("V" type)

2шт.

Part of SEAL KIT, P/N G32299

1шт.

17

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

18

D31642

BOLT

- piston (1-1/4 x 2-1/2" N.F. hex.)

1шт.

19

G32351

WASHER

- piston bolt (1-11/32 x 2-1/2 x 9/64")

1шт.

G32299

KIT

SEAL KIT - cylinder repair, Includes: Ref. 6 - 10 and 16

1шт.
