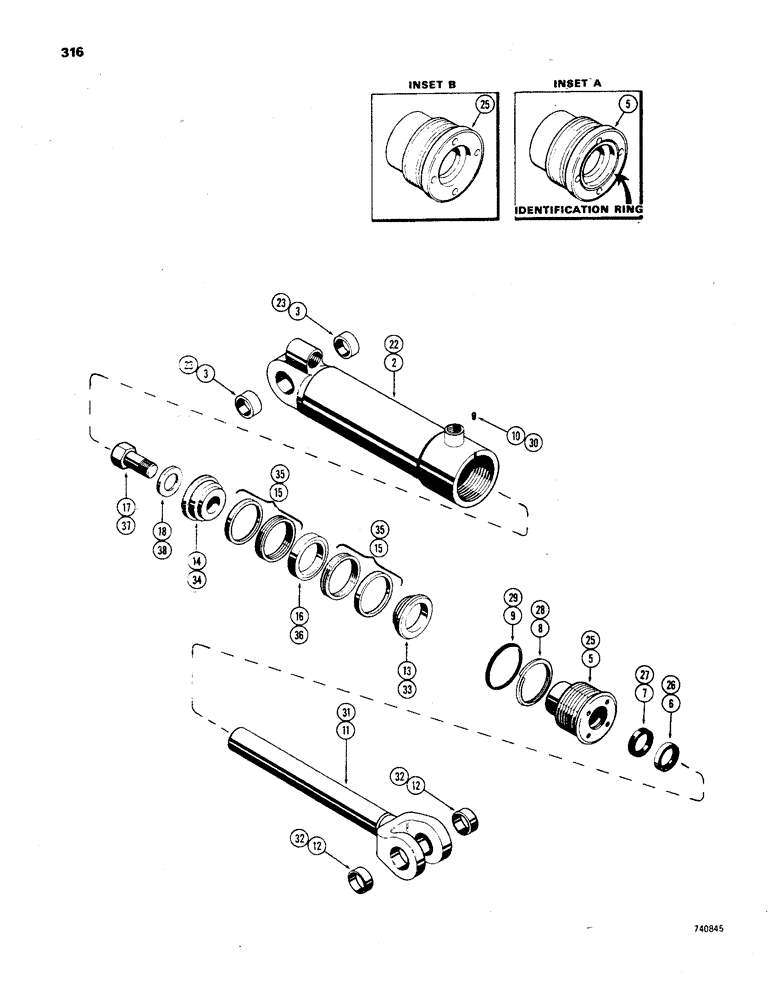

Запчасти Case 850 (316) - G33635 HYDRA-LEVELING CYLINDER, GLAND HAS IDENTIFICATION (07) - HYDRAULIC SYSTEM

1

G33635

CYLINDER

- hydra-leveling, 4" dia. x 7-1/2" stroke (Not shown), Includes: Ref. 2 - 18

2шт.

2

G33629

CYLINDER BLOCK

TUBE ASSY. - cylinder body, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

G33190

GLAND

ASSY. - w/bushing, Includes: Ref. 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - (w/identification ring) (See Inset A)

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 7/16")

1шт.

Part of SEAL KIT, P/N G32615

1шт.

7

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16")

1шт.

Part of SEAL KIT, P/N G32615

1шт.

8

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland "O" Ring

1шт.

Part of SEAL KIT, P/N G32615

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8")

1шт.

Part of SEAL KIT, P/N G32615

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

11

G33636

ROD

ASSY. - piston (2" dia.) (w/identification ring), Includes: Ref. 12

1шт.

12

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

13

G33159

PISTON

- split (rod end) (w/identification ring)

1шт.

14

D46930

PISTON

- split (bolt end)

1шт.

15

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSY. - piston ("V" type)

2шт.

Part of SEAL KIT, P/N G32615

1шт.

16

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

17

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston

1шт.

18

G32351

WASHER

- piston bolt (1-11/32 x 2-1/2 x 1/8")

1шт.

G32615

KIT

SEAL KIT - cylinder repair, Includes: Ref. 6 - 9 and 15

1шт.

21

G32628

CYLINDER

- hydra-leveling, 4" dia. x 7-1/2" stroke (Not shown), gland has solid outer rod wiper - no id ring, Includes: Ref. 25 - 38

2шт.

22

G32629

TUBE

ASSY. - body, G32628 hydra leveling cylinder, gland has solid outer rod wiper - no id ring, Includes: Ref. 23

1шт.

23

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube, G32628 hydra leveling cylinder, gland has solid outer rod wiper - no id ring

2шт.

G32800

GLAND

ASSY. - w/bushing, G32628 hydra leveling cylinder, gland has solid outer rod wiper - no id ring, Includes: Ref. 25 - 29

1шт.

25

NSS

NOT SOLD SEPARAT

GLAND - (w/o identification ring) (See Inset B), G32628 hydra leveling cylinder, gland has solid outer rod wiper

1шт.

26

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16"), G32628 hydra leveling cylinder, gland has solid outer rod wiper - no id ring

1шт.

Part of SEAL KIT, P/N G32615

1шт.

27

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16"), G32628 hydra leveling cylinder, gland has solid outer rod wiper - no id ring

1шт.

Part of SEAL KIT, P/N G32615

1шт.

28

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland "O" Ring , G32628 Hydra leveling cylinder, Gland has solid outer rod wiper - no ID ring

1шт.

Part of SEAL KIT, P/N G32615

1шт.

29

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8"), G32628 hydra leveling cylinder, gland has solid outer rod wiper - no id ring

1шт.

30

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping), G32628 hydra leveling cylinder, gland has solid outer rod wiper - no id ring

1шт.

31

D39742

ROD

ASSY. - piston (2" dia.) (w/o identification ring), G32628 hydra leveling cylinder, gland has solid outer rod wiper, Includes: Ref. 32

1шт.

32

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod, G32628 hydra leveling cylinder, gland has solid outer rod wiper - no id ring

2шт.

33

D46424

PISTON

- split (rod end) ( w/o identification ring), G32628 hydra leveling cylinder, gland has solid outer rod wiper

1шт.

34

D46930

PISTON

- split (bolt end), G32628 hydra leveling cylinder, gland has solid outer rod wiper - no id ring

1шт.

35

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSY. - piston ("V" type), G32628 hydra leveling cylinder, gland has solid outer rod wiper - no id ring

2шт.

Part of SEAL KIT, P/N G32615

1шт.

36

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing, G32628 hydra leveling cylinder, gland has solid outer rod wiper - no id ring

1шт.

37

D31642

BOLT

- piston (1-1/4 x 2-1/2" N.F. hex.), G32628 hydra leveling cylinder, gland has solid outer rod wiper - no id ring

1шт.

38

G32351

WASHER

- piston bolt (1-11/32 x 2-1/2 x 1/8"), G32628 hydra leveling cylinder, gland has solid outer rod wiper - no id ring

1шт.

G32615

KIT

SEAL KIT - repair, Includes: Ref. 26 - 28 and 35, G32628 hydra leveling cylinder, gland has solid outer rod wiper - no id ring

1шт.
