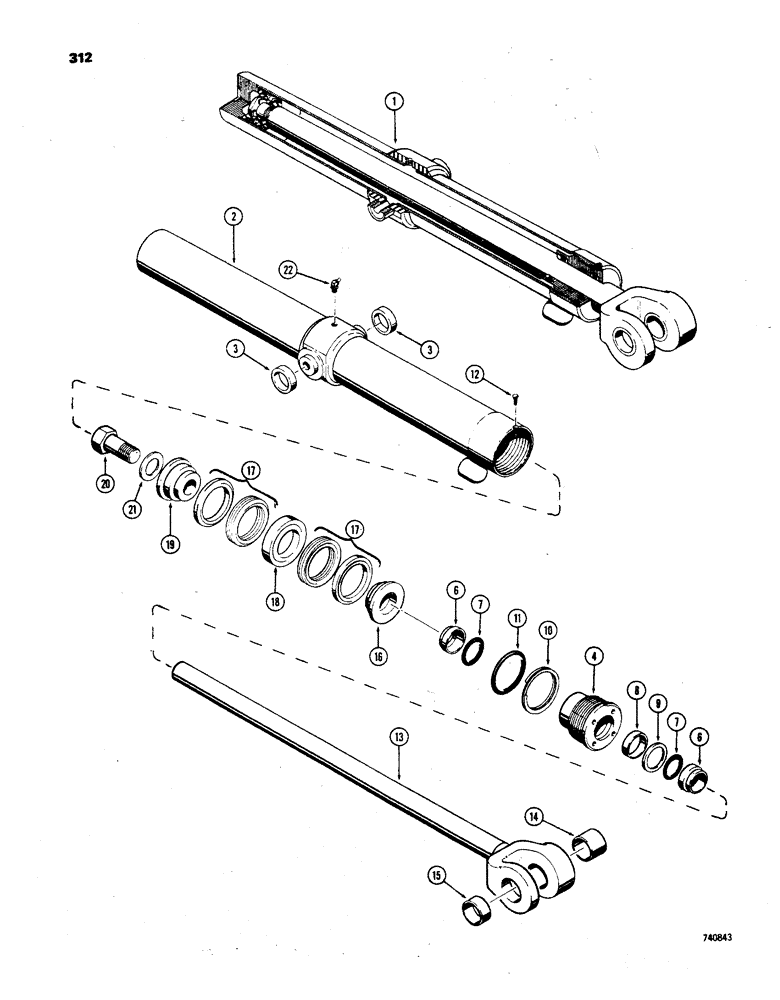

Запчасти Case 850 (312) - D39694 AND D39695 LOADER DUMP CYLINDERS, HAS SPLIT OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D39694

CYLINDER BLOCK

CYLINDER - dump, R.H. (3-1/2" dia. x 28-3/4" stroke), Includes: Ref. 2 - 22

1шт.

1

D39695

CYLINDER ASSY.

CYLINDER - dump, L.H. (3-1/2" dia. x 28-3/4" stroke), Includes: Ref. 2 - 22

1шт.

2

D39692

TUBE

ASSY. - cylinder body, right hand, Includes: Ref. 3

1шт.

2

D39693

TUBE

ASSY. - cylinder body, left hand, Includes: Ref. 3

1шт.

3

D31511

BUSHING

- tube trunnion

2шт.

4

D45069

GLAND

1шт.

D42873

GASKET KIT

PACKING KIT - gland, Includes: Ref. 6 - 12

1шт.

6

D27432

SHIM

- piston rod, inner & outer (split type)

2шт.

7

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O" RING - wiper, 1-7/8 x 2-1/8 x 1/8"

2шт.

8

D36970

CUP

SEAL - piston rod, 1-3/4 x 2-1/4 x 7/16"

1шт.

9

D28499

RING

- seal back-up

1шт.

10

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- gland "O" ring back-up

1шт.

11

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

13

D43387

ROD

ASSY. - piston (1-3/4" dia), Includes: Ref. 14 and 15

1шт.

14

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- piston rod (3/4" long)

1шт.

15

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- piston rod (1-1/4" long)

1шт.

16

D28369

PISTON

- split, rod end

1шт.

17

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

ASSY. - piston ("V" type)

2шт.

18

D47208

RING

- center bearing

1шт.

19

D28367

PISTON

HHCS - 1" - 14 NF x 2-1/2" (Grade 8)

1шт.

21

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-1/8 x 1-7/8 x 1/8")

1шт.

22

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, (1/8" P.T., 45deg.)

1шт.
