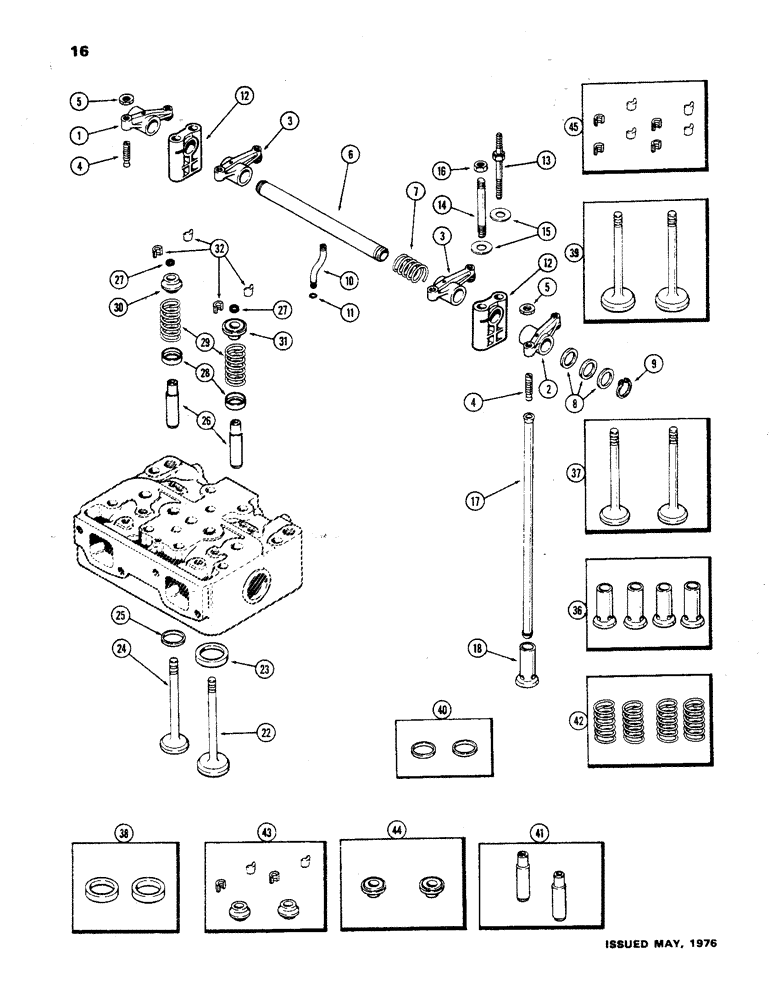

Запчасти Case 850 (016) - VALVE MECHANISM, (301 BD) DIESEL ENGINE (01) - ENGINE

1

A58655

ARM

- rocker, exhaust valve, 1st & 3rd cylinders

2шт.

2

A58656

ARM

- rocker, exhaust valve, 2nd & 4th cylinders

2шт.

3

A58654

ARM

- rocker, intake valve

4шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting, rocker arm

8шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- lock, adj. screw (3/8" N.F. hex., jam)

8шт.

6

A57532

SHAFT

- rocker arm

2шт.

7

A27877

SPRING

- rocker shaft

2шт.

8

A27878

WASHER

- rocker shaft (.028")

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker shaft #87, Ext

4шт.

10

A58657

TUBE

- oil, rocker shaft & arms

2шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube (3/16 x 5/16 x 1/16")

2шт.

12

A61128

BRACKET

- rocker arm shaft

4шт.

13

A67121

STUD

- bracket & cover (7/16" N.C. x 6-7/16")

4шт.

14

A58659

STUD

- bracket (7/16" N.C. x 4-5/16")

4шт.

15

195-29

WASHER,7/16"

- bracket studs (15/32 x 15/16 x 5/64")

8шт.

16

25-107

NUT,7/16"-14, G5

- bracket studs (7/16" N.C. hex.)

4шт.

17

A58596

ROD

- push

8шт.

18

NSS

NOT SOLD SEPARAT

LIFTER - push rod (order ref. 36)

8шт.

22

NSS

NOT SOLD SEPARAT

VALVE - exhaust (order ref. 37)

4шт.

23

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (order ref. 38)

4шт.

24

NSS

NOT SOLD SEPARAT

VALVE - intake (order ref. 39)

4шт.

25

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (order ref. 40)

4шт.

26

NSS

NOT SOLD SEPARAT

GUIDE - valve stem (order ref. 41)

8шт.

28

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem (5/16 x 17/32 x 3/32" rubber)

8шт.

28

A66328

SEAT

- valve springs (Replaces A58623)

8шт.

29

NSS

NOT SOLD SEPARAT

SPRING - valves (order ref. 42)

8шт.

30

NSS

NOT SOLD SEPARAT

RETAINER - intake valve springs (order ref. 43)

4шт.

31

NSS

NOT SOLD SEPARAT

CAP - roto, exhaust valve springs (order ref. 44)

4шт.

32

NSS

NOT SOLD SEPARAT

LOCK - valve spring retainers (order ref. 45)

16шт.

36

A21653

KIT

LIFTER KIT - push rods (Set of 4) (Standard)

2шт.

36

A22463

KIT

LIFTER KIT - push rod (Set of 4) (.010" oversize)

2шт.

37

A42130

VALVE

KIT - exhaust (Set of 2)

2шт.

38

A44010

INSERT

KIT - exhaust valve seat (Set of 2) (Replaces A57485)

2шт.

39

A42129

PACKAGE

VALVE KIT - intake (set of 2)

2шт.

40

A61253

INSERT

KIT - intake valve seat (Set of 2)

2шт.

41

A41781

GUIDE

KIT - valves (Set of 2)

4шт.

42

A42895

SPRING

KIT - valves (Set of 4)

2шт.

43

A44645

KIT

RETAINER KIT - intake valve springs (Set of 2 w/locks)

2шт.

44

A44658

COIL

ROTO CAP KIT - exhaust valve springs (Set of 2)

2шт.

45

A40352

LOCK

KIT - valve spring retainers (Set of 8)

2шт.
