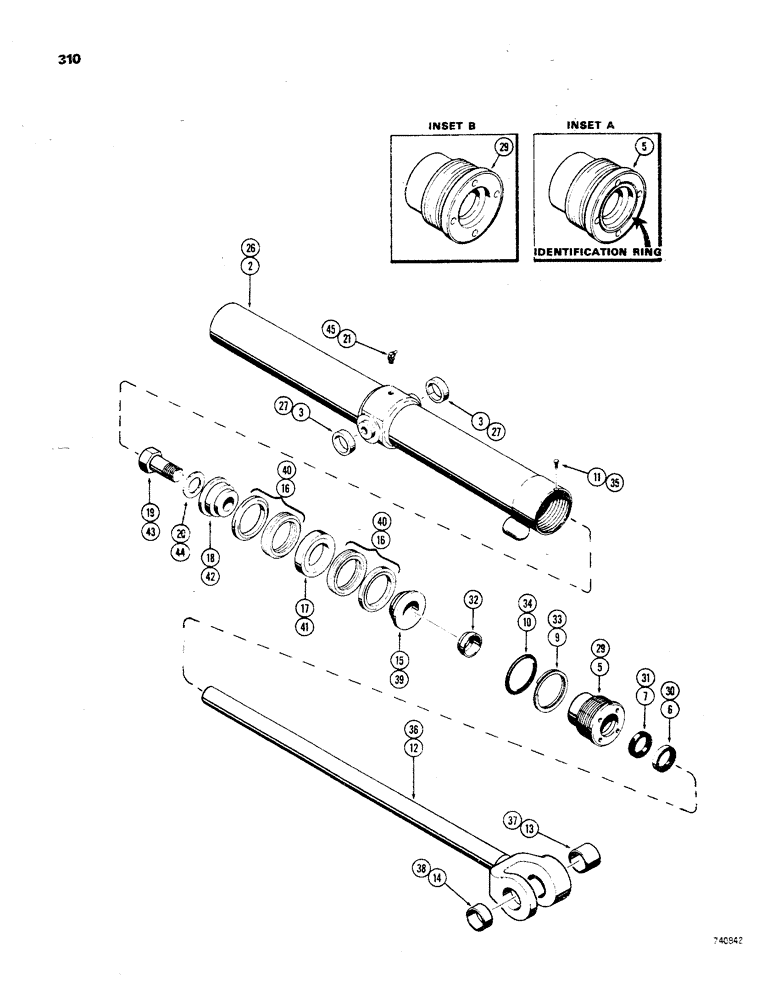

Запчасти Case 850 (310) - G33784 AND G33785 LOADER DUMP CYLINDERS, GLAND HAS IDENTIFICATION RING (07) - HYDRAULIC SYSTEM

1

G33784

CYLINDER BLOCK

CYLINDER - dump, R.H. (3-1/2" dia. x 28-3/4" stroke), Includes: Ref. 2 - 21

1шт.

1

G33785

CYLINDER

- dump, L.H. (3-1/2" dia. x 28-3/4" stroke), Includes: Ref. 2 - 21

1шт.

2

D39692

TUBE

ASSY. - cylinder body, right hand, Includes: Ref. 3

1шт.

2

D39693

TUBE

ASSY. - cylinder body, left hand, Includes: Ref. 3

1шт.

3

G33786

BUSHING

- tube trunnion

2шт.

G33569

GLAND

ASSY. - w/bushing, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - (w/identification ring) (See Inset A)

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16")

1шт.

Part of SEAL KIT, P/N G33571

1шт.

7

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 7/16")

1шт.

Part of SEAL KIT, P/N G33571

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of SEAL KIT, P/NG33571

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of SEAL KIT, P/N G33571

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

12

G33787

ROD

ASSY. - piston (1-3/4" dia.) (w/identification ring), Includes: Ref. 13 and 14

1шт.

13

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- piston rod (1-1/4" long)

1шт.

14

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- piston rod (3/4" long)

1шт.

15

G33520

PISTON

- split, rod end (w/identification ring)

1шт.

16

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

ASSY. - piston ("V" type)

2шт.

Part of SEAL KIT, P/N G33571

1шт.

17

D47208

RING

- center bearing

1шт.

18

D28367

PISTON

- split (bolt end)

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-1/8 x 1-7/8 x 1/8")

1шт.

21

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T., 45deg.)

1шт.

G33571

SEAL KIT

- cylinder repair, Includes: Ref. 6, 7, 9, 10 and 16

1шт.

24

G32577

CYLINDER

- R.H. (3-1/2" dia. x 28-3/4" stroke), G32577 & G32578 loader dump cylinders, gland has solid outer rod wiper - no id ring, Includes: Ref. 26 - 45

1шт.

25

G32578

CYLINDER

- dump, L.H. (3-1/2" dia. x 28-3/4" stroke), G32577 & G32578 loader dump cylinders, gland has solid outer rod wiper - no id ring, Includes: Ref. 26 - 45

1шт.

26

D39692

TUBE

ASSY. - cylinder body, right hand, G32577 & G32578 loader dump cylinders, gland has solid outer rod wiper - no id ring, Includes: Ref. 27

1шт.

26

D39693

TUBE

ASSY. - cylinder body, left hand, G32577 & G32578 loader dump cylinders, gland has solid outer rod wiper - no id ring, Includes: Ref. 27

1шт.

27

D31511

BUSHING

- tube trunnion, G32577 & G32578 loader dump cylinders, gland has solid outer rod wiper - no id ring

2шт.

G32743

GLAND

ASSY., G32577 & G32578 loader dump cylinders, gland has solid outer rod wiper - no id ring, Includes: Ref. 29 - 34

1шт.

29

NSS

NOT SOLD SEPARAT

GLAND - (w/o identification ring) (See Inset B), G32577 & G32578 loader dump cylinders, gland has solid outer rod wiper

1шт.

30

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston (1-3/4 x 2-1/4 x 5/16"), G32577 & G32578 loader dump cylinders, gland has solid outer rod - no id ring

1шт.

Part of SEAL KIT, P/N G32228

1шт.

31

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 7/16"), G32577 & G32578 loader dump cylinders, gland has solid outer rod wiper - no id ring

1шт.

Part of SEAL KIT, P/N G32228

1шт.

32

D27432

SHIM

- piston rod, inner (split type), G32577 & G32578 loader dump cylinders, gland has solid outer rod wiper - no id ring

1шт.

Part of SEAL KIT, P/N G32228

1шт.

33

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up, G32577 & G32578 loader dump cylinders, gland has solid outer rod wiper - no id ring

1шт.

Part of SEAL KIT, P/N G32228

1шт.

34

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8"), G32577 & G32578 loader dump cylinders, gland has solid outer rod wiper - no id ring

1шт.

Part of SEAL KIT, P/N G32228

1шт.

35

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping), G32577 & G32578 loader dump cylinders, gland has solid outer rod wiper - no id ring

1шт.

36

D43387

ROD

ASSY. - piston (1-3/4" dia.) (w/o identification ring), G32577 & G32578 loader dump cylinders, gland has solid outer rod wiper, Includes: Ref. 37 and 38

1шт.

37

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- piston rod (1-1/4" long), G32577 & G32578 loader dump cylinders, gland has solid outer rod wiper - no id ring

1шт.

38

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- piston rod (3/4" long), G32577 & G32578 loader dump cylinders, gland has solid outer rod wiper - no id ring

1шт.

39

D28369

PISTON

- split (rod end) (w/o identification ring), G32577 & G32578 loader dump cylinders, gland has solid outer rod wiper

1шт.

40

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

ASSY. - piston ("V" type), G32577 & G32578 loader dump cylinders, gland has solid outer rod wiper - no id ring

2шт.

Part of SEAL KIT, P/N G32228

1шт.

41

D47208

RING

- center bearing, G32577 & G32578 loader dump cylinders, gland has solid outer rod wiper - no id ring

1шт.

42

D28367

PISTON

- split (bolt end), G32577 & G32578 loader dump cylinders, gland has solid outer rod wiper - no id ring

1шт.

43

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

G32577 & G32578 loader dump cylinders, gland has solid outer rod wiper - no id ring Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

44

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-1/8 x 1-7/8 x 1/8"), G32577 & G32578 loader dump cylinders, gland has solid outer rod wiper - no id ring

1шт.

45

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T., 45deg.), G32577 & G32578 loader dump cylinders, gland has solid outer rod wiper - no id ring

1шт.

G32228

KIT

SEAL KIT - cylinder repair, Includes: Ref. 30 - 34 and 40, G32577 & G32578 loader dump cylinders, gland has solid outer rod wiper - no id ring

1шт.
