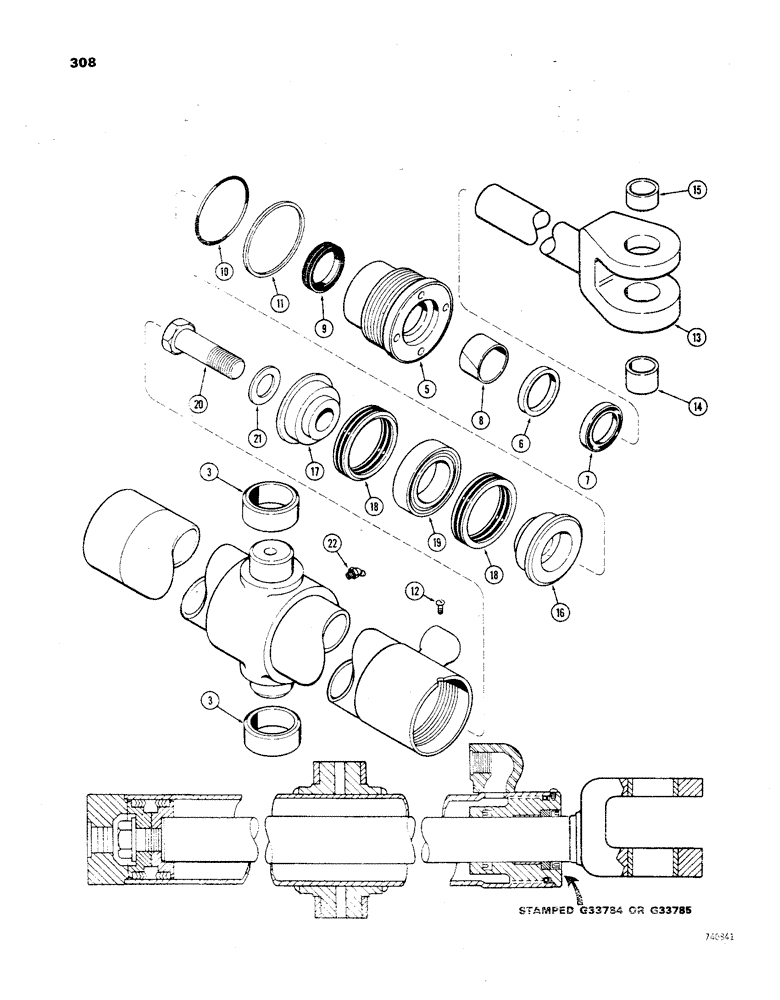

Запчасти Case 850 (308) - G33784 AND G33785 LOADER DUMP CYLINDERS, GLAND IS STAMPED W/ CYLINDER PART NUMBER (07) - HYDRAULIC SYSTEM

1

G33784

CYLINDER BLOCK

CYLINDER - dump, R.H. (3-1/2" dia. x 28-3/4" stroke) Not shown, Includes: Ref. 2 - 22

1шт.

1

G33785

CYLINDER

- dump, L.H. (3-1/2" dia. x 28-3/4" stroke) Not shown, Includes: Ref. 2 - 22

1шт.

2

D39692

TUBE

ASSY. - cylinder body, right hand, Includes: Ref. 3

1шт.

2

D39693

TUBE

ASSY. - cylinder body, left hand, Includes: Ref. 3

1шт.

3

G33786

BUSHING

- tube trunnion

2шт.

G34623

GLAND

ASSY. - (hand stamp for identification), Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

G34600

RING

- center bearing

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16")

1шт.

Part of SEAL KIT, P/N G34624

1шт.

8

PG34621

WASHER

BEARING - center

1шт.

Part of SEAL KIT, P/N G34624

1шт.

9

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 7/16")

1шт.

Part of SEAL KIT, P/N G34624

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of SEAL KIT, P/N G34624

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of SEAL KIT, P/N G34624

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

13

G33787

ROD

ASSY. - piston (1-3/4" dia.), Includes: Ref. 14 and 15

1шт.

14

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- piston rod (1-1/4" long)

1шт.

15

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- piston rod (3/4" long)

1шт.

16

G33520

PISTON

- split (rod end)

1шт.

17

D28367

PISTON

- split (bolt end)

1шт.

18

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

ASSY. - piston ("V" type)

2шт.

Part of SEAL KIT, P/N G34624

1шт.

19

D47208

RING

- center bearing

1шт.

20

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

21

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-1/8 x 1-7/8 x 1/8")

1шт.

22

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T., 45deg.)

1шт.

G34624

SEAL

KIT - cylinder repair, Includes: Ref. 7 - 11 and 18

1шт.
