Запчасти Case 850 (306) - CYLINDER IDENTIFICATION, DOZER TILT CYLINDERS (07) - HYDRAULIC SYSTEM

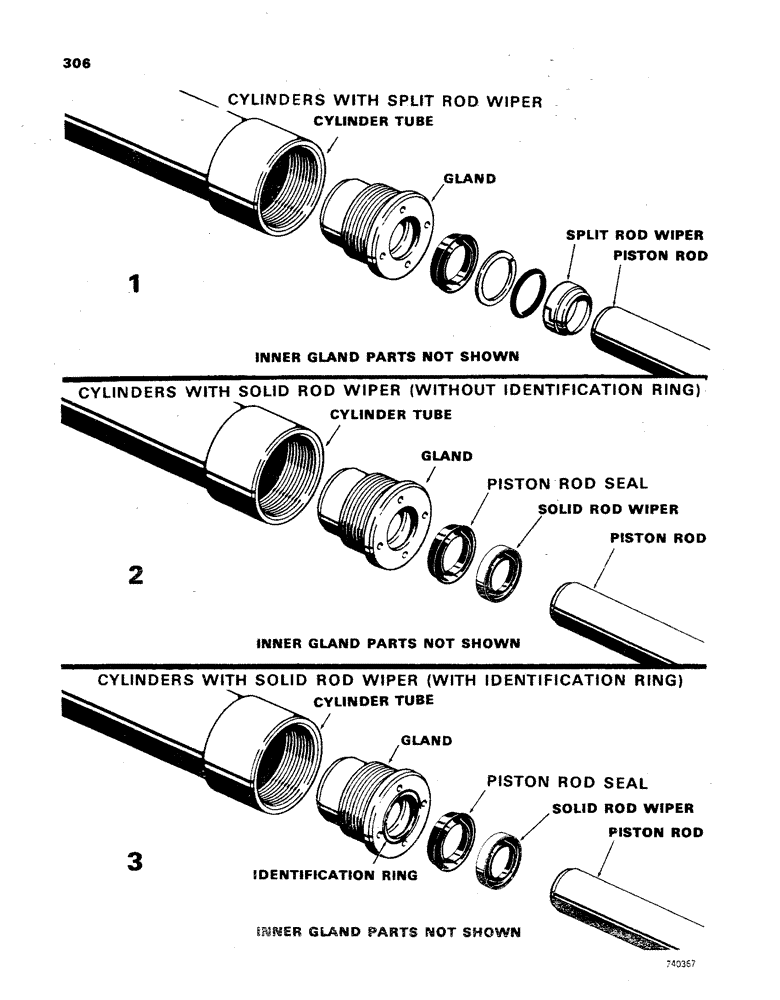

Схема запчастей Case 850 - (306) - CYLINDER IDENTIFICATION, DOZER TILT CYLINDERS (07) - HYDRAULIC SYSTEM
2
3
1

Артикул

Название

Примечание

Количество

1

D46828

CYLINDER

- Angle Tilt Dozer models (Outer rod wiper is split) Parts list Figure 356

2шт.

2

G32623

HYDRAULIC CYLINDER

CYLINDER - Angle Tilt Dozer models (Outer rod wiper is solid) Parts list Figure 354

2шт.

1

D32907

X

CYLINDER - Tilt Dozer models (Outer rod wiper is split) Parts list Figure 352

1шт.

2

G32171

CYLINDER

- Tilt Dozer models (Outer rod wiper is solid) Parts list Figure 350

1шт.

3

G33776

CYLINDER

- Tilt Dozer models (Gland has identification ring and/or is stamped with cylinder part no.) Parts list Figures 348 and 350

1шт.

3

G33714

CYLINDER - R.H. gland has identification ring and/or is stamped with cylinder part no.) Parts list Figures 358 and 360, dozer tilt & pitch

1шт.

3

G33715

CYLINDER - L.H. (Gland has identification ring and/or is stamped with cylinder part no.) Parts list Figures 358 and 360, dozer tilt & pitch

1шт.

1

D39754

CYLINDER - outer rod wiper is split, parts list Figure 366, ripper

1шт.

2

G32580

HYDRAULIC CYLINDER

CYLINDER - outer rod wiper is solid, parts list Figure 364, ripper

1шт.

3

G33511

CYLINDER

- gland has identification ring and/or is stamped with cylinder part no.) Parts list Figures 362 and 364, ripper

1шт.

Выбрано товаров: 10
