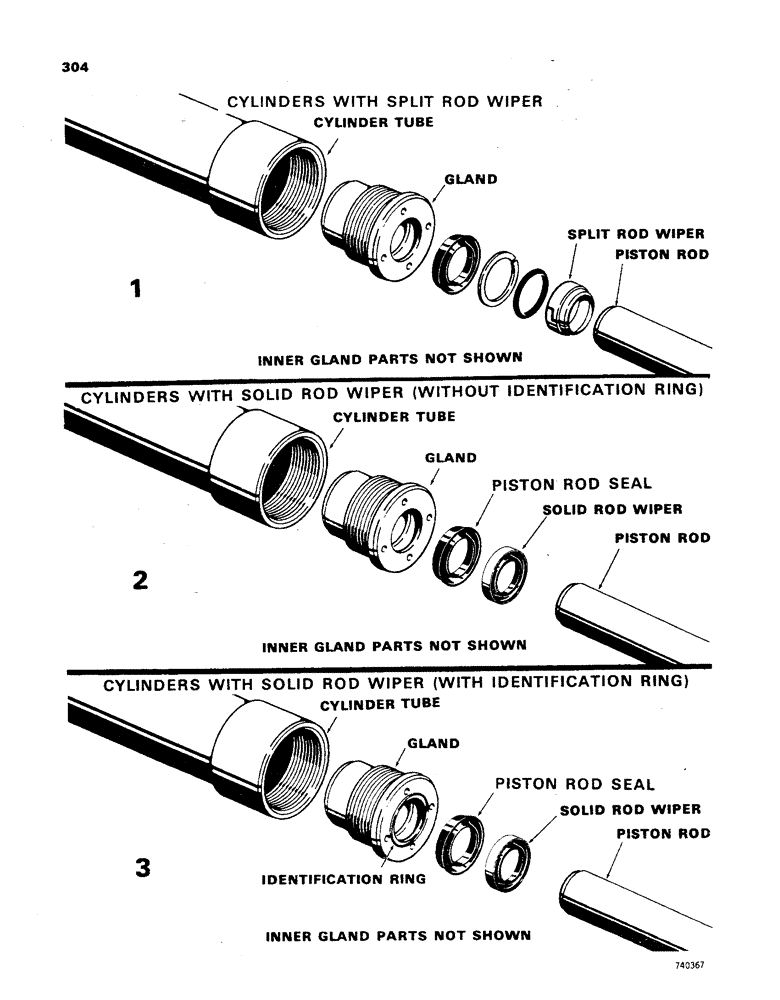

Запчасти Case 850 (304) - CYLINDER IDENTIFICATION, BUCKET CLAM CYLINDERS (07) - HYDRAULIC SYSTEM

A17668

CYLINDER

- 4" I.D., R.H. (See Figure 368 for visual identification) Parts list Figure 368

1шт.

A17669

CYLINDER

- 4" I.D., L.H. (See Figure 368 for visual identification) Parts list Figure 368

2шт.

2

G32672

CYLINDER

- 4" I.D., R.H. (Outer rod wiper is solid) Parts list Figure 370

1шт.

3

G33625

HYDRAULIC CYLINDER

CYLINDER - 4" I.D., R.H. (Gland has identification ring and/ or is stamped with cylinder part no.) Parts list Figure 370

1шт.

2

G32671

CYLINDER

- 4" I.D., L.H. (Outer rod wiper is solid) Parts list Figure 370

1шт.

3

G32624

CYLINDER

- 4" I.D., L.H. (Gland identification ring and/ or is stamped with cylinder part no.) Parts list Figure 370

1шт.

1

D39582

NO LONGER SERVICED

CYLINDER - Angle Dozer models (Outer rod wiper is split) Parts list Figure 346, lift

2шт.

2

G32148

CYLINDER

- Angle Dozer models (Outer rod wiper is solid) Parts list Figure 344, lift

2шт.

1

D48058

CYLINDER ASSY.

CYLINDER - Angle Tilt Dozer models (Outer rod wiper is split) Parts list Figure 346, lift

2шт.

2

G32123

CYLINDER

- Angle Tilt Dozer models (Outer rod wiper is solid) Parts list Figure 344, lift

2шт.

3

G33738

CYLINDER

- Angle Tilt Dozer models (Gland has identification ring and/or is stamped with cylinder part no.) Parts list Figures 340 and 342, lift

1шт.

3

G33713

CYLINDER - Angle Tilt Pitch Dozer models (Parts list Figures 336 and 338), lift

2шт.

1

D39585

CYLINDER - Tilt Dozer models (Outer rod wiper is split) Parts list Figure 346, lift

2шт.

2

G32483

CYLINDER

- Tilt Dozer models (Outer rod wiper is solid) Parts list Figure 344, lift

2шт.

3

G33733

CYLINDER

- Tilt Dozer models (Gland has identification ring and/or is stamped with cylinder part no.) Parts list Figures 340 and 342, lift

2шт.

R19345

CYLINDER

- Angle Tilt Dozer (Parts list Figure 332)

2шт.

1

D32986

CYLINDER

- Angle Dozer (Outer rod wiper is split) Parts list Figure 330

2шт.

2

G32464

CYLINDER

- Angle Dozer (Outer rod wiper is solid) Parts list Figure 328

2шт.

3

G33712

CYLINDER BLOCK

CYLINDER - Angle Tilt Pitch Dozer models (Gland has identification ring) Parts list Figure 334

2шт.
