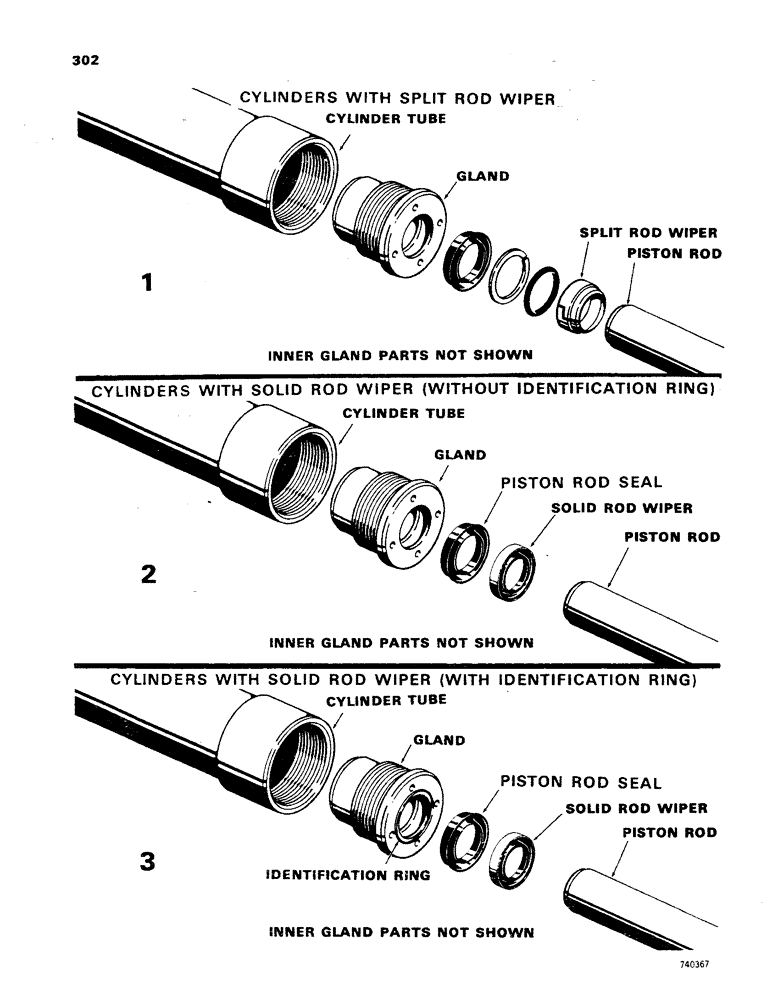

Запчасти Case 850 (302) - CYLINDER IDENTIFICATION, LOADER DUMP CYLINDERS (07) - HYDRAULIC SYSTEM

1

D39694

CYLINDER BLOCK

CYLINDER - R.H. (Outer rod wiper is split) Parts list Figure 312

1шт.

2

G32577

CYLINDER

- R.H. (Outer rod wiper is solid) Parts list Figure 310

1шт.

3

G33784

CYLINDER BLOCK

CYLINDER - R.H. (Gland has identification ring and/or is stamped with cylinder part no.) Parts list Figures 308 and 310

1шт.

1

D39695

CYLINDER ASSY.

CYLINDER - L.H. (Outer rod wiper is split) Parts list Figure 312

1шт.

2

G32578

CYLINDER

- L.H. (Outer rod wiper is solid) Parts list Figure 310

1шт.

3

G33785

CYLINDER

- L.H. (Gland has identification ring and/or is stamped with cylinder part no.) Parts list Figures 308 and 310

1шт.

1

D49526

CYLINDER

- R.H. (Outer rod wiper is split) Parts list Figure 326, loader lift

1шт.

2

G32690

CYLINDER

- R.H. (Outer rod wiper is solid) Parts list Figure 324, loader lift

1шт.

3

G32690

CYLINDER

- R.H. (Gland has identification ring and/or is stamped with cylinder part no.) Parts list Figures 322 and 324, loader lift

1шт.

1

D49527

CYLINDER ASSY.

CYLINDER - L.H. (Outer rod wiper is split) Parts list Figure 326, loader lift

1шт.

2

NLS

NO LONGER SERVICED

CYLINDER - L.H. (Outer rod wiper is solid) Parts list Figure 324, loader lift

1шт.

3

NLS

NO LONGER SERVICED

CYLINDER - L.H. (Gland has identification ring and/or is stamped with cylinder part no.) Parts list Figure 322 and 324, loader lift

1шт.

1

D39748

CYLINDER ASSY.

CYLINDER - outer rod wiper is split, Parts list Figure 320, loader hydra leveling

2шт.

2

G32579

CYLINDER

- outer rod wiper is solid and inner wiper is split, Parts list Figure 318, loader hydra leveling

2шт.

2

G32628

CYLINDER

- outer rod wiper is solid, no inner wiper (Parts list Figure 316), loader hydra leveling

2шт.

3

G33635

CYLINDER

- gland has identification ring and/or is stamped with cylinder part no. (Parts list Figures 314 and 316), loader hydra leveling

2шт.
