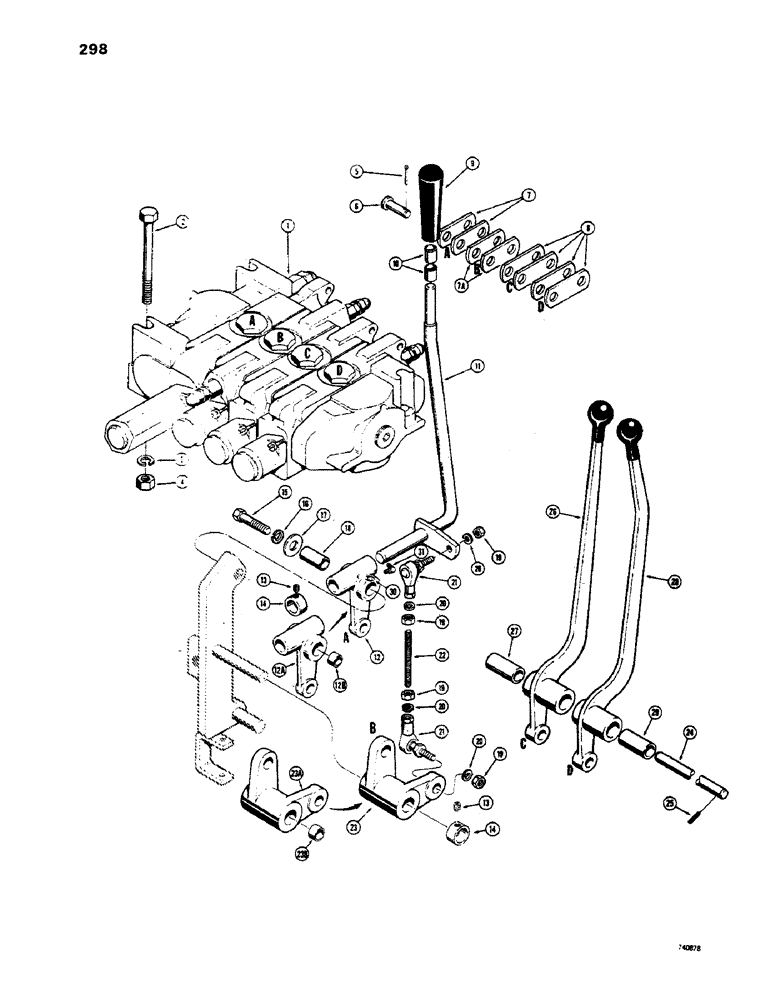

Запчасти Case 850 (298) - LOADER AND DOZER 4 SPOOL CONTROL VALVES AND LEVERS, LOADER VALVES W/ MAGNETIC SPOOL DETENT (07) - HYDRAULIC SYSTEM

1

D48101

VALVE

- equipment control, Power Angle Tilt Dozer with Ripper and Early Production Power Tilt Dozers with Pull Behind (Parts list figure 384) For valve identification, Case #D48101 is on valve I.D. plate

1шт.

1

R24130

VALVE

- equipment control, Late Production Power Tilt Dozers with Dual Pull Behind (Parts list figure 382) For valve identification, Case #R24130 and CS & S #A35-122 are on valve I.D. plate

1шт.

1

R33071

VALVE

- equipment control, Power Tilt Dozers with Dual Pull Behind (For valve identification, Case #R33071 and CS & S #73-10-53 and on valve I.D. plate)

1шт.

1

R24120

VALVE - equipment control, Power Angle Tilt Pitch Dozer with Ripper (Parts list figure 382) For valve identification, Case #24120 and CS & S #A35-123 are on valve I.D. plate

1шт.

1

R30686

VALVE - equipment control, Power Angle Tilt Pitch Dozer (For valve identification Case #R30686 and CS & S #73-10-53 are on valve I.D. plate)

1шт.

1

R33069

VALVE - equipment control, Loader models (CS & S #73-10-53)

1шт.

2

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

3шт.

3

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

3шт.

4

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

3шт.

5

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

8шт.

6

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis

8шт.

7

R22269

LINK

- short, A spool (Loader and Dozer models)

2шт.

7a

R22269

LINK

- short, B spool (Dozer models)

2шт.

7a

D45513

LINK

- short, B spool (Loader models)

2шт.

8

D36230

LEVER

LINK - long, C and D spool (Loader and Dozer models)

4шт.

9

D37550

KNOB

- control lever

1шт.

10

D38662

RING

- spacer

2шт.

11

D40897

LEVER - control, lift and tilt

1шт.

12

D40877

PIVOT

LEVER - pivot (R28101, R24130 and R24120 valves), Includes: Ref. 12B

1шт.

12a

R33282

PIVOT

LEVER - pivot (R33071, R30686 and R33069 valves), Includes: Ref. 12B

1шт.

12b

R30880

BUSHING

- lever

2шт.

13

83-54

SET SCREW,Hex Soc, 5/16"-18 x 1/4", Cup Pt

2шт.

14

D43620

COLLAR

- control lever

2шт.

15

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2" - 20 NF x 2-1/4"

1шт.

16

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

17

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

18

D40893

BUSHING

- D40877 lever

1шт.

18

R33281

BUSHING

- R33282 lever

1шт.

19

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

4шт.

20

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

21

D40908

BALL JOINT

2шт.

22

D40917

STUD

BOLT - stud

1шт.

23

D40930

LEVER - bellcrank (D48101, R24130 and R24120 valves), Includes: Ref. 23B

1шт.

23a

R33283

DIPPER

LEVER - bellcrank (R33071, R30686 and R33069 valves), Includes: Ref. 23B

1шт.

23b

R30880

BUSHING

- lever

2шт.

24

D40920

TERMINAL CONNECTOR

- mounting, lever

1шт.

25

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.

26

D40875

LEVER

- equipment control, Includes: Ref. 27

1шт.

27

D40392

BUSHING

- lever

1шт.

28

D40873

LEVER

- rear equipment control, Includes: Ref. 29

1шт.

29

D40392

BUSHING

- lever

1шт.

30

219-103

FITTING

- grease, straight (1/8" NPT) If used

1шт.

31

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , If used 90º, 1/8" NPT x .84" lg

1шт.
