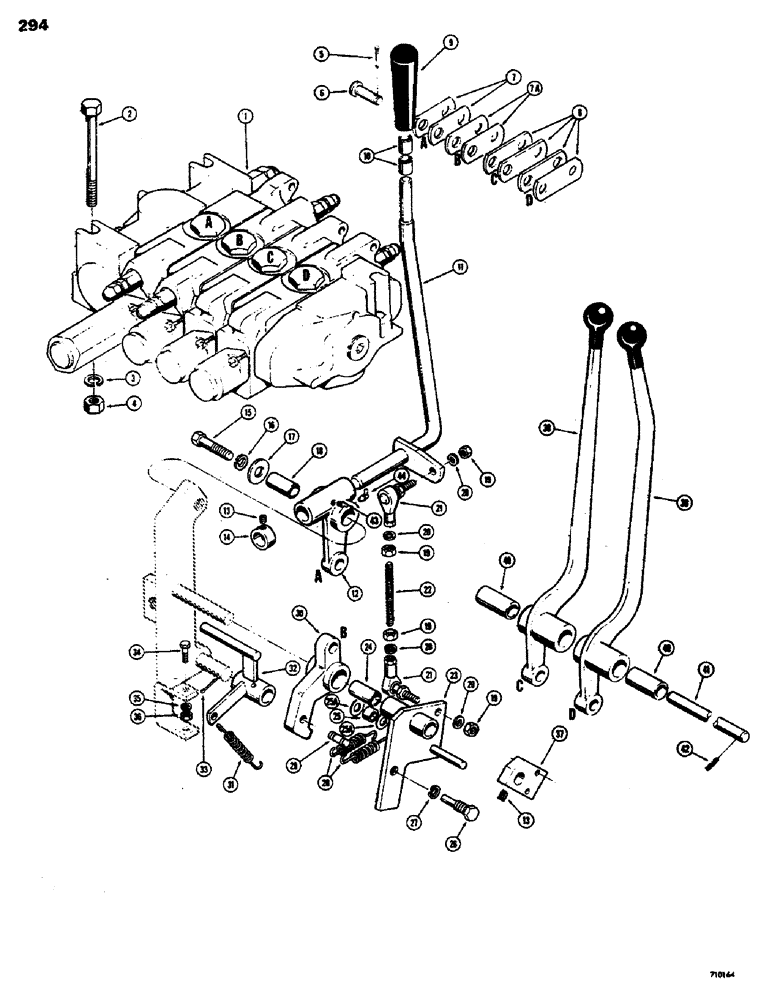

Запчасти Case 850 (294) - LOADER 4 SPOOL CONTROL VALVE AND LEVERS, MODELS WITH LIMIT SWITCH IN LINKAGE (07) - HYDRAULIC SYSTEM

1

D39780

VALVE - loader control (Parts list Figure 380)

1шт.

2

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

3шт.

3

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

3шт.

4

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

3шт.

5

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

8шт.

6

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis

8шт.

7

R22269

LINK

- connecting (Short) "A" spool

2шт.

7a

D45513

LINK

- connecting (Short) "B" spool

2шт.

8

D36230

LEVER

LINK - connecting (Long) "C" and "D" spool

4шт.

9

D37550

KNOB

- control lever

1шт.

10

D38662

RING

BUSHING - spacer

2шт.

11

D40897

LEVER - control

1шт.

12

D40877

PIVOT

LEVER - pivot

1шт.

13

83-54

SET SCREW,Hex Soc, 5/16"-18 x 1/4", Cup Pt

2шт.

14

D43620

COLLAR

- control lever

1шт.

15

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2" - 20 NF x 2-1/4"

1шт.

16

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

17

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

18

D40893

BUSHING

- lever

1шт.

19

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

4шт.

20

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

21

D40908

BALL JOINT

2шт.

22

D40917

STUD

BOLT - stud

1шт.

23

D40885

LEVER - linkage, Includes: Ref. 24

1шт.

24

D40391

BUSHING

- lever

1шт.

25

D44353

BUSHING

SPACER - spring

1шт.

25a

A31197

WASHER

- special

2шт.

26

D40909

BOLT (SPREADER)

BOLT - stop

1шт.

27

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

28

D40889

SPRING

- lever return

2шт.

29

D40901

PIN

- spring anchor

1шт.

30

D40929

LEVER

- linkage

1шт.

31

D40891

SPRING

- latch lever return

1шт.

32

D40881

LATCH ASSY.

LEVER - latch

1шт.

33

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

34

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Detent adjustment) Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

35

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

36

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

37

D40919

PLATE - switch

1шт.

38

D40875

LEVER

- control, clam (Third spool)

1шт.

39

D40873

LEVER

- control, ripper (Fourth spool), Includes: Ref. 40

1шт.

40

D40392

BUSHING

- levers

1шт.

41

NLS

NO LONGER SERVICED

PIN - mounting

1шт.

42

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.

43

219-103

FITTING

- grease, straight (1/8" NPT)

1шт.

44

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.
