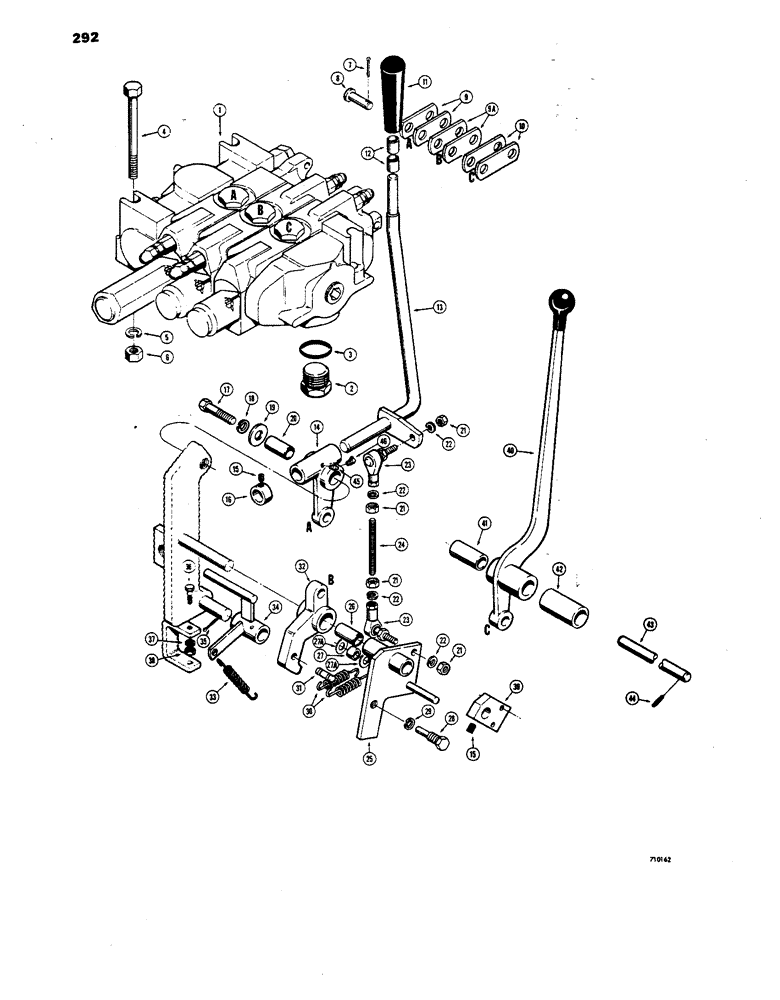

Запчасти Case 850 (292) - LOADER 3 SPOOL CONTROL VALVE AND LEVERS, MODELS WITH LIMIT SWITCH IN LINKAGE (07) - HYDRAULIC SYSTEM

1

D39778

LOCK VALVE

VALVE - hydraulic, loader control (Parts list Figure 380)

1шт.

2

273916

PLUG,Hex, 1-5/16" - 12 ORB

Hydraulic (If used), Includes Ref. 3 Hex Hd, 1 5/16"-12 ORB

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

3шт.

5

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

3шт.

6

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

3шт.

7

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4-6шт.

8

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis

4-6шт.

9

R22269

LINK

- connecting (Short) "A" spool

2шт.

9a

D45513

LINK

- connecting (Short) "B" spool

2шт.

10

D36230

LEVER

LINK - connecting (Long) If used "C" spool

2шт.

11

D37550

KNOB

- control lever

1шт.

12

D38662

RING

BUSHING - spacer

2шт.

13

D40897

LEVER - control, lift and dump

1шт.

14

D40877

PIVOT

LEVER - pivot

1шт.

15

83-54

SET SCREW,Hex Soc, 5/16"-18 x 1/4", Cup Pt

2шт.

16

D43620

COLLAR

- control lever

1шт.

17

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2" - 20 NF x 2-1/4"

1шт.

18

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

19

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

20

D40893

BUSHING

- lever

1шт.

21

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

4шт.

22

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

23

D40908

BALL JOINT

2шт.

24

D40917

STUD

BOLT - stud

1шт.

25

D40885

LEVER - linkage, Includes: Ref. 26

1шт.

26

D40391

BUSHING

- lever

1шт.

27

D44353

BUSHING

SPACER - spring

1шт.

27a

A31197

WASHER

- spacer

2шт.

28

D40909

BOLT (SPREADER)

BOLT - stop

1шт.

29

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

30

D40889

SPRING

- lever return

2шт.

31

D40901

PIN

- spring anchor

1шт.

32

D40929

LEVER

- linkage

1шт.

33

D40891

SPRING

- latch lever return

1шт.

40

D40875

LEVER

- control, clam or ripper (If used)

1шт.

34

D40881

LATCH ASSY.

LEVER - latch

1шт.

35

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

36

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Detent adjustment) Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

37

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

38

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

39

D40919

PLATE - switch

1шт.

41

D40392

BUSHING

- lever (If used)

1шт.

42

D41078

BUSHING

SPACER - lever (If used)

1шт.

43

NLS

NO LONGER SERVICED

PIN - mounting (If used)

1шт.

44

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, , If used 3/16" x 1 1/2", Slotted

1шт.

45

219-103

FITTING

- grease, straight (1/8" NPT)

1шт.

46

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.
