Запчасти Case 850 (290) - EQUIPMENT PRIMARY HYDRAULICS (07) - HYDRAULIC SYSTEM

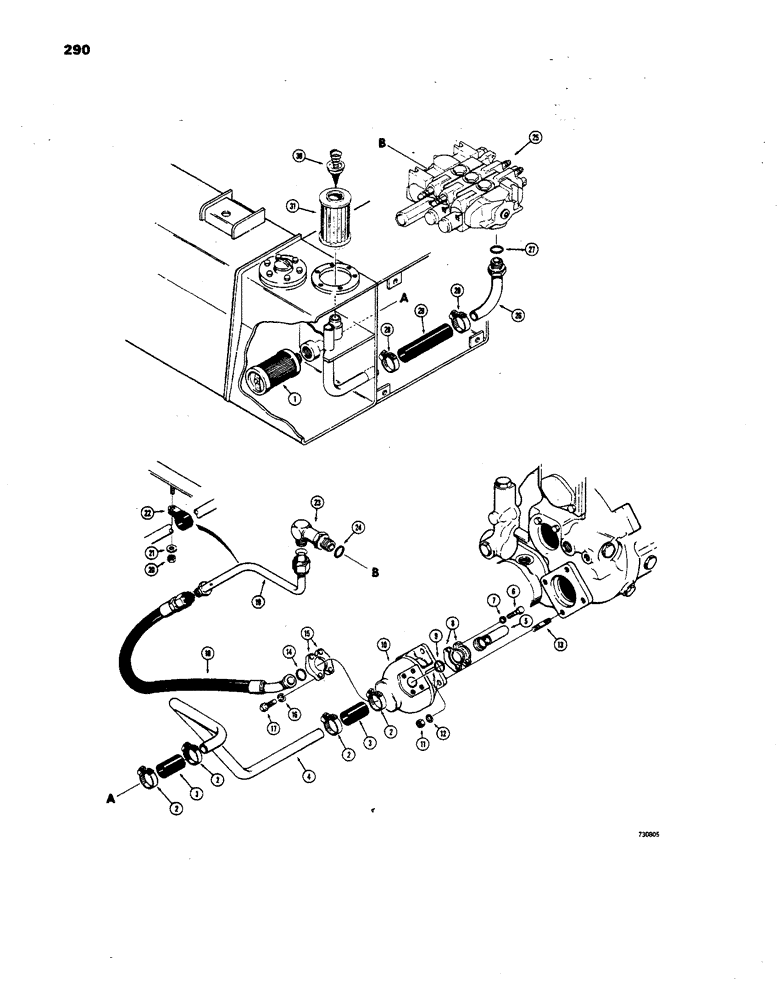

Схема запчастей Case 850 - (290) - EQUIPMENT PRIMARY HYDRAULICS (07) - HYDRAULIC SYSTEM
17
31
22
25
26
2
2
10
3
9
6
19
27
24
8
12
2
23
3
16
1
5
4
15
11
21
14
7
2
38
13

Артикул

Название

Примечание

Количество

1

D33557

FILTER, ELEMENT

FILTER - hydraulic tank, suction line

1шт.

2

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

3

R14169

HOSE

- low pressure

2шт.

4

D39764

TUBE

- tank to pump, suction

1шт.

5

D35993

FITTING

STEM - hose, 90deg.

1шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

7

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

8

A14157

FLANGE

- split

2шт.

9

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, pump inlet

1шт.

10

REF

INSTRUCTION

PUMP - hydraulic, (See Figures 372 and 374 for proper pumps)

1шт.

11

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

12

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

13

D45312

STUD

- special, pump mounting

4шт.

14

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O" ring, pump outlet

1шт.

15

A12301

CLAMP,Half

- split

2шт.

16

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

4шт.

17

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

18

R21782

HOSE

- special, pump to valve (34-1/2" long)

1шт.

19

D46842

TUBE

-, Serial Range: pump-valve

1шт.

20

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

21

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

22

49789

CLAMP

- tube

1шт.

23

R20720

FITTING

ELBOW - adjustable, 90deg. (Special), Includes: Ref. 24

1шт.

24

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

25

REF

INSTRUCTION

VALVE - equipment control (See figure 292 thru 298 for proper valve)

1шт.

26

D39762

TUBE - valve to hydraulic tank, Includes: Ref. 27

1шт.

27

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

28

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

29

D40107

HOSE

- low pressure

1шт.

30

L51620

VALVE

- pressure relief

1шт.

31

D35995

STRAINER ELEMENT

FILTER - hydraulic tank, return line

1шт.

Выбрано товаров: 31
