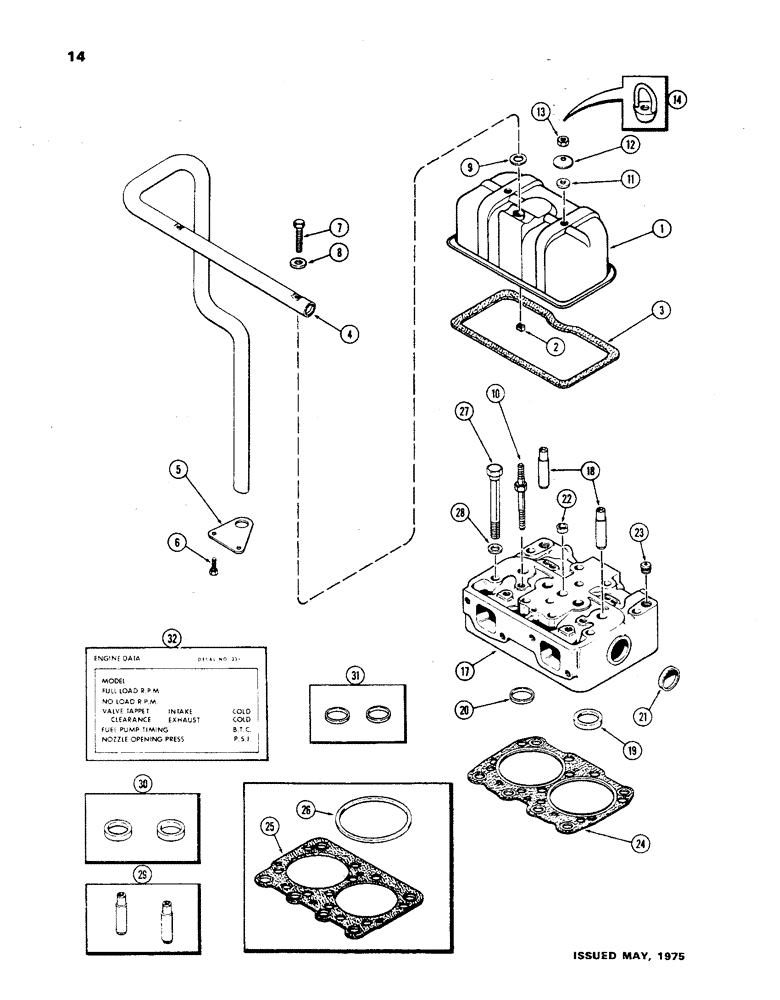

Запчасти Case 850 (014) - CYLINDER HEAD AND COVER, (301 BD) DIESEL ENGINE (01) - ENGINE

1

A58929

COVER

ASSY. - cylinder head, Includes: Ref. 2

2шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - (1/4" N. C. Tinnerman)

1шт.

3

A65734

CYLINDER HEAD GASKET

- cover to head (Replaces A58928)

2шт.

4

A58733

TUBE

- breather

1шт.

5

A58734

BRACKET

- breather tube support (at oil pan)

1шт.

6

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - (3/8 x 1-1/2" N.C.)

2шт.

7

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

Breather tube Hex, 1/4"-20 x 2 1/2", G5

2шт.

8

A34133

GASKET

- tube (9/32 x 1/2 x 3/64" fiber)

2шт.

9

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- tube, lower (11/16 x 1-1/4 x 1/4")

2шт.

10

A67121

STUD

- cover & rocker arm brkt. (7/16" N.C. x 6-1/6")

4шт.

11

A23684

GASKET

GASKET - cover stud (15/32 x 7/8 x 1/8" rubber)

4шт.

12

A23683

WASHER

- cover stud (dished)

4шт.

13

25-107

NUT,7/16"-14, G5

- cover stud (7/16" N.C. hex.)

2шт.

14

A60567

EYE

- engine lifting

2шт.

17

A66441

HEAD

ASSY. - cyl. (Casting #A61252) (Rpl. A58867), Includes: Ref. 18 - 22

2шт.

18

NSS

NOT SOLD SEPARAT

GUIDE - valve stem (order ref. 29)

4шт.

19

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (order ref. 30)

2шт.

20

NSS

NOT SOLD SEPARAT

INSERT - intake valve seat (order ref. 31)

2шт.

21

A34124

PLUG,Cup, 1 5/8", Stainless

- (1-5/8" cup type)

2шт.

22

A58620

PLUG,Cup, 3/4", Stainless

- (3/4" cup type)

3шт.

23

221-1843

PLUG

- (3/8" P.T. hex. socket head)

4шт.

24

A138121

GASKET

- cyl. head w/fire ring (Rpl. A64105, A62216 & A59094) (1st used eng. ser. no. 2553872)

2шт.

25

A62216

GASKET

- cylinder head (Order A138121) (Req. fire rings) (Used prior to eng. ser no. 2553872)

2шт.

26

A59095

GASKET

RING - fire (Std.) (1/16") (Used w/A62216 Gasket)

4шт.

26

A42595

GASKET

RING - fire (Oversize) (5/64" thick w/blue stripe) (Used w/A62216 gasket)

4шт.

27

A62732

STEP BOLT

BOLT - (5/8 x 5-5/8" N.C. hex.) (Replaces A58630)

20шт.

28

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - (5/8 x 1 x 3/16")

20шт.

29

A41781

GUIDE

KIT - valve stem (Set of 2)

4шт.

30

A44010

INSERT

KIT - exhaust valve seat (Set of 2) (Replaces A57485)

2шт.

31

A42761

INSERT

KIT - intake valve seat (Set of 2)

2шт.

32

321-2303

DECAL - engine data (Loader Models) (1st used eng. ser. no. 2504211)

1шт.

32

321-2302

DECAL - engine data (Dozer Models) (1st used eng. ser. no. 2504221) (after trans. ser. no. 7074491 use 321-2303 decal)

1шт.

32

321-1381

DECAL - engine data (Loader Models) (Used prior to eng.l ser. no. 2504221)

1шт.

32

321-1380

DECAL - engine data (Dozer Models) (Used prior to eng. ser. no. 2504221)

1шт.
