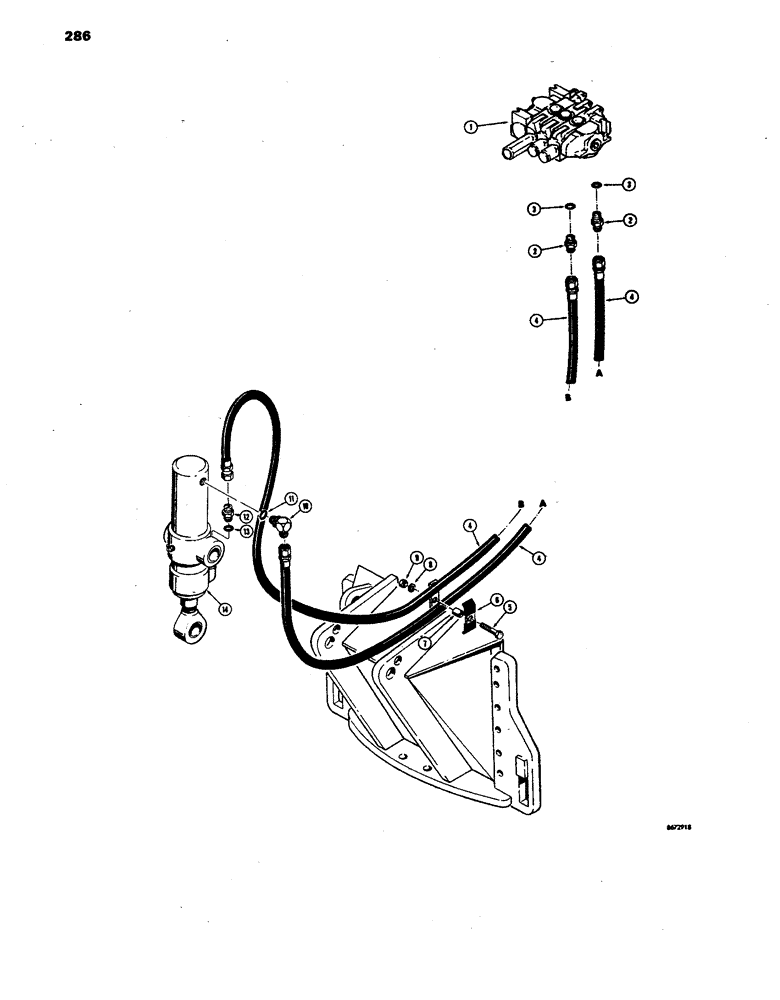

Запчасти Case 850 (286) - RIPPER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - equipment control (See figures 292 thru 296 for proper valve)

1шт.

2

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - tube, straight, Includes: Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

D39883

HOSE

- valve to ripper (53" long)

2шт.

5

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

6

D33316

CLAMP

- hose

1шт.

7

D33554

BUSHING

SPACER - hose clamp

1шт.

8

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

9

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

10

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 deg. (Closed end), Incl. Ref. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

12

NLS

NO LONGER SERVICED

CONNECTOR - adjustable, restrictor (Rod end), Includes: Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

REF

INSTRUCTION

CYLINDER - ripper (See figure 306 for cylinders)

1шт.
