Запчасти Case 850 (276) - POWER ANGLE TILT PITCH DOZER HYDRAULICS, TILT PITCH CIRCUIT- DIVERSION VALVE TO CYLINDERS (07) - HYDRAULIC SYSTEM

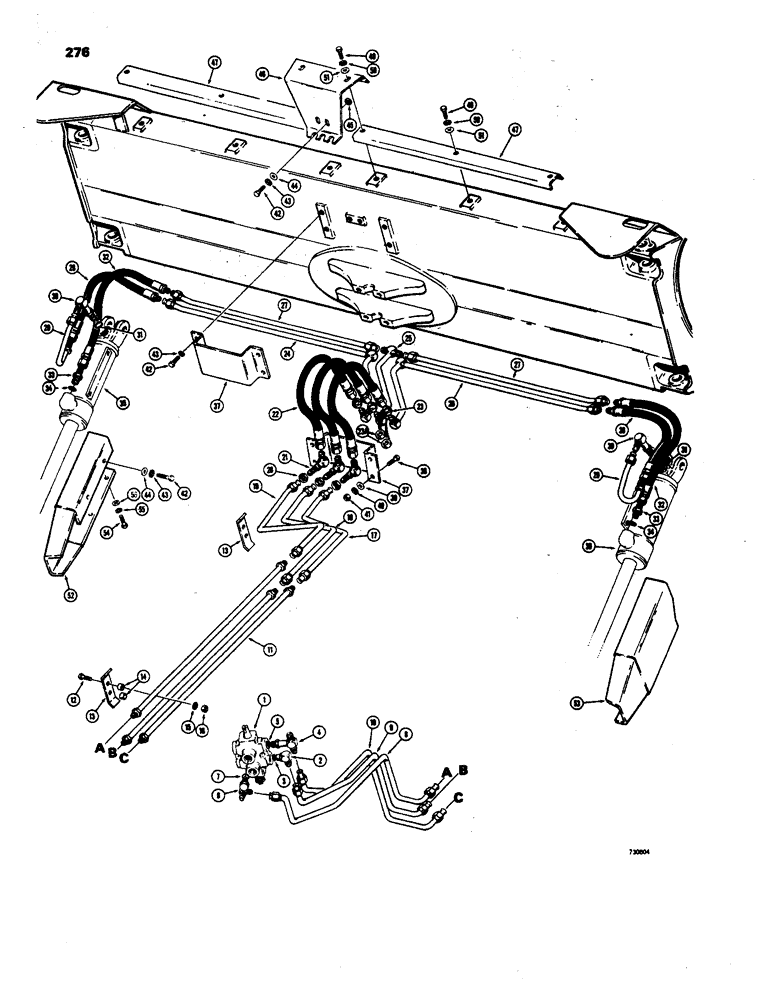

Схема запчастей Case 850 - (276) - POWER ANGLE TILT PITCH DOZER HYDRAULICS, TILT PITCH CIRCUIT- DIVERSION VALVE TO CYLINDERS (07) - HYDRAULIC SYSTEM
34
21
55
1
43
47
43
50
41
22
14
51
37
17
32
10
32
5
7
44
42
33
54
2
13
52
46
25
14
45
29
4
42
43
12
3
27
42
44
13
18
24
8
31
11
33
47
27
15
5
54
34

Артикул

Название

Примечание

Количество

1

R24819

VALVE

- diversion (Parts list Figure 274)

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable, Includes: Ref. 3 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

R30320

TEE - special, Includes: Ref. 5

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

6

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- adjustable, male, Includes: Ref. 7

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

8

R30333

TUBE - at valve, upper port

1шт.

9

R30331

TUBE - valve, lower port

1шт.

10

R30329

O-RING

TUBE - at valve, crossover port

1шт.

11

R30321

TUBE

- intermediate

3шт.

12

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

4шт.

13

R27400

CLAMP

- tube

2шт.

14

R29842

SPACER,3/8" Pipe x .469"

- tube

4шт.

15

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

16

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

17

R30335

TUBE - front, outer (R.H.)

1шт.

18

R30337

TUBE

- front, inner

1шт.

19

R30339

TUBE - front, outer (L.H.)

1шт.

20

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

3шт.

21

R29758

FITTING

ELBOW - 90deg., bulkhead

3шт.

22

R31442

HOSE

- tractor to moldboard (46" long)

3шт.

23

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

3шт.

23a

D35268

SHIM,1/32" Thk

Washer, Special 1/32" Thk

6шт.

24

R30370

TUBE - moldboard, lower (L.H.)

1шт.

25

R30362

TUBE - tee

1шт.

26

R30371

TUBE - moldboard, lower (R.H.)

1шт.

27

R30364

TUBE - moldboard, upper (L.H. and R.H.) 0.5" OD x 41" L

2шт.

28

R34075

HOSE - cylinder, eye end (14" long)

2шт.

29

D52135

TUBE

- cylinder, eye end

2шт.

30

D52137

FITTING

ELBOW - male, 90deg., Includes: Ref. 31

2шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

32

R34076

HOSE

- cylinder, rod end (21-1/2" long)

2шт.

33

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- male, straight, Incl. Ref 34 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

35

REF

INSTRUCTION

CYLINDER - tilt and pitch, L.H. (See figure 306 for cylinders)

1шт.

36

REF

INSTRUCTION

CYLINDER - tilt and pitch, R.H. (See figure 306 for cylinders)

1шт.

37

R29803

GUARD - hydraulic fittings (Grill and moldboard)

2шт.

38

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

39

195-33

WASHER,1/2"

- flat () 1/2"

4шт.

40

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

41

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

42

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

10шт.

43

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

10шт.

44

195-33

WASHER,1/2"

- flat () 1/2"

6шт.

45

R29805

SPACER - guard

2шт.

46

R30297

GUARD - hydraulic, center of blade

1шт.

47

R30136

GUARD - hydraulic, channel

2шт.

48

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

2шт.

49

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

4шт.

50

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

6шт.

51

195-33

WASHER,1/2"

- flat () 1/2"

6шт.

52

R24831

GUARD - tilt cylinder, L.H.

1шт.

53

R24832

GUARD - tilt cylinder, R.H.

1шт.

54

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

55

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

56

195-33

WASHER,1/2"

- flat () 1/2"

4шт.
