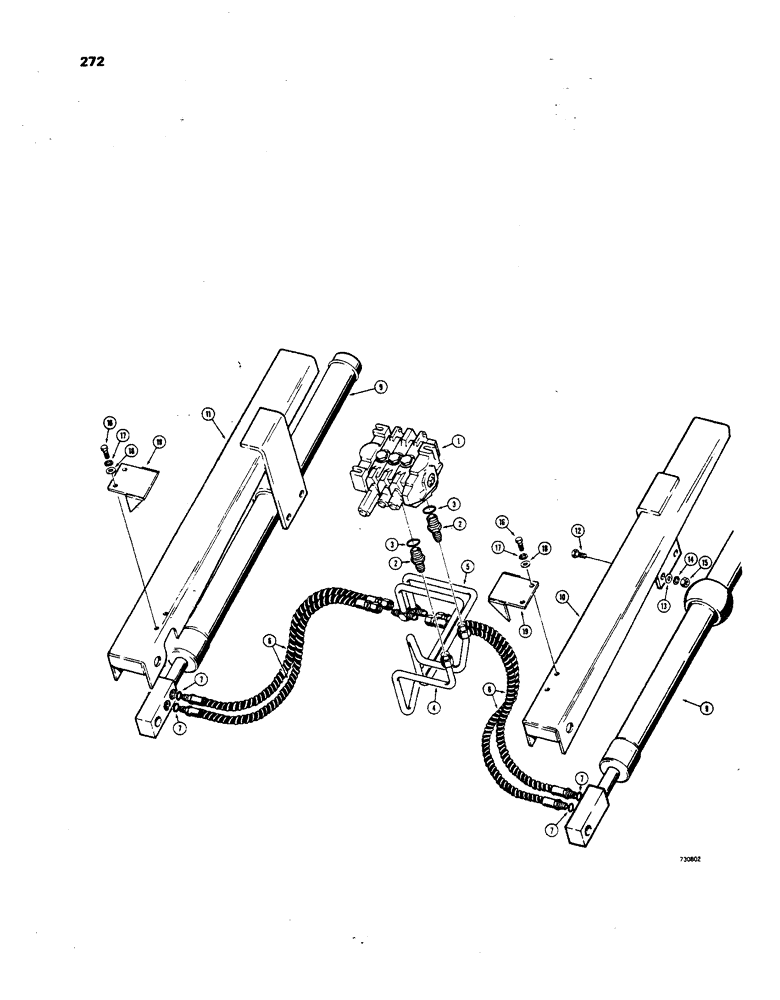

Запчасти Case 850 (272) - PWR ANGLE TILT PITCH DOZER HYD, ANGLING CIRCUIT, USED BEF. TRAC. S/N 7074906 & AFT. (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - equipment control (See figures 296 and 298 for proper valve)

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

D45916

PIPE

TUBE -, Serial Range: valve-cylinders

1шт.

5

D45914

PIPE

TUBE -, Serial Range: valve-cylinders

1шт.

6

R30875

HOSE

- valve to cylinders (48" long), Includes: Ref. 7

4шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

G33712

CYLINDER BLOCK

CYLINDER - angle (See Figure 304 for cylinders)

2шт.

10

R30241

GUARD - angle cylinder, R.H.

1шт.

11

R30240

GUARD - angle cylinder, L.H.

1шт.

12

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

13

195-33

WASHER,1/2"

- flat () 1/2"

4шт.

14

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

15

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

16

13-16

DISC

HHCS - 1/2" - 13 NC x 1"

4шт.

17

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

18

195-33

WASHER,1/2"

- flat () 1/2"

4шт.

19

R30309

GUARD - cylinder

2шт.
