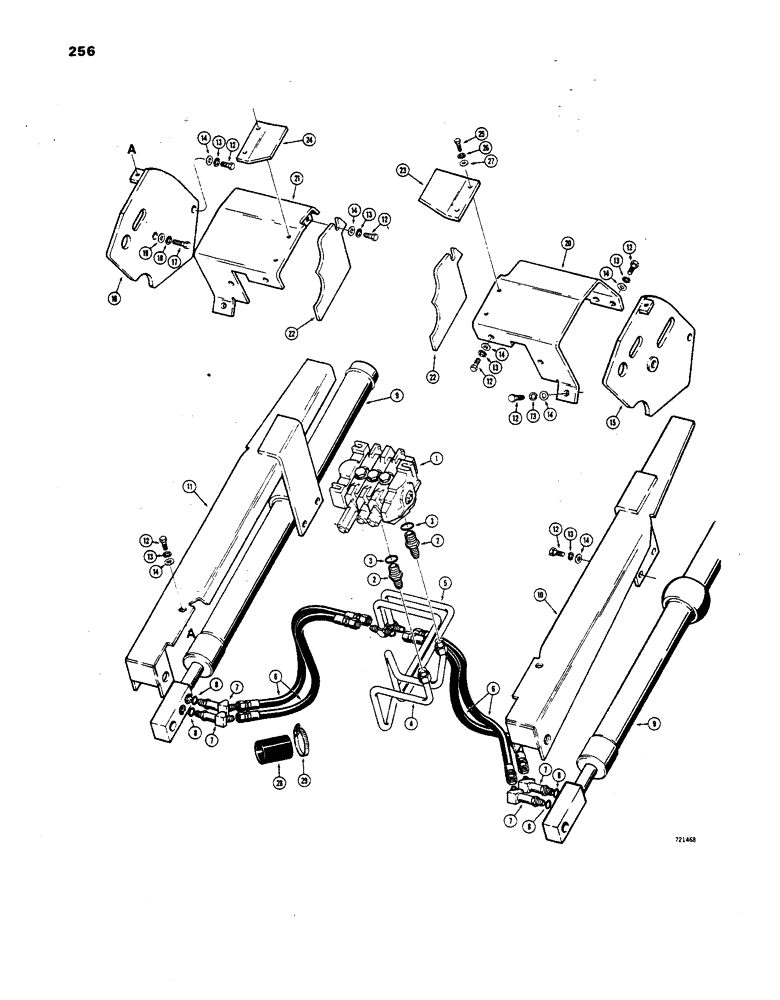

Запчасти Case 850 (256) - POWER ANGLE TILT PITCH DOZER HYDRAULICS, ANGLING CIRCUIT, USED BEFORE TRAC. S/N 7074906 (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - equipment control (See figures 296 and 298 for proper valve)

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

D45916

PIPE

TUBE -, Serial Range: valve-cylinders

1шт.

5

D45914

PIPE

TUBE -, Serial Range: valve-cylinders

1шт.

6

D20358

HOSE

- valve to cylinders (46" long)

4шт.

7

D52139

ELBOW

- special, Includes: Ref. 8

4шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

REF

INSTRUCTION

CYLINDER - angle (See figure 304 for cylinders)

2шт.

10

D52325

GUARD - angle cylinder, R.H.

1шт.

11

D52326

GUARD - angle cylinder, L.H.

1шт.

12

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

18шт.

13

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

18шт.

14

195-33

WASHER,1/2"

- flat () 1/2"

18шт.

15

D51164

GUARD - hose, R.H. lower

1шт.

16

D51165

GUARD - hose, L.H. lower

1шт.

17

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

18

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

19

195-33

WASHER,1/2"

- flat () 1/2"

2шт.

20

R24822

GUARD - hose, R.H. center

1шт.

21

R24823

GUARD - hose, L.H. center

1шт.

22

R24825

PLATE - backing

2шт.

23

D51160

GUARD - hose, R.H. upper

1шт.

24

D51161

GUARD - hose, L.H. upper

1шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

26

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

27

195-25

WASHER,3/8"

- flat () 3/8"

4шт.

28

R25499

SHIELD - hose

1шт.

29

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- screw type #36, 1.81/2.75 Type F Worm

1шт.
