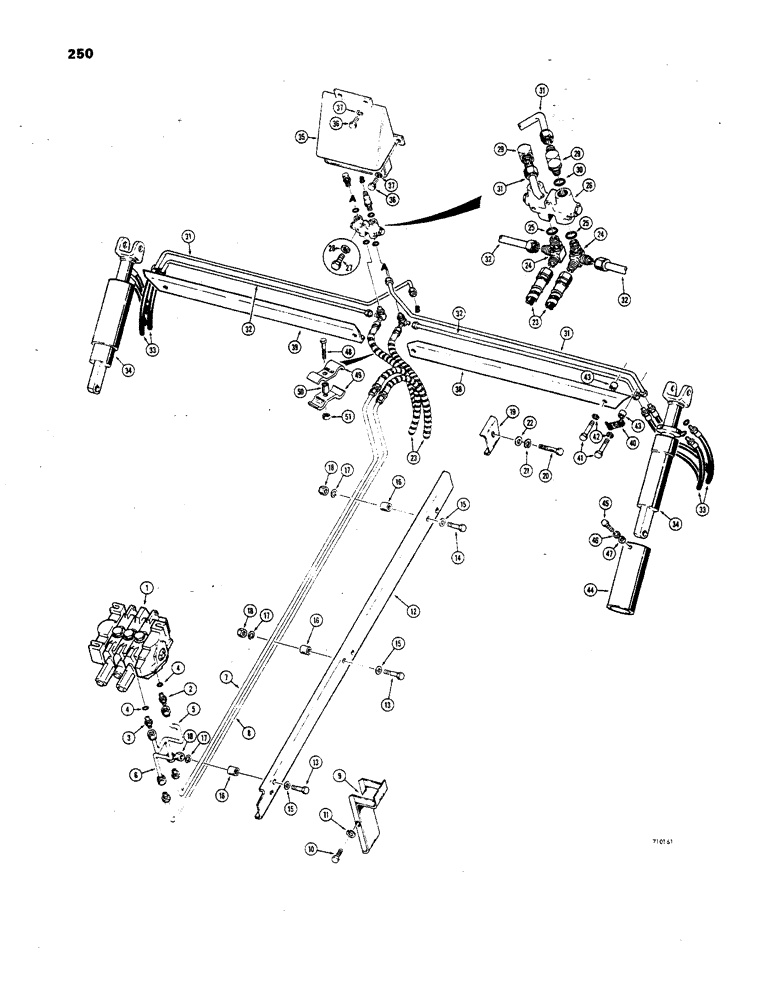

Запчасти Case 850 (250) - POWER ANGLE TILT DOZER HYDRAULICS, TILT CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - equipment control (See figures 296 and 298 for proper valve)

1шт.

2

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male

1шт.

3

D45321

ADAPTER

- special, Includes: Ref. 4

1шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring (D45321 and 218-5078 adapter)

1шт.

5

D45918

TUBE

- at valve, short

1шт.

6

D45920

TUBE

- at valve, short

1шт.

7

D45425

TUBE

- upper, long

1шт.

8

D45423

TUBE

- lower, long

1шт.

9

D45550

GUARD ASSY.

GUARD - upper, short

1шт.

10

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

2шт.

11

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

12

D45132

GUARD ASSY.

GUARD - lower, long

1шт.

13

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

14

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

15

195-33

WASHER,1/2"

- plain () 1/2"

3шт.

16

D44228

BUSHING

SPACER - guard

3шт.

17

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

3шт.

18

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

3шт.

19

D45433

GUARD - at radiator wrapper

1шт.

20

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

21

92-82

WASHER - med. sect. lock (1/2")

1шт.

22

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

23

D45114

HOSE

- tube to relief valve (45-1/2" long)

2шт.

24

D47785

FITTING

ELBOW - special, Includes: Ref. 25

2шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

26

D47256

VALVE

- check (Parts list figure 376)

1шт.

27

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

3шт.

28

92-5

LOCK WASHER,5/16"

med sect. 5/16"

3шт.

29

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- male, 90deg., Includes: Ref. 30

2шт.

30

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

31

D46993

TUBE

- valve to cylinder, upper

2шт.

32

D46995

TUBE

- valve to cylinder, lower

2шт.

33

D28081

HOSE

- at cylinders (22" long)

4шт.

34

REF

INSTRUCTION

CYLINDER - tilt (See figure 306 for cylinders)

2шт.

35

D47793

NO LONGER SERVICED

GUARD - valve, diversion

1шт.

36

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

4шт.

37

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

38

D47790

COVER

GUARD - tube, R.H.

1шт.

39

D47789

COVER

GUARD - tube, L.H.

1шт.

40

31665

COLLAR CLAMP

CLAMP - tube

2шт.

41

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

42

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

6шт.

43

D44228

BUSHING

SPACER - tube

6шт.

44

D42529

GUARD

- cylinder rod

2шт.

45

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

46

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

6шт.

47

195-25

WASHER,3/8"

- flat () 3/8"

6шт.

48

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" -16 NC x 1-1/2"

1шт.

49

R15257

CLAMP

- hose

2шт.

50

D34242

SPACER

- clamp

1шт.

51

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

1шт.
