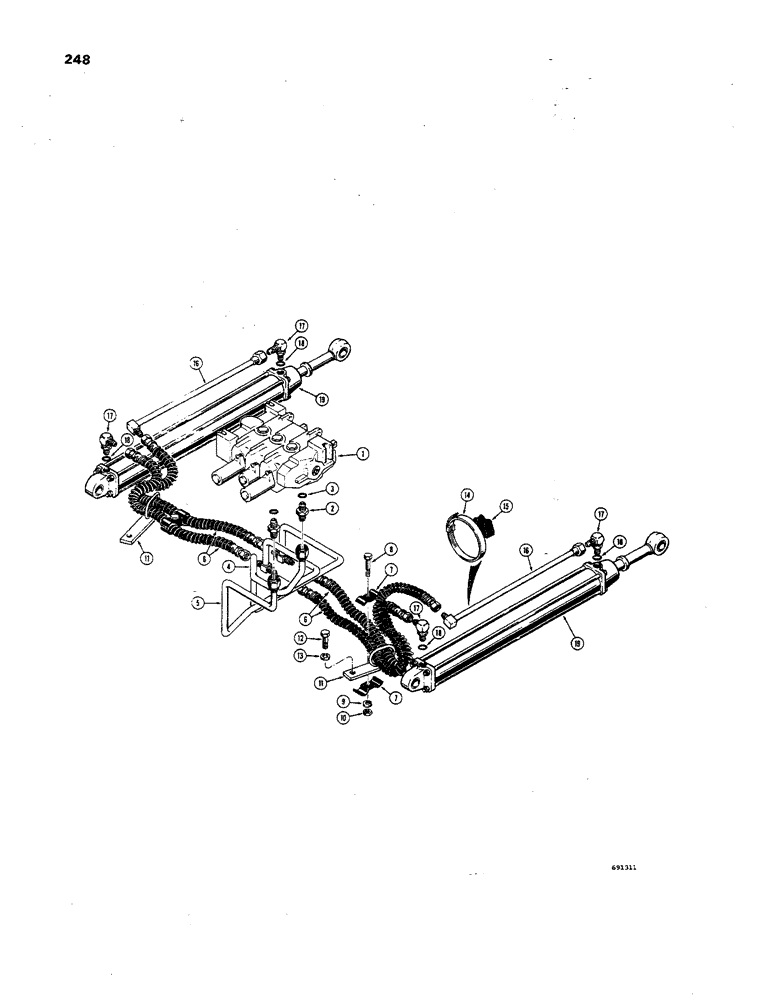

Запчасти Case 850 (248) - POWER ANGLE TILT DOZER HYDRAULICS, ANGLING CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - equipment control (See figures 296 and 298 for proper valve)

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight male, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

D45914

PIPE

TUBE -, Serial Range: valve-cylinders

1шт.

5

D45916

PIPE

TUBE -, Serial Range: valve-cylinders

1шт.

6

D47246

HOSE

- valve to cylinders (51" long)

4шт.

7

R15257

CLAMP

- hose

2шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

9

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

10

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

11

D40386

GUIDE - hose

2шт.

12

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

13

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube

2шт.

15

D38648

BLOCK

SADDLE - rubber

2шт.

16

D47247

TUBE

-, Serial Range: valve-cylinder

2шт.

17

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 deg., Incl. Ref. 18

4шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

19

R19345

CYLINDER

- angle (See Figure 304 for cylinders)

2шт.
